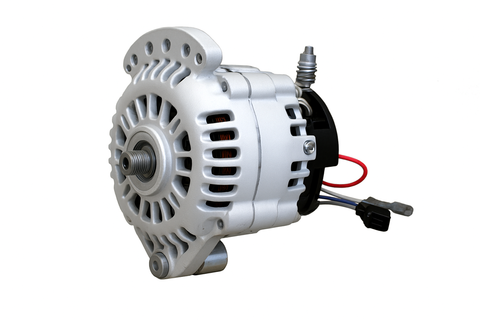

Balmar 24V 70A 621 Series Alternator, Single Foot Mount, Isolated Ground (No Pulley)

High-Output 24V 70A Isolated Ground Alternator for Marine and Off-Grid Power

The Balmar 621 Series 24V 70A Alternator (SKU: B-621-24-70-SP) is a compact, high-output alternator for marine and off-grid applications where reliable DC power generation is critical. Featuring a 1in or 2in (approx. 25.4mm or 50.8mm) single foot mounting configuration and an isolated ground design, this high-output alternator provides a robust charging upgrade over standard factory units. Whether you are managing auxiliary battery banks on a cruising vessel or an off-grid vehicle, the 621 Series delivers consistent amperage to keep essential systems running smoothly.

Why Choose an Isolated Ground Architecture?

Standard automotive alternators typically use the alternator case as the negative return path, which connects directly to the engine block. In marine environments—particularly on steel, aluminium, or composite vessels—this can introduce stray current corrosion and electrical interference. The isolated ground architecture of the B-621-24-70-SP completely separates the electrical ground from the alternator chassis via dedicated positive and negative terminals. This design reduces the risk of galvanic corrosion, protects sensitive onboard electronics, and ensures a clean, dedicated return path directly to your battery bank or main busbar.

Customisable Drive Configuration (Supplied Without Pulley)

Please note that this unit is supplied without a pulley, allowing system builders and marine electricians to select the exact drive interface required for their specific engine and belt setup. It accepts several optional 17mm bore pulley styles to match V-belt or multi-rib serpentine systems:

• B-61-0020: Pulley, Dual V 2.7in x 1/2in (approx. 68.6mm x 12.7mm) Deep V, 17mm Bore
• B-61-0070: Pulley, K-6 2.45in (approx. 62.2mm) Serpentine 6-Rib, 17mm Bore
• B-1310: Pulley, K-8 2.4in (approx. 61.0mm) Serpentine 8-Rib, 17mm Bore, Short (Standard)

Designed for Recreational Applications

Upgrading to a dedicated high-output 24V alternator reduces the engine runtime required to replenish discharged house batteries. Balmar designs its 6-Series alternators for recreational applications and describes them as ideal for modest charging upgrades. For 24V applications, Balmar specifies a Max Charge multi-stage regulator. Set the regulator to suit your battery type.

Key Features and Benefits

• 70A Output at 24V: Delivers substantial charging current for large 24V auxiliary and house battery banks, reducing generator or main engine run times.
• Isolated Ground Design: Dedicated negative terminal prevents stray current through the engine block, mitigating hull corrosion risks in marine installations.
• Single Foot Mounting: Spindle foot design for 1in Motorola-style or 2in Delco-style brackets. Balmar lists the 1in Motorola-style mount as typical for Westerbeke, Lehman, Hino and Pathfinder engines, and the 2in Delco-style mount as typical for Volvo Penta, John Deere, Perkins, Mercruiser and other GM-based engines.
• Flexible Pulley Selection: Supplied bare (no pulley) to suit 17mm bore pulleys, enabling precise matching to Dual V, 6-rib, or 8-rib serpentine belt drives.
• Dual Fan Cooling: Compact, small-case 6-Series design with dual fan cooling and a high airflow frame.

Upgrade Your 24V Charging System

Configure your ideal engine-driven charging solution with the 621 Series 24V 70A Isolated Ground Alternator. Select your compatible 17mm bore pulley and integrate this alternator into your vessel or off-grid vehicle today for dependable, isolated-ground power generation.
