CZone Meter Interface with Seal and Plug

Centralised AC and DC Power Monitoring for Digital Switching Systems

The CZone Meter Interface is a dedicated monitoring module engineered to bridge external AC and DC power sensors directly into your CZone digital switching network. Designed for complex marine, RV, and specialist vehicle electrical systems, this interface processes critical electrical measurements and broadcasts the data across your network. By consolidating your power monitoring into a single interface, it eliminates the clutter of multiple standalone analogue gauges and provides accurate, real-time system visibility from your connected CZone displays or compatible marine multifunction displays.

Comprehensive Electrical and Battery Telemetry

Managing off-grid and mobile energy requires precise data across both alternating and direct current systems. The Meter Interface accepts inputs from external current transformers, shunts, and voltage sensors to deliver a complete overview of your onboard power generation and consumption. Unlike basic monitoring setups that only track voltage, this module calculates real-time AC power in kilowatts (kW) and tracks DC battery bank capacity in both Amp-hours (Ah) and percentage of charge remaining.

To reduce the risk of unexpected power loss or equipment damage, the unit features user-definable high and low alarm thresholds. Whether you need an alert for low house battery voltage, excessive AC generator load, or shore power fluctuations, the system actively flags readings that fall outside your selected safe operating limits.

Key Features and Capabilities

• Multi-Channel Monitoring: Processes inputs for both AC and DC voltage and current (Amps), allowing simultaneous tracking of shore power, generators, inverters, and battery banks.
• Advanced Battery Metrics: Calculates and displays DC battery capacity in Amp-hours (Ah) and percentage remaining for accurate state-of-charge management.
• AC Power Calculation: Measures AC power output and consumption in kilowatts (kW) to help manage heavy onboard appliances and generator loads.
• Customisable Safety Alarms: Configurable high and low alarm parameters provide automated warnings on your display before critical electrical faults occur.

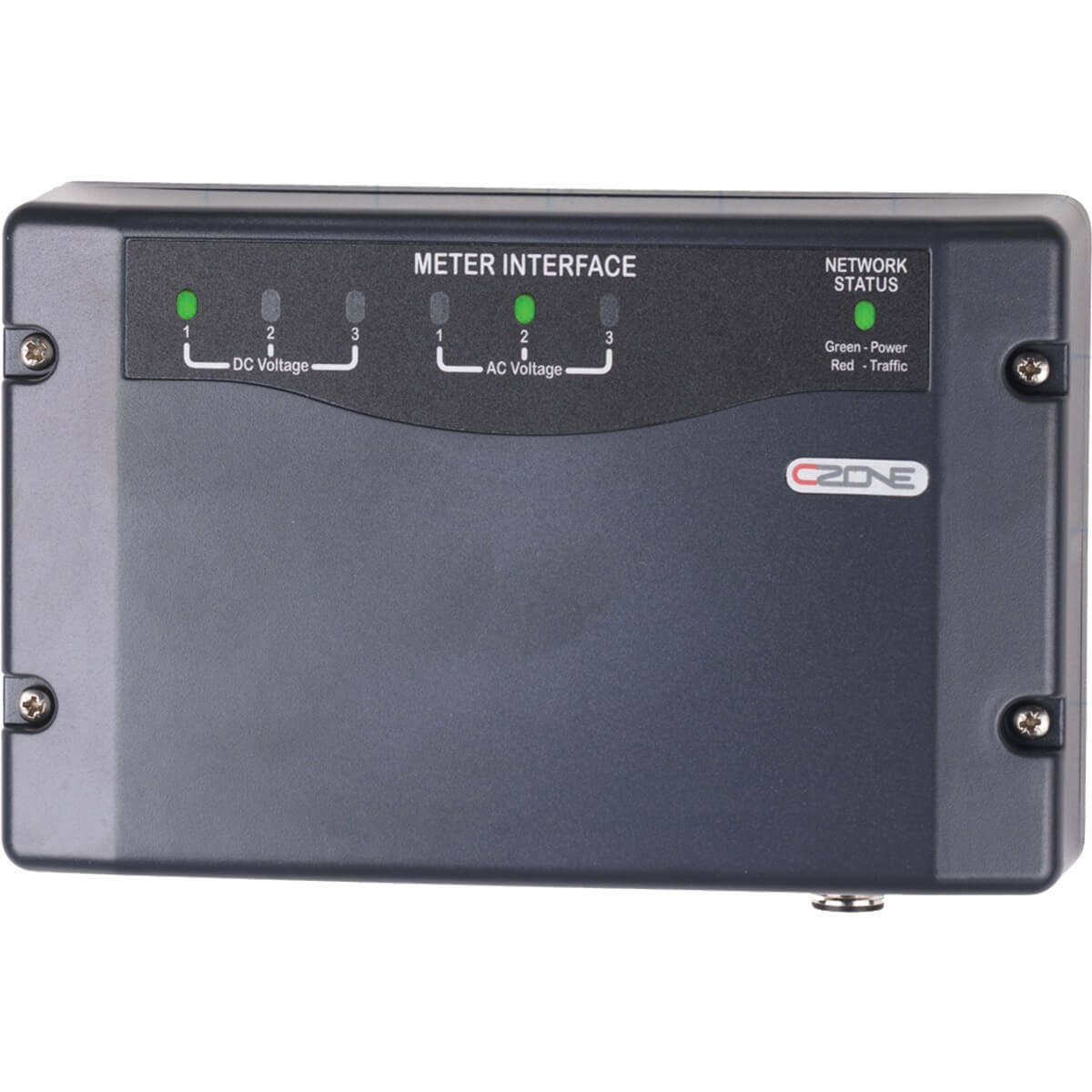

• Onboard Diagnostic LEDs: Features dedicated LED status indicators for individual AC and DC voltage inputs, alongside a bi-colour network status LED to verify power connectivity and data traffic at a glance.
• Installation Ready: Supplied complete with the required connector plug and weather-resistant seal to ensure a secure, reliable termination.

Engineered for Harsh Marine and Mobile Environments

Electrical components in boats, caravans, and commercial vehicles are frequently exposed to vibration, moisture, and temperature extremes. Standard commercial-grade metering equipment can fail prematurely under these conditions, leading to blind spots in your electrical system. The CZone Meter Interface is housed in a durable, protective enclosure with a secure four-point screw mounting footprint, ensuring stable installation in lockers, engine bays, or behind dashboards.

The inclusion of the genuine mating plug and moisture seal ensures that the sensor wire terminations are protected against ingress and vibration-induced loosening. Furthermore, the integrated diagnostic LEDs simplify commissioning and fault-finding, allowing installers and owners to confirm sensor inputs and network communications directly at the module without needing diagnostic software.

Upgrade Your System Visibility

Integrate the CZone Meter Interface into your digital switching architecture to gain complete oversight of your AC and DC power systems. Add this complete interface kit with seal and plug to your build list today for professional-grade onboard energy management.
