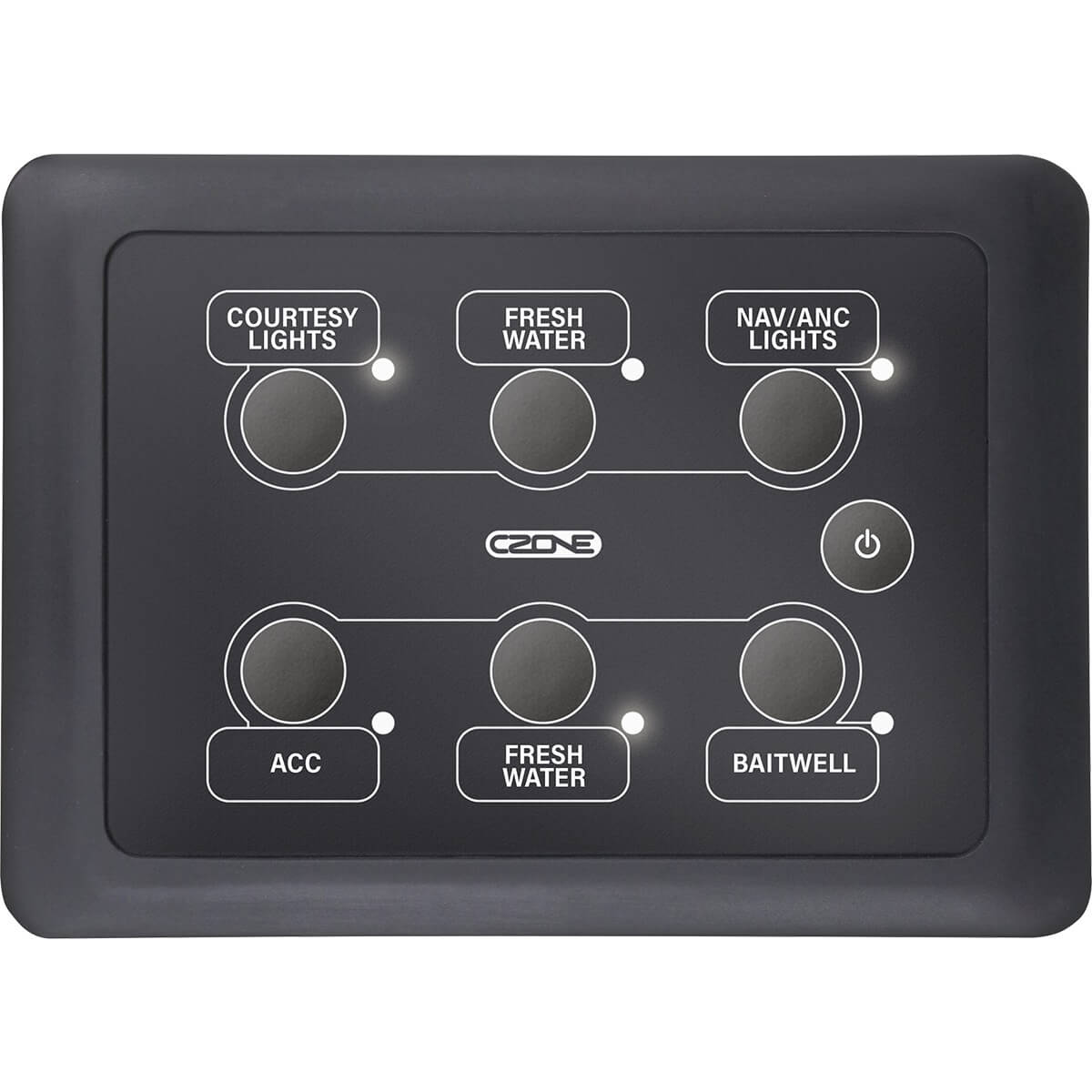

CZone 3x2 Landscape Waterproof Keypad

Streamlined Digital Switching for Marine and Off-Road Dashboards

The CZone 3x2 Landscape Waterproof Keypad delivers intuitive, centralised control for complex electrical systems in demanding environments. Designed to replace bulky mechanical switch panels and sprawling wiring looms, this compact digital switching interface organises up to six programmable circuits into a clean, horizontal layout. Whether outfitting an exposed marine helm, a flybridge, or a rugged 4WD canopy, this keypad provides dependable circuit management where space is at a premium and exposure to the elements is unavoidable.

Engineered for Harsh Environments

Traditional mechanical rocker switches are prone to moisture ingress, corrosion, and premature failure when exposed to salt spray, washdowns, or heavy dust. The CZone keypad mitigates these risks with a fully sealed, IPX7-rated enclosure built to withstand temporary water immersion and tough outdoor conditions. Tactile push buttons provide positive physical feedback during operation, which is essential when navigating rough seas or corrugated off-road tracks.

For night-time operation, the keypad incorporates configurable, dimmable RGB circuit backlighting. Users can tailor the illumination levels to match existing dashboard instrumentation, preserving night vision at the helm while ensuring every control remains easy to identify in low-light conditions. Integrated status indicator LEDs offer immediate visual confirmation when a circuit is active, alongside fault indicators that alert operators to blown fuses or circuit trips within the broader CZone network.

Simplified Installation and Glass-Dash Styling

One of the major challenges in custom dashboard fabrication is managing the wiring clutter behind the panel. By utilising CZone digital switching architecture, this keypad connects to the system via a single network drop cable. This significantly reduces installation time, minimises termination points, and lowers the risk of voltage drop or wiring faults behind the dash.

To suit varied aesthetic and structural requirements, the unit supports two distinct installation methods:

• Front Mounting: Utilises a standard 2 1/16" (52mm) holesaw opening, allowing it to fit into traditional gauge cutouts for straightforward retrofits.
• Rear Mounting: Enables a completely flat, flush-mount profile that integrates seamlessly into modern glass-bridge marine helms and custom-routed composite panels.

Key Features and Benefits

• Compact 3x2 Landscape Layout: Consolidates six circuit controls into a tidy horizontal footprint, optimising dashboard real estate.
• IPX7 Waterproof Construction: Sealed housing protects internal electronics against water ingress, salt spray, and washdowns.
• Dimmable RGB Backlighting: Customisable illumination with a dedicated power and dimming control button to prevent glare during night navigation.
• Single Cable Connectivity: Connects to the NMEA 2000 network via a single plug-and-play cable, eliminating heavy behind-dash wiring harnesses.
• Dual Mounting Flexibility: Supports both standard 2 1/16" (52mm) front-mount cutouts and sleek rear-mount glass-dash installations.
• Customisable Circuit Identification: Supplied with a standard label sheet for clear, personalised marking of bilge pumps, lighting, electronics, and accessories.
• Instant Visual Feedback: Built-in status LEDs clearly indicate operational states and circuit faults at a glance.

Upgrade Your Control Interface

Ideal for boat builders, marine electricians, and touring vehicle converters, this keypad brings modern reliability and clean aesthetics to any 12V or 24V digital switching setup. Integrate the CZone 3x2 Landscape Waterproof Keypad into your electrical system today for a cleaner dashboard and smarter circuit control.
