CZone COI Digital Switch Breakout Interface for Up to 6 Push-Button or Rocker Digital Switches

Seamless Tactile Control Integration for CZone COI Systems

The CZone Digital Switch Breakout Interface provides a dedicated, streamlined pathway to link your CZone Combination Output Interface (COI) with physical helm or cabin controls. While touchscreen displays offer comprehensive system management, tactile switches remain essential for instant, muscle-memory access to critical functions such as bilge pumps, navigation lights, horn, or wiper controls in marine and mobile environments. This breakout module accommodates up to six compatible CZone digital switches, bridging the gap between advanced digital switching networks and traditional mechanical control layouts.

Flexible Dashboard Customisation and Visual Feedback

Designed to adapt to your specific dashboard or control panel aesthetic, this interface supports both push-button and rocker-style CZone digital switches. Beyond simple circuit activation, the integrated digital control logic facilitates intelligent two-way communication between the COI and the switch face. When connected to compatible switches, the interface manages dimmable LED backlighting to prevent night-blindness at the helm, provides clear systems-on indication, and relays visual fault codes directly to the operator. This immediate diagnostic feedback reduces troubleshooting time and enhances operational safety by alerting you to tripped circuits or system anomalies the moment they occur.

Engineered for Rapid, Reliable Installation

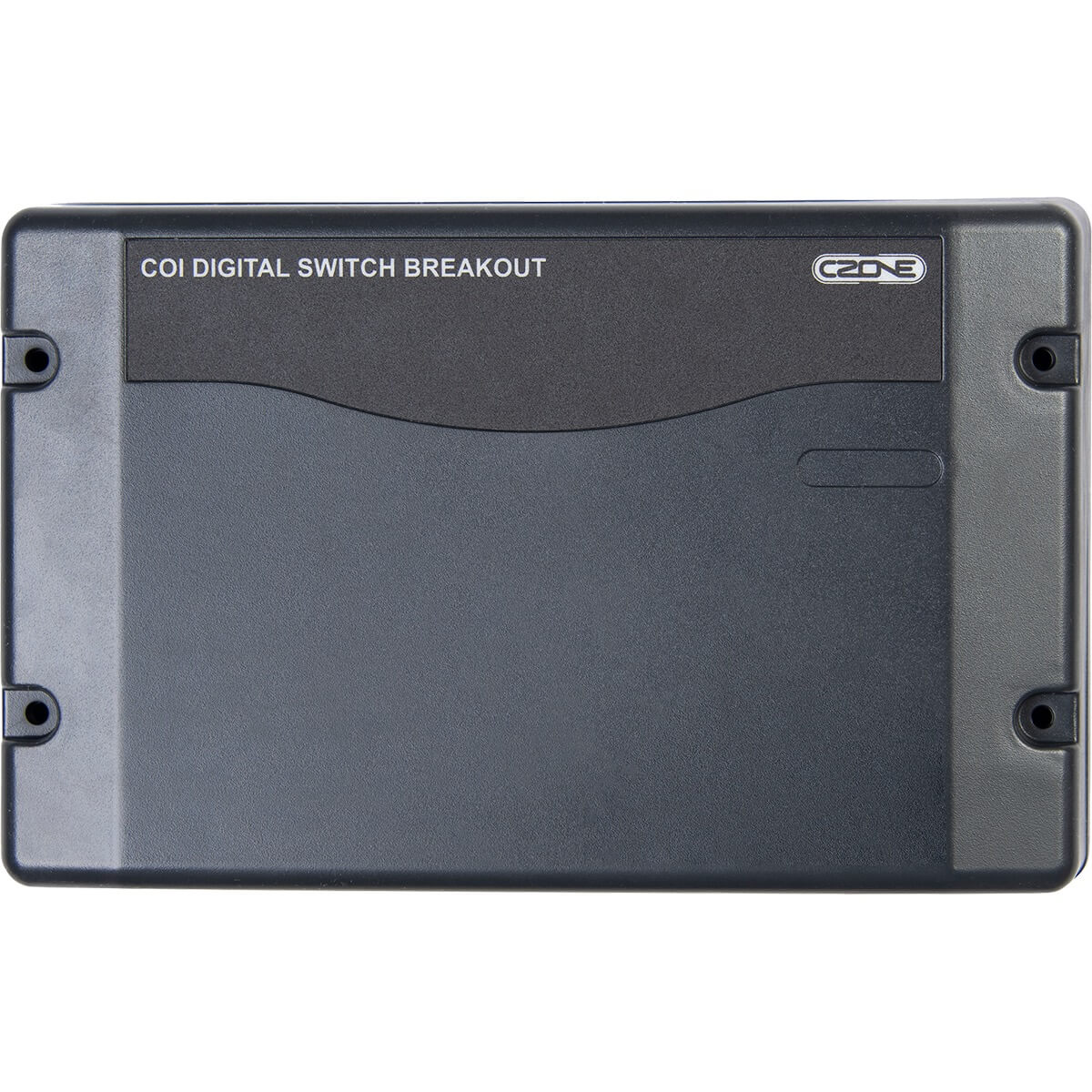

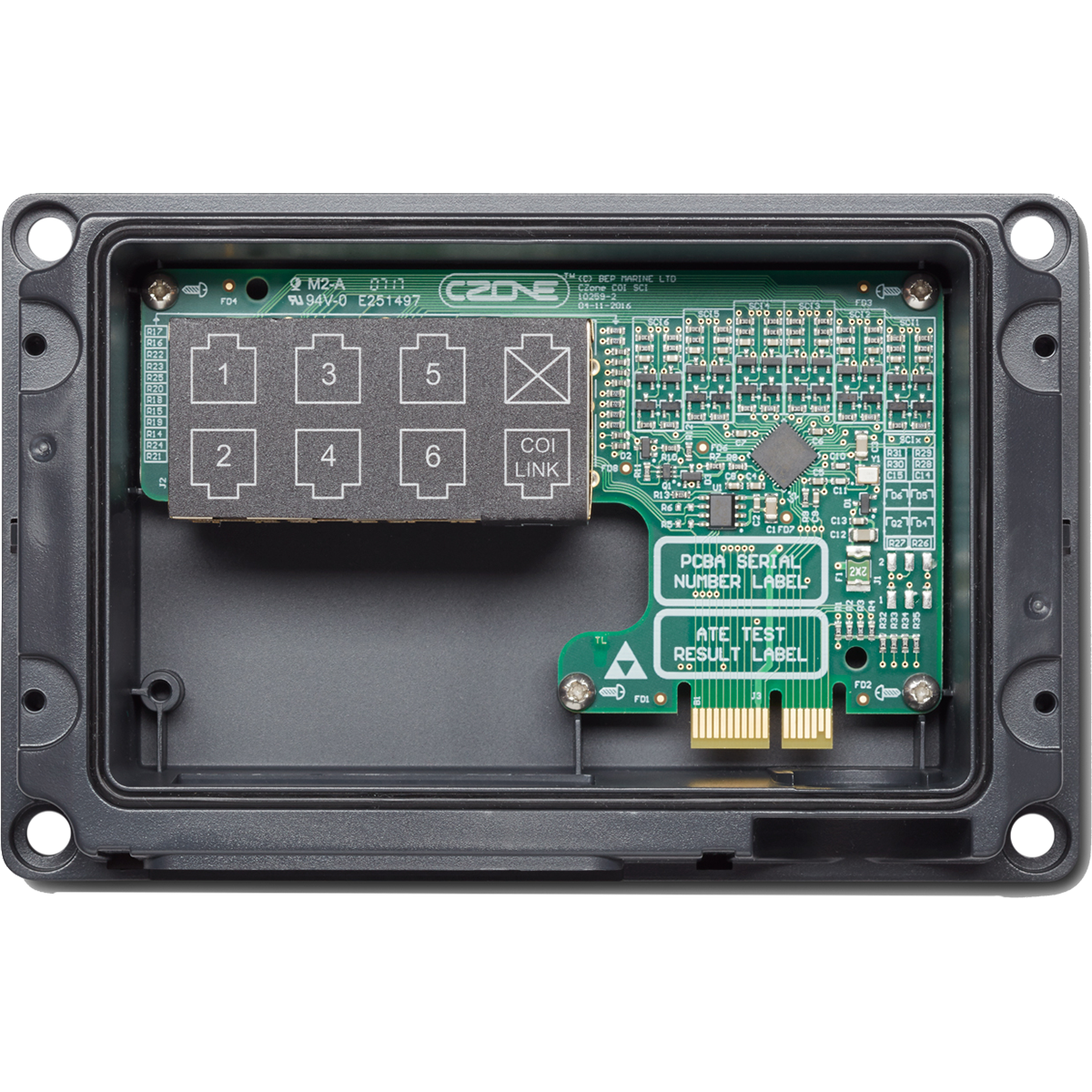

Traditional switch panel wiring often results in complex, heavy wiring looms behind the dash that are difficult to trace, prone to voltage drop, and susceptible to vibration-induced failures. The CZone Digital Switch Breakout Interface resolves these installation challenges through a consolidated, plug-and-play architecture. Utilizing a secure gold-plated edge connector for the system harness and clearly numbered terminal points (1 to 6) for individual switch inputs, it drastically reduces termination time and eliminates the risk of cross-wiring. The compact printed circuit board is housed within a protective black enclosure featuring pre-drilled mounting holes, ensuring the unit remains securely anchored even in high-vibration off-grid vehicles or rough offshore conditions.

Key Features

• Connects a CZone Combination Output Interface (COI) with up to six individual digital switches
• Compatible with both CZone push-button and rocker switch variants for flexible helm or cabin layouts
• Enables advanced switch functions including dimmable LED backlighting, active system-on status, and visual fault code alerts
• Features six clearly numbered switch input terminals and a dedicated COI link port for straightforward wiring
• Supplied with a plug-and-play harness utilizing a gold-plated edge connector for secure, corrosion-resistant integration
• Housed in a compact, durable enclosure with pre-drilled mounting points for straightforward installation behind dashboards or consoles

Upgrade Your Digital Switching Layout

Equip your vessel, caravan, or specialist vehicle with responsive, reliable physical controls. Add the CZone COI Digital Switch Breakout Interface to your system configuration today for a cleaner, smarter, and more intuitive dashboard installation.
