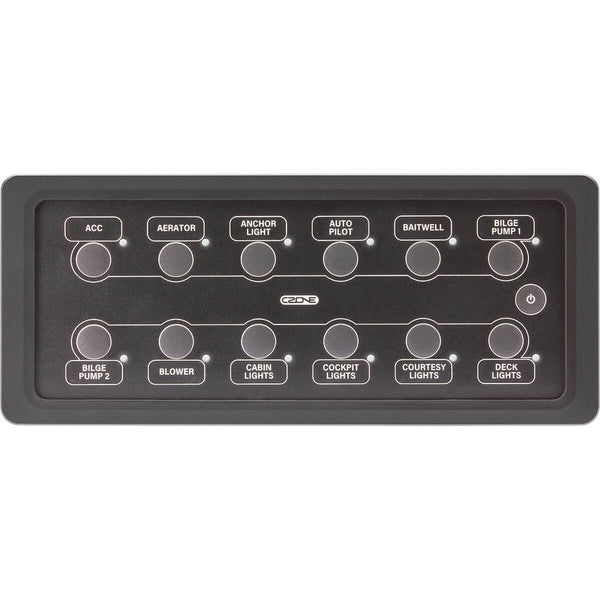

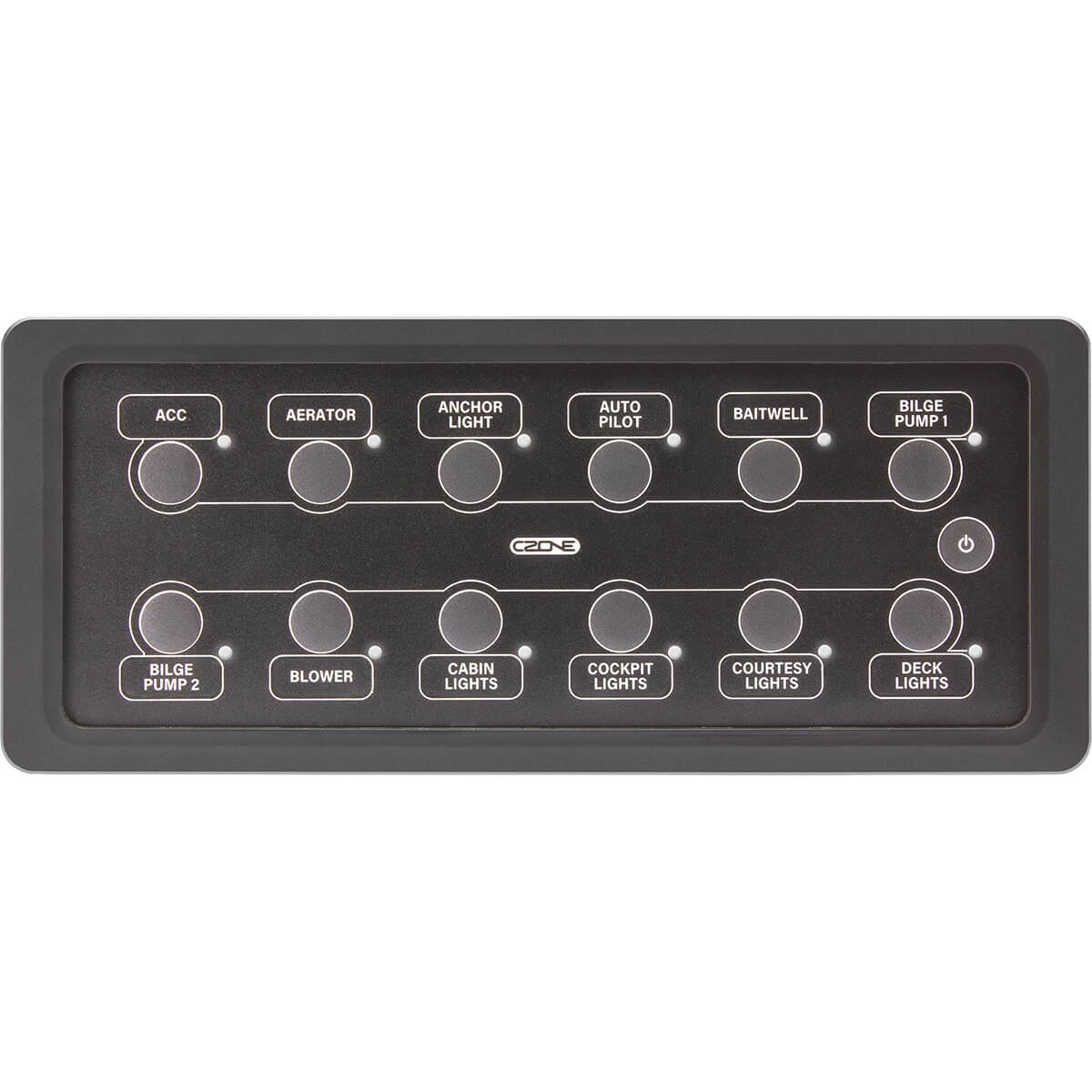

CZone 12-Way Landscape Waterproof Keypad

Centralised Digital Switching and Circuit Control for Harsh Environments

Managing multiple electrical circuits in demanding marine and off-grid automotive applications requires hardware that can withstand the elements while simplifying the user interface. The CZone 12-Way Landscape Waterproof Keypad replaces bulky, traditional mechanical switch panels with a sleek, low-profile digital switching controller. Engineered specifically for exposed dashboards, helm stations, and exterior control panels, this landscape-oriented unit offers comprehensive command over twelve distinct circuits, consolidating complex wiring harnesses into a clean, intuitive interface.

Engineered for Submersible Durability and Fault Diagnostics

Standard switch panels often fail when exposed to heavy spray, washdowns, or high humidity, leading to corroded terminals and electrical faults. Featuring an IPX7 submersible enclosure, this keypad is built to endure water immersion and extreme weather conditions without compromising system integrity. This high level of ingress protection makes it ideal for open centre-console boats, flybridges, and rugged 4WD canopies where moisture and dust are constant hazards.

Beyond physical durability, the keypad enhances operational safety through real-time visual diagnostics. Each button features integrated circuit-in-operation LEDs that immediately confirm active loads, alongside dedicated blown-fuse fault indication. Rather than manually inspecting hidden fuse blocks in the dark when a device stops working, operators receive instant visual feedback right at the dashboard, significantly reducing troubleshooting time and system downtime.

Key Features and System Benefits

• IPX7 Submersible Rating: Fully sealed construction protects internal electronics against water ingress, heavy spray, and wet weather conditions.
• Integrated Fault Diagnostics: Built-in LED indicators clearly display active circuit status and immediately alert operators to blown fuses or system faults.
• Dimmable RGB Backlighting: Customisable illumination preserves night vision during evening navigation while ensuring clear visibility in bright daylight.
• Simplified Network Connectivity: Utilises a single plug and network cable connection, drastically reducing behind-the-dash wiring clutter and installation labour.
• Versatile Mounting Configurations: Supports front, rear, and flush mounting options to integrate seamlessly with modern glass-dash layouts or traditional consoles.

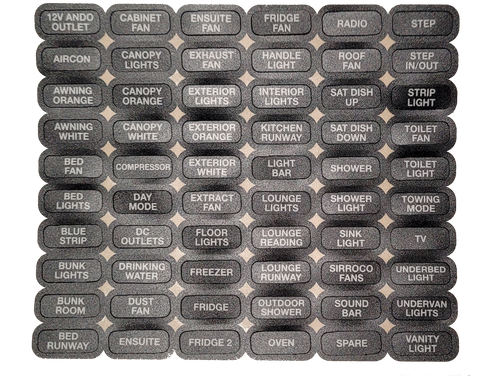

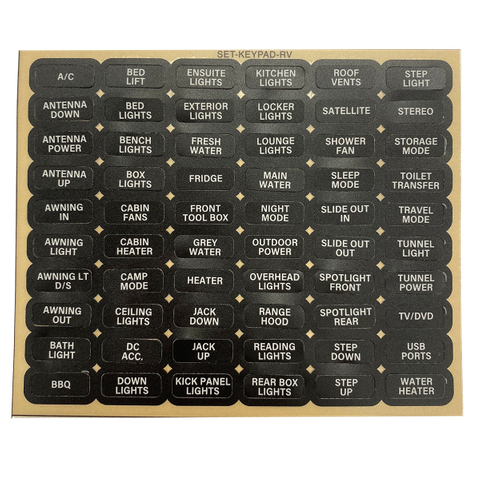

• Customisable Circuit Identification: Supplied with a standard label sheet for clear, personalised circuit labelling tailored to specific vessel or vehicle loads.

Streamlined Installation and Ergonomic Design

Traditional 12-way switch panels require routing dozens of heavy-gauge power and ground wires directly to the helm or dashboard, creating congestion and increasing the risk of voltage drop. By integrating into a CZone digital switching network, this keypad connects via a single network cable and plug. This plug-and-play architecture not only speeds up installation for marine electricians and system builders, but also improves long-term reliability by minimising termination points behind the console.

Installation flexibility is another core advantage. For quick retrofits or standard dash installations, the front-mount option requires only a single 2-1/16-inch (52mm) hole saw cut-out to pass the cable through. For custom helm designs, the rear-mount configuration creates an ultra-clean, flat glass-dash appearance with no visible fasteners. Combined with adjustable RGB circuit backlighting that can be dimmed to match existing instrumentation, this 6x2 landscape keypad delivers an ergonomic, professional finish.

Upgrade Your Digital Switching Interface

Whether you are fitting out a commercial marine vessel, upgrading a recreational boat helm, or building a sophisticated off-grid overland canopy, the CZone 12-Way Landscape Waterproof Keypad delivers dependable, clutter-free circuit control. Integrate this unit into your CZone network today for streamlined installation and reliable all-weather operation.
