CZone SCI 8m RJ45 Cable for Push Buttons

Seamless Integration for CZone Signal and Control Interfaces

In advanced marine and mobile electrical architectures, reliable communication between tactile user controls and the central digital switching network is critical. The CZone SCI (Signal and Control Interface) 8m RJ45 Cable is engineered specifically to bridge the gap between physical push buttons and your CZone SCI module. By converting analogue switch inputs into digital signals across the NMEA 2000 network, the SCI system simplifies complex wiring harnesses, and this dedicated 8-metre harness ensures your switch panels can be mounted in the most ergonomic locations across larger vessels or recreational vehicles.

Key Features and System Benefits

• Generous 8-Metre Reach: Provides ample length to route cables cleanly through bulkheads, conduits, and dash consoles in larger boats, motorhomes, and commercial vehicles without requiring mid-line splices.

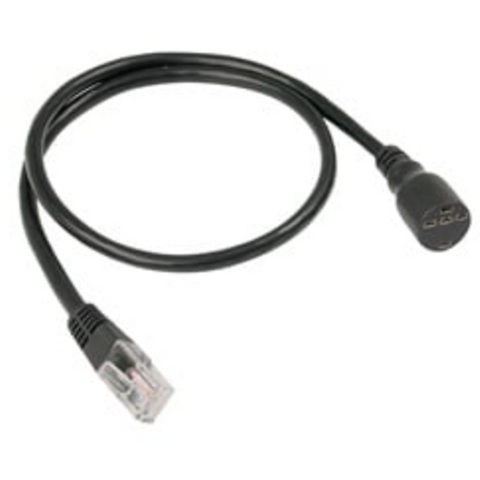

• Plug-and-Play Termination: Features a standard RJ45 connector on one end for direct insertion into the CZone SCI module, paired with a dedicated female push button interface on the opposing end.
• Reduced Installation Time: Eliminates the need for manual crimping, custom loom fabrication, or tedious point-to-point wiring at the helm or control station.
• High Signal Integrity: Factory-terminated connectors help mitigate the risk of loose connections, voltage drop, or signal drop-out caused by constant vibration in harsh marine and off-road environments.
• Streamlined Dash Layouts: Supports the use of modern, low-profile momentary or latching push buttons, freeing up valuable dashboard space while maintaining full digital control over onboard circuits.

Why Choose Factory-Terminated CZone Cabling?

When building or upgrading a 12V or 24V digital switching system, relying on unverified or field-terminated data cables can introduce intermittent faults that are difficult to diagnose. Standardised, purpose-built harnesses like the CZ-80-911-0089-01 reduce the risk of pin-out errors and corrosion at the terminal interface. The moulded connectors provide vital strain relief, protecting the delicate internal conductors during the cable-pulling process through tight marine gunwales or vehicle chassis runs.

Ideal Applications

This 8m interface cable is suited for marine electricians, RV builders, and discerning DIY installers working with the CZone digital switching ecosystem. It is particularly useful for:

• Connecting helm-mounted push button arrays to centrally located CZone SCI modules in flybridge cruisers, yachts, and centre consoles.
• Routing tactile lighting and pump controls from living quarters to the main electrical bay in large fifth-wheelers, expedition trucks, and off-grid caravans.
• Expanding existing CZone networks where physical switch redundancy or local circuit control is desired alongside touchscreen displays.

Note: This cable is designed specifically for use with CZone Signal and Control Interface (SCI) modules and compatible push button switches. Ensure your system architecture includes the required SCI hardware prior to installation.

Upgrade Your Control Layout

Ensure dependable, noise-free signal transmission between your dash controls and your digital switching network. Add the CZone SCI 8m RJ45 Cable to your installation toolkit today to achieve a clean, professional, and durable wiring setup for your vessel or vehicle.
