GEN3 Double Pole Single Module RCBO 10Amp Safety Switch/Circuit Breaker Combo
GEN3 Double Pole Single Module RCBO 10Amp Safety Switch/Circuit Breaker Combo
10 Amp 4.5kA A Type
Key features: Compact single module width for switchboard space saving, Combined overload and earth leakage protection, 10A C-Curve rating for general power circuits, 30mA sensitivity for personal protection.

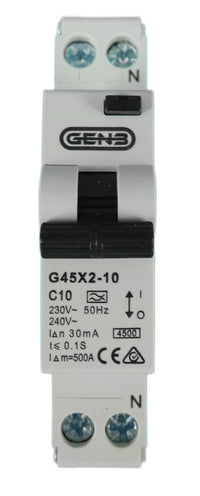

Highlights:Test Button: Monthly test button to ensure safety mechanism works,Toggle Switch: Black switching handle for manual isolation,Specifications: Clearly marked C10 and 30mA trip ratings,Terminals: Screw terminals for secure electrical connection.
Regular price
$39.90
Availability:
In Stock
Guaranteed Safe and Secure Checkout
5
DESCRIPTION
- GEN3
- Product Code -G45X2-10
- Single Module 10 Amp 4.5kA Double Pole Mini RCBO Safety Switch Circuit Breaker
- True Double Pole Disconnection in a Single Module RCBO
- Disconnects Active & Neutral conductors on Both Fault Current Condition and Overload.
- Don't be Deceived by Advertisements for Double Pole Safety Switches that do not comply with the above for Caravan RV Motorhome use
- One module only 18mm Wide - More Room for Wiring
- AS/NZS 61009.1 Compliant
- Top and Bottom Line or Load Wiring
- Two Year Warranty
- Colour -Grey
SKU: RCBO1-G45X2-10
SPECIFICATIONS
| SKU: | RCBO1-G45X2-10 |
| Model #: | RCBO1-G45X2-10 |
| MPN: | RCBO1-G45X2-10 |
