Victron Busbar 250A 2P/Terminals with 12 Screws & Cover

High Current Busbar


Victron Busbar 250A 2P/Terminals with 12 Screws & Cover Main ImageVictron Busbar 250A 2P/Terminals with 12 Screws & Cover 1Victron Busbar 250A 2P/Terminals with 12 Screws & Cover 4Victron Busbar 250A 2P/Terminals with 12 Screws & Cover 6
Victron Busbar 250A 2P/Terminals with 12 Screws & Cover Main Image
Victron Busbar 250A 2P/Terminals with 12 Screws & Cover 1
Victron Busbar 250A 2P/Terminals with 12 Screws & Cover 4
Victron Busbar 250A 2P/Terminals with 12 Screws & Cover 6
Regular price $104.92
/
Availability: In Stock
View all products from Victron

Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

3
Victron Busbar 250A 2P/Terminals with 12 Screws & Cover Main Image

Victron Busbar 250A 2P/Terminals with 12 Screws & Cover

DESCRIPTION

High-Current Victron Busbar 250A 2P: Streamline Your DC Connections with 12 Screws & Protective Cover

Discover the efficiency of Victron Busbar 250A 2P, the ultimate solution for high-current distribution in marine, RV, and renewable energy applications. Victron Energy's busbars are engineered to simplify your electrical setups by offering a centralized point for battery and DC equipment connections. This 250A model comes equipped with 12 screws for secure attachments and a protective cover to ensure safety and longevity.

Key Features:

  • Robust Design for High-Current Distribution: Specifically designed for consolidating high-current connections, our Victron Busbar 250A facilitates the distribution to multiple circuits, making it ideal for batteries and DC equipment.
  • Enhanced Connection Stability: Featuring inserted molded stainless steel studs, our busbars eliminate the need for securing nuts, allowing for higher torquing and superior electrical contact.
  • Accessibility and Safety: The raised bus design provides easy access to multiple wires on a single base, while the included protective cover and mounting holes help prevent accidental shorts, ensuring a safe and efficient electrical setup.
  • Simplified Installation: With pre-drilled mounting holes, the busbar is easy to install, reducing the risk of shorts against metal surfaces and promoting a clean, organized battery compartment.
  • Versatile Application: Whether you're tidying up your boat's battery compartment, optimizing an RV power system, or setting up a renewable energy project, the Victron Busbar 250A is designed to meet your needs with efficiency and reliability.

Elevate your electrical connections with Victron Busbar 250A 2P. Embrace a streamlined, efficient, and safe way to manage high-current distributions. Visit our product page for more details and to explore our extensive selection of busbars tailored to your energy solutions.

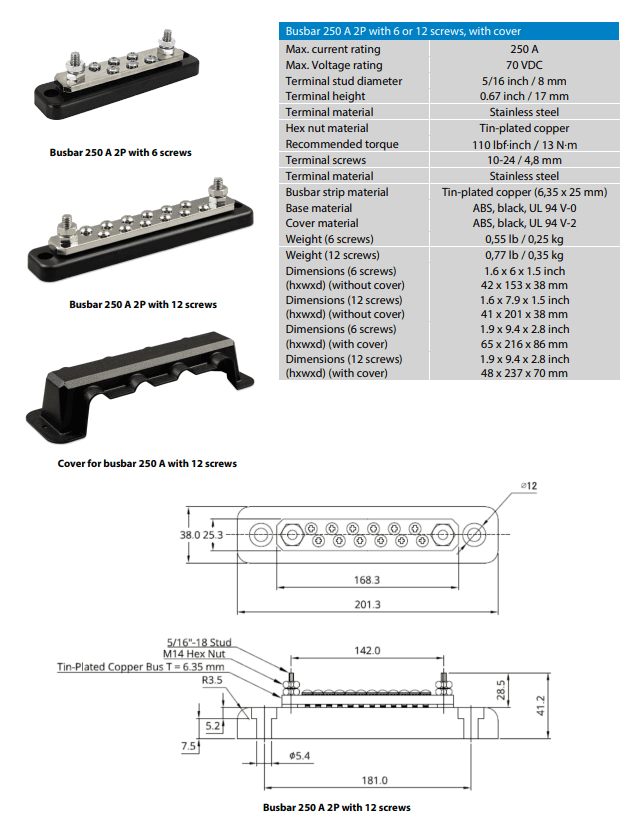

SPECIFICATIONS

Specifications

Feature Specification (12 Screws)
Max. Current Rating 250 A
Max. Voltage Rating 70 VDC
Terminal Stud Diameter 5/16 inch / 8 mm
Terminal Height 0.67 inch / 17 mm
Terminal Material Stainless steel
Hex Nut Material Tin-plated copper
Recommended Torque 110 lbf·inch / 13 N·m
Terminal Screws 10-24 / 4.8 mm
Busbar Strip Material Tin-plated copper (6.35 x 25 mm)
Base Material ABS, black, UL 94 V-0
Cover Material ABS, black, UL 94 V-2
Weight 0.77 lb / 0.35 kg
Dimensions (without cover) 1.6 x 7.9 x 1.5 inch / 41 x 201 x 38 mm
Dimensions (with cover) 1.9 x 9.4 x 2.8 inch / 48 x 237 x 70 mm

SKU: VIC-VBB125021220
Barcode: 8719076056393
Model #: VBB125021220
MPN: VBB125021220

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
