Victron Battery Monitor BMV-702 Grey (Non-Bluetooth)
Victron Battery Monitor BMV-702 Grey (Non-Bluetooth)
Supply voltage range 6.5 - 95 VDC
Key features: Backlit digital LCD display, Includes high-precision 500A shunt, Supplied with 10 metre RJ12 cable, Alternative square bezel included, Non-Bluetooth version with VE.Direct port.
Front view of the round Victron battery monitor featuring a clear LCD screen displaying -1.00kW and tactile setup and select buttons.
Key features: Real-time voltage and current monitoring, State of charge and amp-hour tracking, Calculated time-to-go based on usage, Historical data for total energy charged and discharged, Power measurement in kilowatts.
Highlights:Main Terminals: Large brass bolts for connecting battery and load cables,RJ12 Port: Data connection point for the monitor display cable,Voltage Sensing: Terminal block for auxiliary or starter battery voltage monitoring,Mounting Base: Durable insulated base with pre-drilled mounting holes.

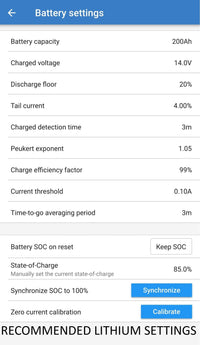

Key features: Battery capacity 200Ah configuration, 14.0V charged voltage threshold, 20 percent discharge floor setting, Configurable tail current and detection time, Manual state of charge synchronisation.
DESCRIPTION
Battery ‘fuel gauge’, time-to-go indicator, and much more
The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account. Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts. The BMV-712 features an additional input which can be programmed to measure the voltage (of a second battery), battery temperature or midpoint voltage (see below).
Easy to install
All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed. Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.
Midpoint voltage monitoring (BMV-702 and BMV-712 only)
This feature, which is often used in industry to monitor large and expensive battery banks, is now for the first time made available at a low cost, to monitor any battery bank.
A battery bank consists of a string of series connected cells. The midpoint voltage is the voltage halfway along the string. Ideally, the midpoint voltage would be exactly half of the total voltage. In practice, however, deviations will be seen, that depend on many factors such as a different state of charge for new batteries or cells, different temperatures, internal leakage currents, capacities and much more.
Large or increasing deviation of the midpoint voltage, points to improper battery care or a failed battery or cell. Corrective action following a midpoint voltage alarm can prevent severe damage to an expensive battery. Please consult the BMV manual for more information.
Standard features
- Battery voltage, current, power, ampere-hours consumed and state of charge
- Remaining time at the current rate of discharge
- Programmable visual and audible alarm
- Programmable relay, to turn off non critical loads or to run a generator when needed
- 500 Amp quick connect shunt and connection kit - Shunt selection capability up to 10.000 Amps
- VE.Direct communication port
- Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
- Wide input voltage range: 6,5 – 95V
- High current measurement resolution: 10 mA (0,01A)
- Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V
More about midpoint voltage
One bad cell or one bad battery can destroy a large, expensive battery bank. When batteries are connected in series, a timely warning can be generated by measuring the midpoint voltage. Please see the BMV manual, section 5.2, for more information. We recommend our Battery Balancer (BMS012201000) to maximize service life of series-connected batteries.
SKU: Vic-BAM010702000
SPECIFICATIONS
| SKU: | Vic-BAM010702000 |
| Barcode: | 8719076020097 |
| Model #: | BAM010702000 |
| MPN: | BAM010702000 |
