Victron VE.Bus BMS V2

Suits Victron Smart Lithium Batteries


Regular price $259.24
$293.70
/
Availability: In Stock at Victron Warehouse Allow up to 5 days before dispatch
View all products from Victron
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay MastercardPayPalShop Pay Visa

0

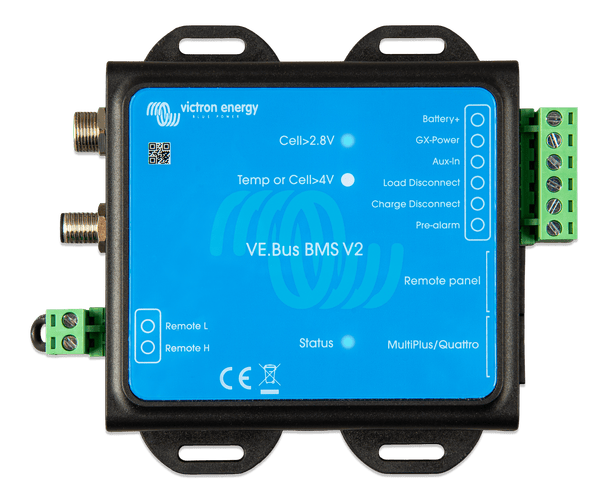

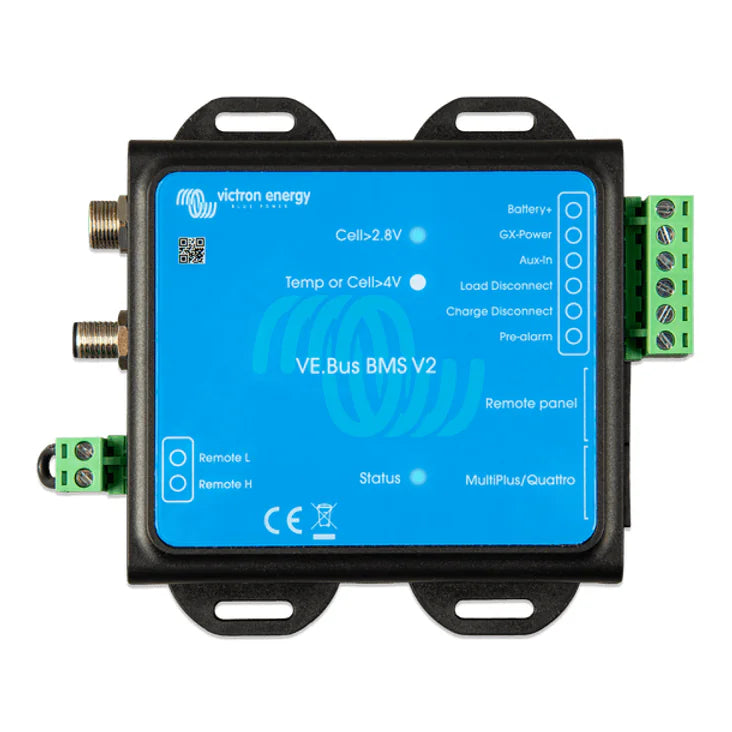

Top-down view of Victron VE.Bus BMS V2 showing blue faceplate and green screw terminal blocks

Victron VE.Bus BMS V2

DESCRIPTION

VE.Bus BMS V2: Advanced Battery Management for Optimal Protection

The VE.Bus BMS V2 stands as a pinnacle of battery management systems, expertly crafted to interface seamlessly with Victron Lithium Battery Smart 12.8V & 25.6V (LiFePO4 or LFP) setups. This system is essential for those utilizing Victron inverters or inverter/chargers equipped with VE.Bus communication, ensuring your energy solutions are both efficient and secure.

Key Features and Functions:

  • Comprehensive Monitoring: Vigilantly monitors Victron Lithium batteries for over voltage, under voltage, and temperature anomalies, safeguarding your power system's integrity.
  • Proactive Alarms and Controls: Initiates a pre-alarm for imminent cell under voltage scenarios, preventing potential damage by disabling inverting in VE.Bus inverters or inverter/chargers and other loads.
  • Charging Regulation: Automatically disables charging through VE.Bus inverters or inverter/chargers and other chargers in response to cell overvoltage or extreme temperature conditions, ensuring your system's longevity.
  • Remote Management: Offers the flexibility to disable VE.Direct and VE.Can solar chargers via a GX device, enhancing control over your energy system.
  • Multi-Device Integration: Facilitates the control of VE.Bus inverter/charger with various devices, including the Digital Multi Control, VE.Bus Smart dongle, and GX devices.
  • Auxiliary Support: Features auxiliary power input and output terminals, allowing a GX device to remain operational during system shutdowns, ensuring continuous monitoring and control.

Unparalleled Cell Protection:

Each Victron LiFePO4 battery cell receives individual attention, protected against over voltage, under voltage, and over temperature. With integrated Balancing, Temperature, and Voltage control (BTV), these batteries connect effortlessly to the VE.Bus BMS, supporting up to a 48V battery bank assembly for expansive energy solutions.

Versatile System Compatibility:

  • Broad Voltage Range: Protects 12V, 24V, and 48V systems with an operating voltage range of 9 to 70V DC, catering to a wide array of power requirements.
  • VE.Bus Integration: Ensures flawless communication with all VE.Bus products, including MultiPlus, Quattro, and Phoenix inverters, via standard RJ45 UTP cables.
  • Flexible Load Management: Utilizes the Load Disconnect output for controlling remote on/off of loads and electronic load switches, enhancing system reliability.
  • Pre-Alarm and Charge Disconnect: Manages imminent risks with pre-alarms and charge disconnect outputs, controlling charger operations and integrating with Cyrix-Li relays for comprehensive system management.

Intuitive LED Indicators:

  • Enabled (Blue): Indicates active VE.Bus product operation.
  • Cell>4V or Temperature (Red): Signals charge disconnect due to cell over voltage or temperature concerns.
  • Cell>2.8V (Blue): Denotes load disconnect output status, ensuring real-time system monitoring.

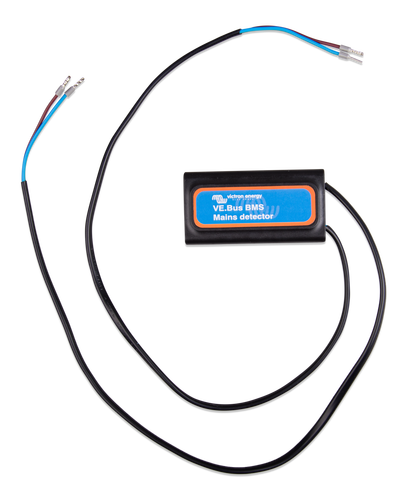

Include VE.Bus Mains Detector

This system includes the VE.Bus BMS Mains Detector, an essential component for seamless integration, except when used with the MultiPlus-II and Quattro-II and the new style MultiPlus 12/1600/70 and MultiPlus 12/2000/80, where it's not required.

Elevate your energy system with the VE.Bus BMS V2, the ultimate solution for safeguarding and optimizing your Victron Lithium Battery setup. Experience the peace of mind that comes with advanced protection, seamless integration, and comprehensive control of your power storage and management systems.

SPECIFICATIONS

Specifications









































































































































VE.Bus BMS V2 BMS300200200
Input voltage range 9 – 70 VDC
Current draw - regular operation 10 mA (excluding Load disconnect current)
Current draw - low cell voltage 2 mA
Current draw - switched off via remote on/off terminal 1.50 mA
GX-pow output 1 A
Aux-in input 1 A
Load disconnect output Normally high (output voltage ≈ supply voltage – 1 V) Floating when the load needs to be disconnected
Source current limit 1 A
Sink current 0 A
Charge disconnect output Normally high, (output voltage ≈ supply voltage – 1 V) Floating when charger should be disconnected
Source current limit 10 mA
Sink current 0 A
Pre-alarm output current rating 1 A, not short circuit protected
Remote terminals Usage modes to turn the system on or off: a) ON when the L and H terminal are interconnected (switch or relay contact) b) ON when the L terminal is pulled to battery minus (V<3.5 V) c) ON when the H terminal is high (2.9 V < VH < Vbat) d) OFF in all other conditions

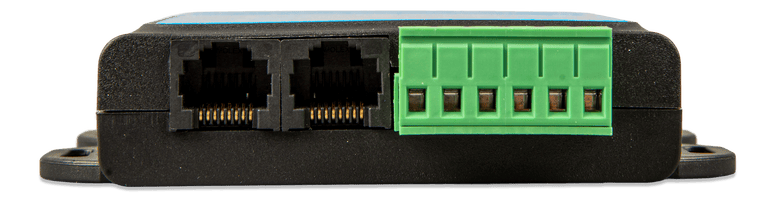

VE.Bus communication port 2 x RJ45 sockets to connect to all VE.Bus products
GENERAL
Operating temperature -20 to +50 °C / 0 – 120 °F
Humidity Max. 95 % (non-condensing)
Protection grade IP20
ENCLOSURE
Material ABS
Colour Matt black with a blue sticker
Weight 120 gr
Dimensions (h x w x d) 23.8 mm x 94.5 mm x 105.5 mm
STANDARDS
Safety EN 60950
Emission EN 61000-6-3, EN 55014-1
Immunity EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive EN 50498
EXTERNAL AC-DC ADAPTER
Min. power rating 1 A@12 V - If the nominal output voltage is > battery voltage, the AC-DC adapter takes over the power supply of the GX device.



SKU: VIC-BMS300200200
Barcode: 8719076057277
Model #: BMS300200200
MPN: BMS300200200

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
