Victron SolidSwitch 104
Victron SolidSwitch 104
Controls up to 70V/4A DC loads via a low-power digital signal

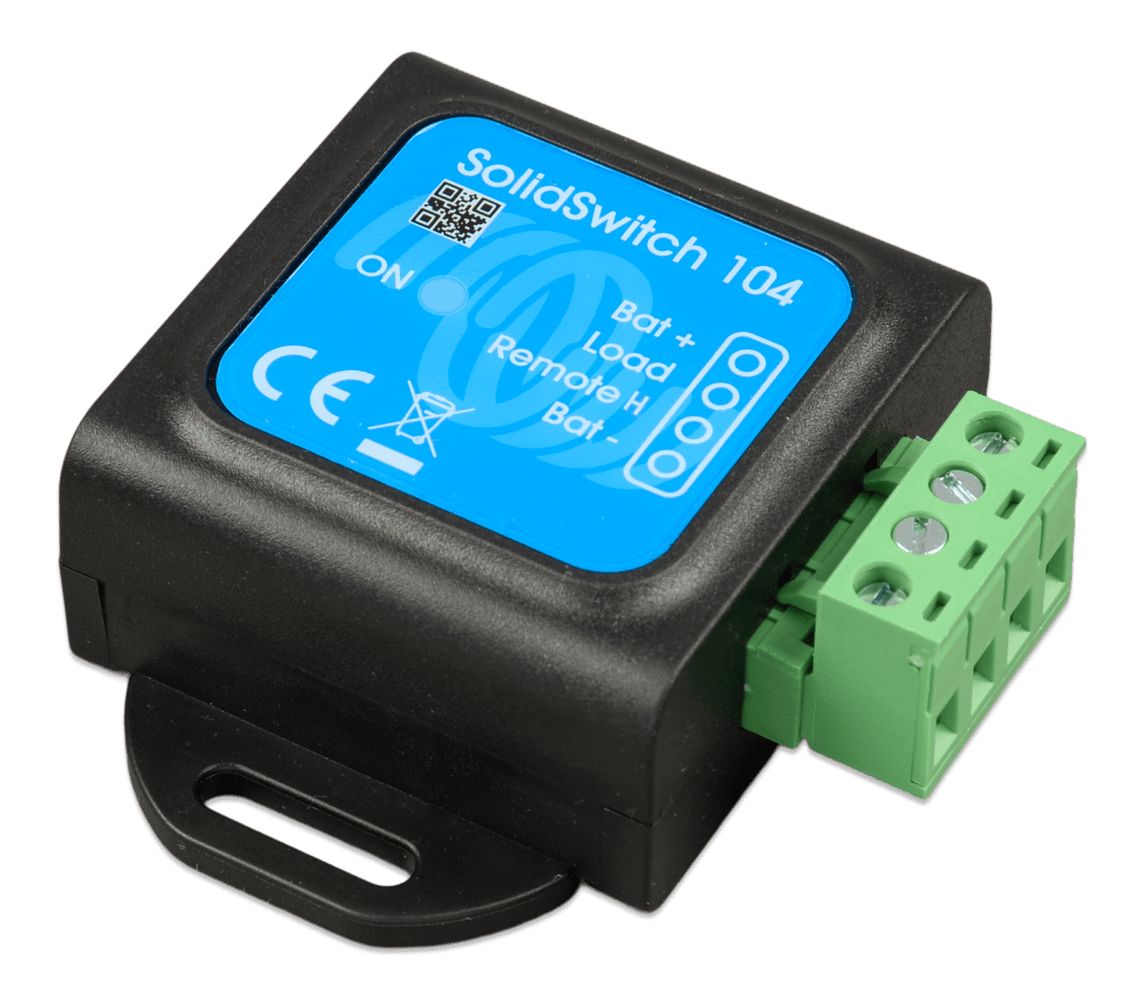

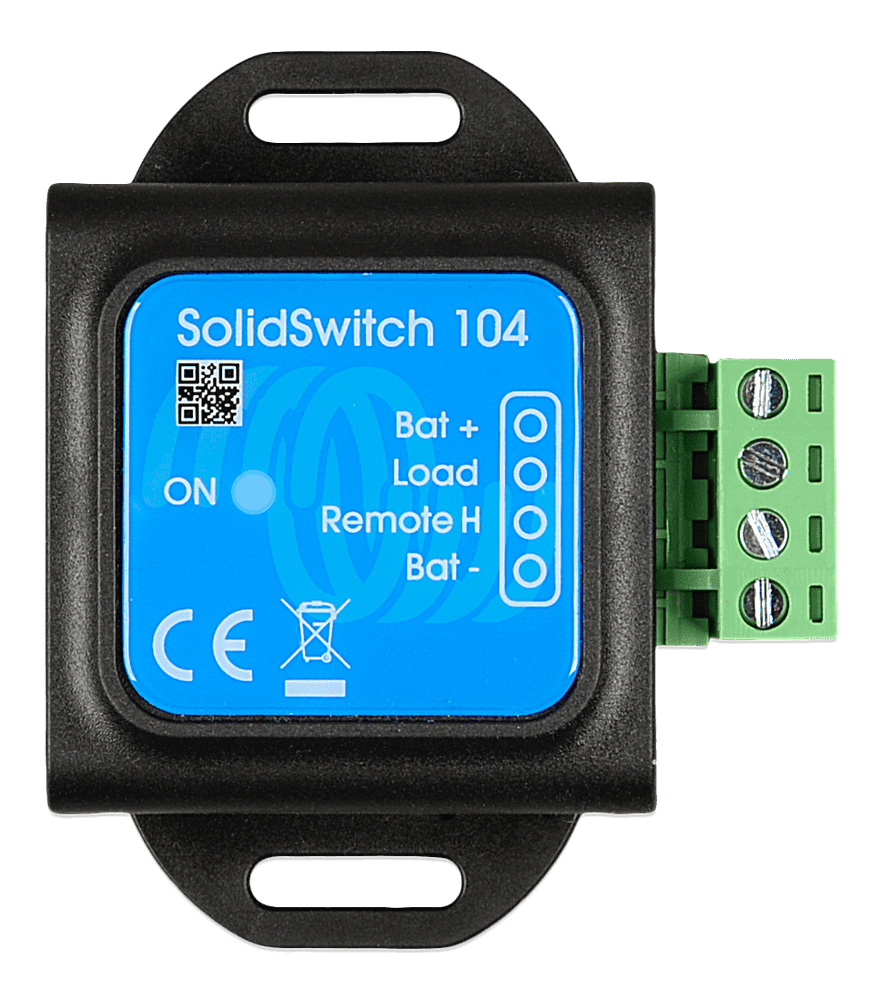

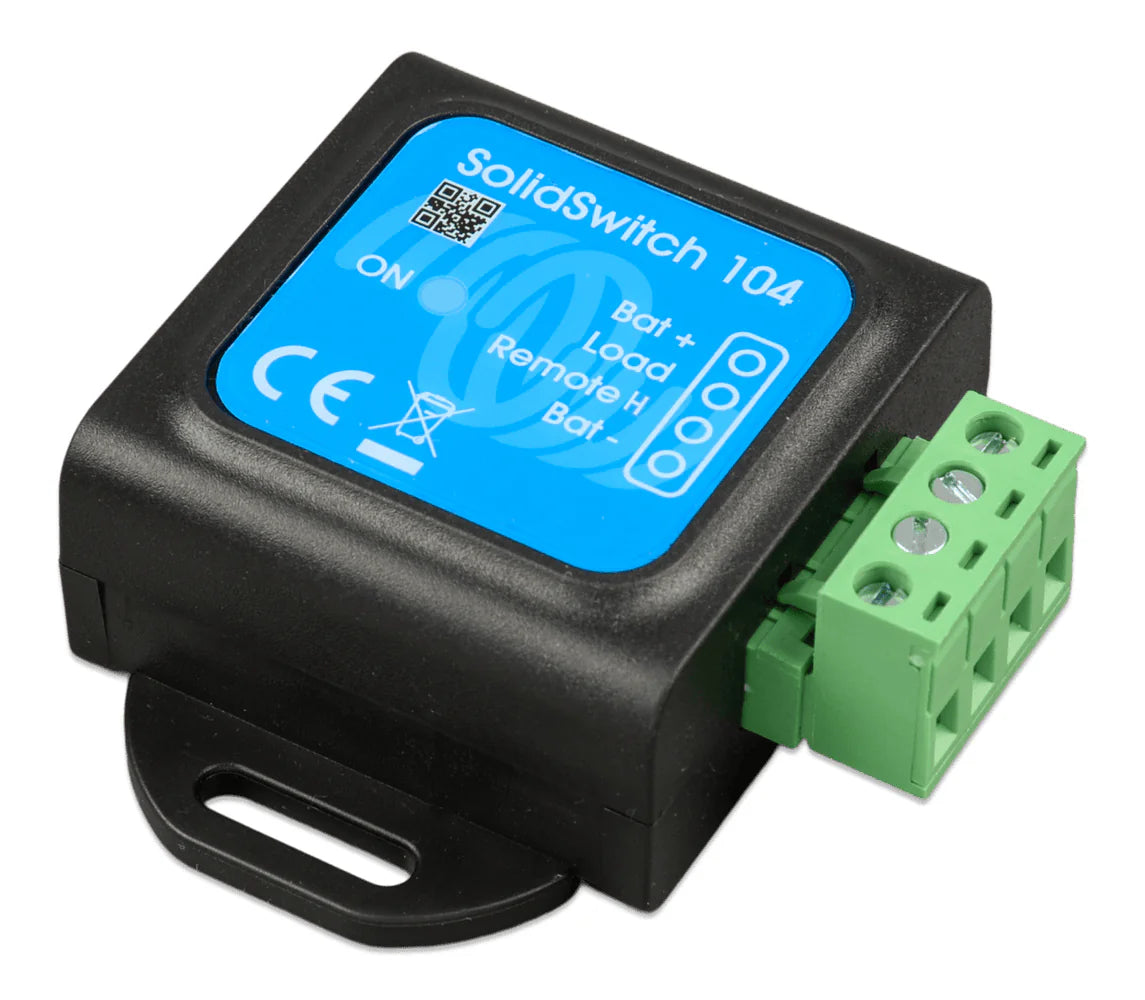

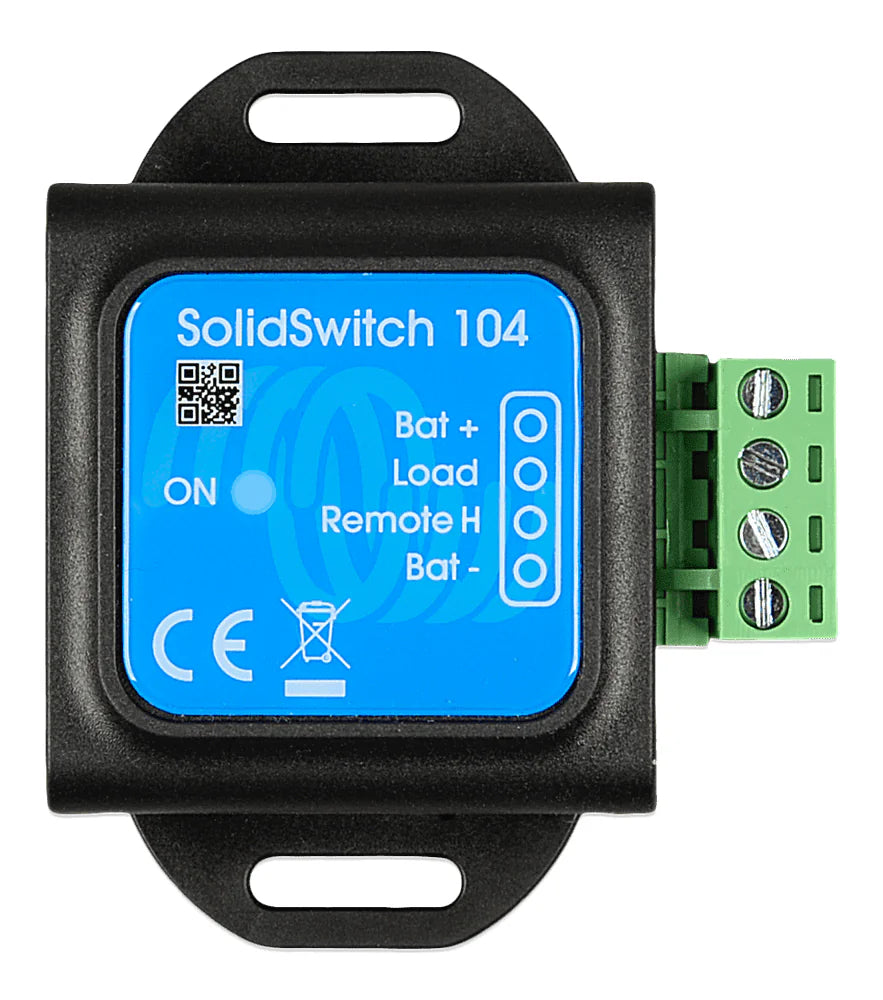

Highlights:QR Code: Scan for product documentation and technical support,Status LED: Indicator light showing device 'ON' status,Screw Terminal Block: Four-pin green connector for battery, load, and remote switch wiring,Upper Mounting Slot: Secure mounting hole for surface installation,Lower Mounting Slot: Secondary mounting point for stable horizontal or vertical attachment.

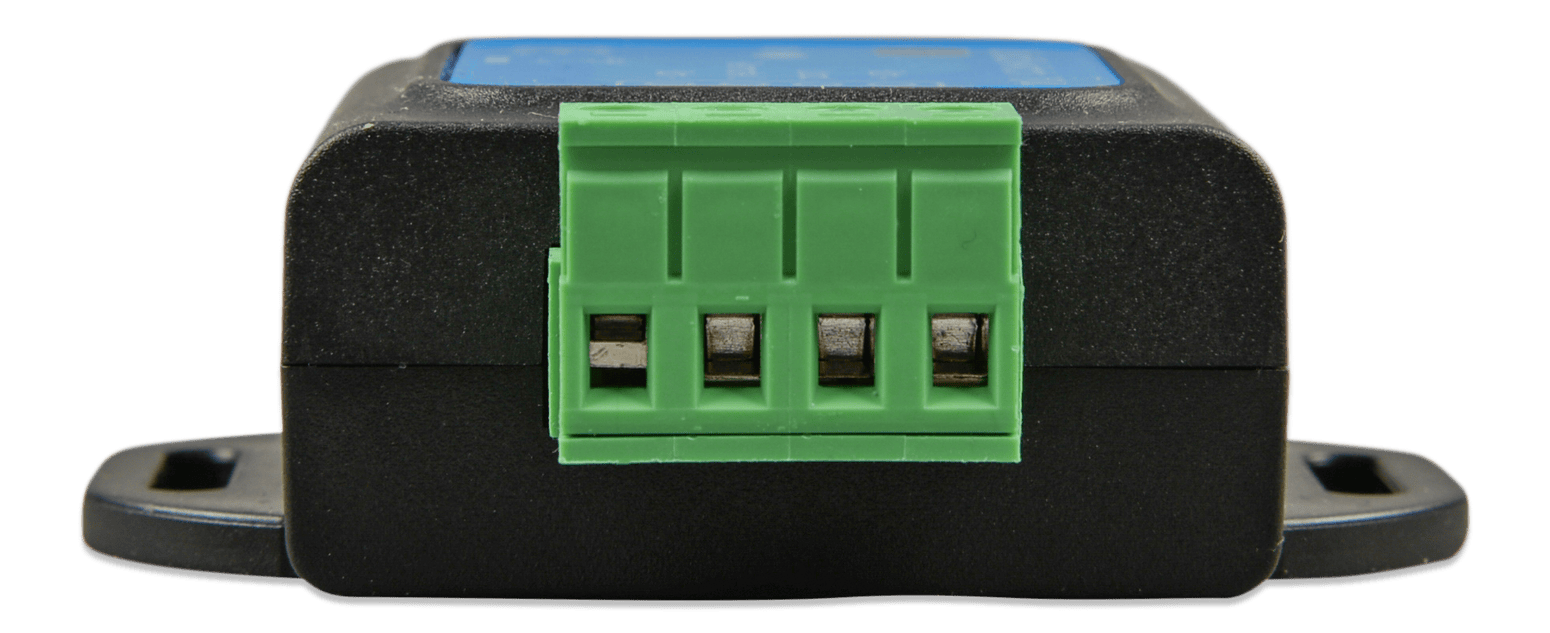

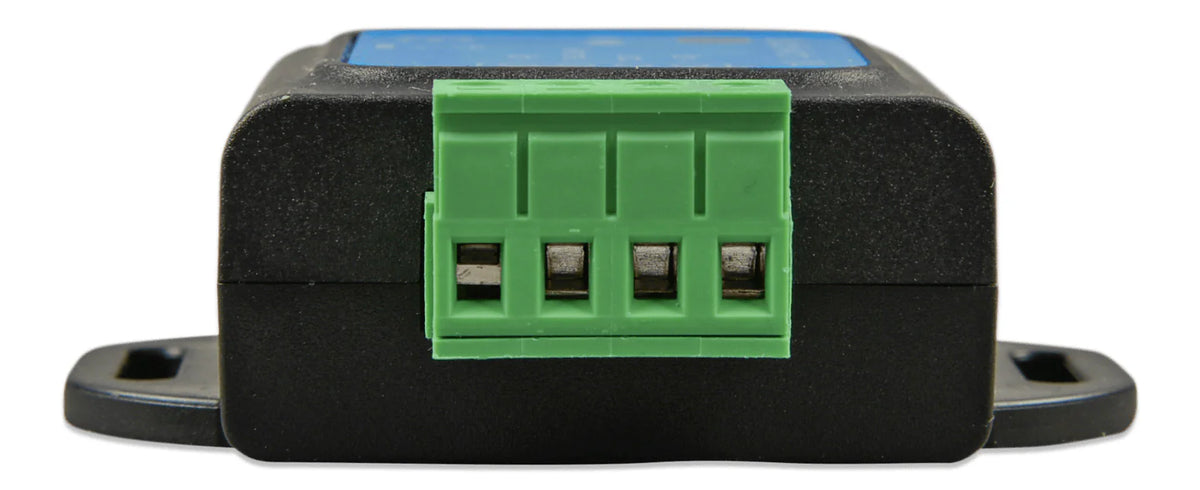

Detailed view of the green pluggable screw terminal block providing secure connections for battery positive, load, remote H, and battery negative.

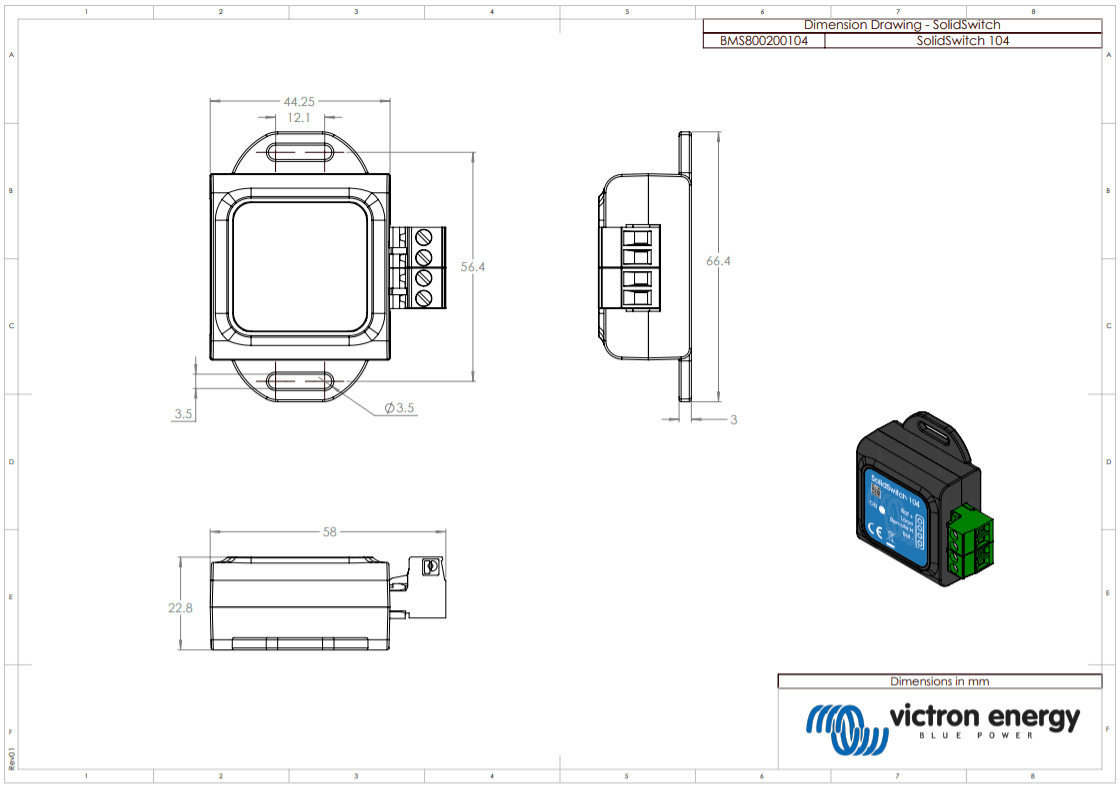

Key features: Total width of 58mm including terminal block, Main body height of 56.4mm, Slim profile depth of 22.8mm, Mounting hole diameter of 3.5mm, Centre-to-centre mounting distance of 66.4mm.
Availability:
In Stock at Victron Warehouse
Allow up to 5 days before dispatch
View all products from Victron
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Victron SolidSwitch 104: Reliable Solid-State DC Load Control
The Victron SolidSwitch 104 is a highly efficient solid-state relay engineered to switch DC loads of up to 70V and 4A. Designed for precision and reliability, it allows you to control higher-power circuits using a low-power digital signal. Whether you are integrating it into a comprehensive battery management system or upgrading an off-grid solar setup, this compact unit offers dependable performance for a wide range of complex DC applications.
Seamless Control for Diverse DC Loads
One of the primary advantages of a solid-state design over a traditional mechanical relay is the absence of moving parts, which eliminates contact wear and arcing. The Victron Solid Switch 104 excels at managing various electrical demands and is fully compatible with resistive, capacitive, and inductive loads. This makes it an ideal solution for driving the coil of a high-power contactor, functioning as a starter relay kill switch, or integrating with a voltage sensing switch to automate load disconnects in sophisticated power systems.
By utilising a low-power control signal, the SolidSwitch significantly reduces the electrical strain on your primary control circuits, such as a BMS (Battery Management System) or a central programmable logic controller. This is especially useful in 12V, 24V, or 48V battery architectures where precise load management is critical for system longevity.
Compact Design and Straightforward Installation
Space is often at a premium in marine, automotive, and off-grid electrical enclosures. The Victron SolidSwitch 104 features a highly compact form factor, measuring just 58mm in total width, 56.4mm in height, and an ultra-slim 22.8mm depth.
Wiring is simplified through a robust four-pin green pluggable screw terminal block, which provides secure connections for the battery positive, load, remote high signal, and battery negative. Furthermore, the unit includes dual mounting slots for stable horizontal or vertical surface installation. A built-in status LED indicator provides immediate visual feedback on the device's operational state, streamlining troubleshooting and system monitoring.
Key Features and Specifications
- Reliably switches DC loads up to 70V and 4A
- Triggered by a low-power digital control signal
- Suitable for resistive, capacitive, and inductive loads (including high-power contactor coils)
- Compact footprint with a pluggable 4-pin screw terminal block for secure wiring
- Clear status LED indicator for quick operational diagnostics
- Functions effectively alongside a Victron battery switch or existing system relays
Important Technical Considerations
When integrating the Victron SolidSwitch 104 into your electrical network, professional wiring practices are essential. Please note that this specific Victron relay is not reverse polarity protected and is not short circuit proof. Installers must ensure correct wiring polarity and implement appropriate inline fusing to protect both the SolidSwitch and the connected load from accidental short circuits or power surges. Proper circuit protection will ensure the long-term reliability of your load management system.
Elevate Your Power Management System
Achieve precise and reliable automated load control in your power network. Equip your solar, marine, or automotive setup with the Victron SolidSwitch 104 today and experience seamless, solid-state load switching.
SPECIFICATIONS
Specifications
| Operating Input Voltage Range (Vbat) | 8 – 70 V DC |
|---|---|
| Maximum Load Current | 4 A |
| Maximum Capacitive Load | Vbat up to 15 V: 1000 µF; 15 V < Vbat < 30 V: 400 µF; 30 V < Vbat < 70 V: 50 µF |
| Maximum Inductive Load | Up to 1 A: 1000 mH; 1 A < I < 2 A: 100 mH; More than 2 A: 10 mH |
| Remote Input (Vin) | Free Floating or Vin < 3 V: Load Off; 3.3 V < Vin < 70 V: Load On |
| Min. Input Current to Switch On | 30 µA |
| Compatible Load Types | Resistive, Capacitive or Inductive (Such as the Coil of a High-Power Contactor) |
| Operating Temperature | -20 to +50 °C; 0 - 120 °F |
| Humidity | Max. 95% (Non-Condensing) |
| Protection Grade | IP20 |
| Material and Colour | ABS, Matt Black |
| Dimensions (H x W x D) | 58 x 66 x 23 mm |
| Reverse Polarity Protection | Not Reverse Polarity Protected |
| Short Circuit Protection | Not Short Circuit Proof |
| SKU: | VIC-BMS800200104 |
| Barcode: | 8719076055556 |
| Model #: | BMS800200104 |
| MPN: | BMS800200104 |
