Victron 185W Monocrystalline Solar Panel

1485x668x30mm series 4a


Victron monocrystalline solar panel with dark cells and silver aluminium frameKey features: Monocrystalline solar cells, Anodised aluminium frame, Pre-wired 900mm cables with MC4 connectors, Tempered solar glass surface, Weatherproof junction box.Technical specifications table for Victron monocrystalline solar panels showing electrical dataTechnical data table showing electrical performance, physical dimensions, and temperature coefficients for a range of Victron monocrystalline solar modules.

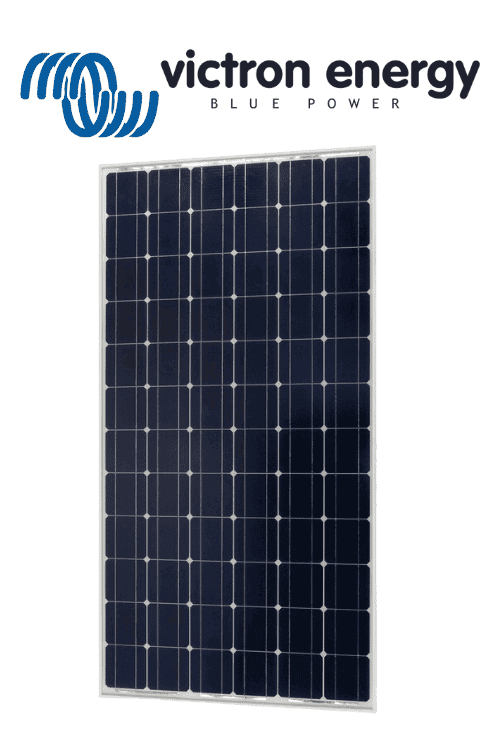

Victron monocrystalline solar panel with dark cells and silver aluminium frame

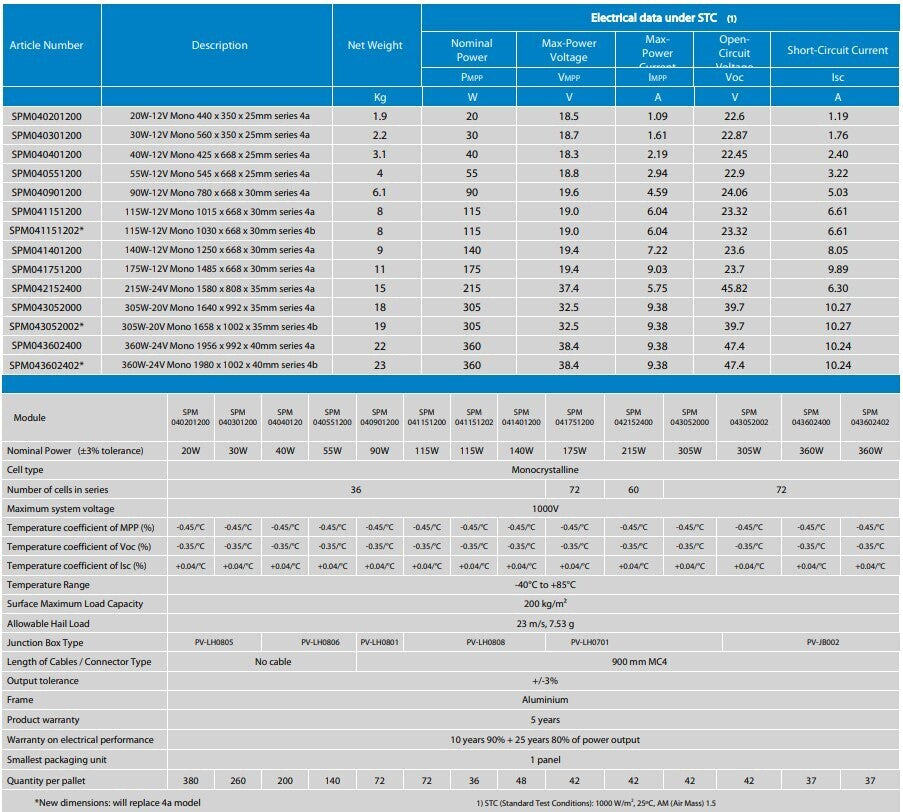

Technical specifications table for Victron monocrystalline solar panels showing electrical data
Regular price $201.97
$224.40
/
Availability: Special Order
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

0

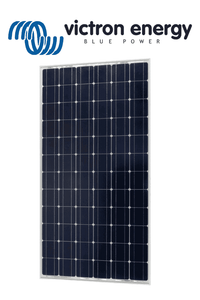

Victron monocrystalline solar panel with dark cells and silver aluminium frame

Victron 185W Monocrystalline Solar Panel

DESCRIPTION

Victron Solar Panel 185W-12V Mono - Series 4a

Premium Monocrystalline Solar Panel from Victron Energy

This Victron Solar Panel 185W-12V Series 4a Monocrystalline Solar Panel delivers industry-leading technology and reliability for sustainable power generation.

Key Features:

  • Premium monocrystalline solar cells with exceptional low-light performance
  • Robust silver anodized aluminium frame for easy roof mounting
  • High-transmission tempered glass for enhanced durability
  • Advanced EVA encapsulation with triple-layer backsheet
  • Sealed, waterproof junction box with integrated bypass diodes
  • Dimensions: 1485 x 668 x 30mm
  • Power output: 12V 185W

Performance Benefits:

  • Superior temperature performance with low voltage-temperature coefficient
  • High sensitivity across the entire solar spectrum
  • Bypass diodes minimize power loss from partial shading
  • Ideal for charging 12V battery systems with PWM or MPPT Controller

Applications:

  • Victron Energy solar panels are engineered for:
  • Charging deep cycle batteries in:
  • Vehicles and boats
  • Motor homes and caravans
  • Camping and marine systems
  • Any 12V battery or battery bank setup

Technical Considerations:

Solar array oversizing is recommended where space permits to ensure optimal battery charging and continuous power supply. System performance varies based on seasonal changes, weather conditions, battery capacity, and power consumption.

Quality Assurance:

Each Victron solar panel includes:

  • 25-year limited warranty on power output and performance
  • 5-year limited warranty on materials and workmanship

Available now for sustainable energy solutions and off-grid power generation requirements.



Buy Victron monocrystalline solar panels now - with fast shipping Australia-wide.

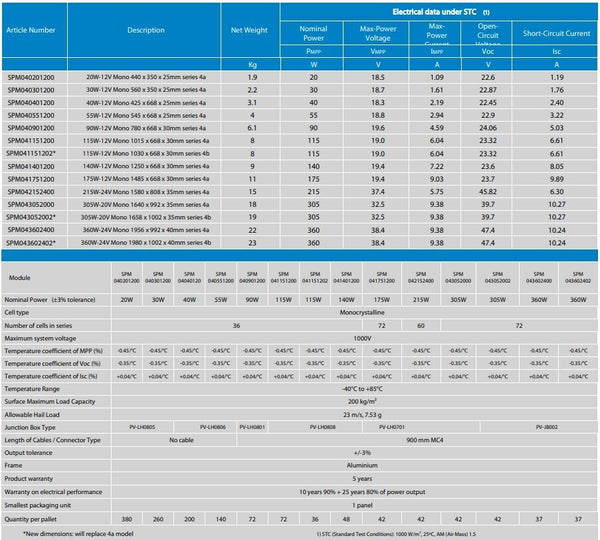

SPECIFICATIONS

Article Number Description Net Weight (Kg) Nominal Power PMPP (W) Max-Power Voltage VMPP (V) Max-Power Current (A) Open-Circuit Voltage VOC (V) Short-Circuit Current ISC (A)
SPM040201200 20W-12V Mono 440 x 350 x 25mm series 4a 1.9 20 18.5 1.09 22.6 1.19
SPM040301200 30W-12V Mono 560 x 350 x 25mm series 4a 2.2 30 18.7 1.61 22.87 1.76
SPM040401200 40W-12V Mono 425 x 668 x 25mm series 4a 3.1 40 18.3 2.19 22.45 2.40
SPM040551200 55W-12V Mono 545 x 668 x 25mm series 4a 4 55 18.8 2.94 22.9 3.22
SPM040901200 90W-12V Mono 780 x 668 x 30mm series 4a 6.1 90 19.6 4.59 24.06 5.03
SPM041151200 115W-12V Mono 1015 x 668 x 30mm series 4a 8 115 19.0 6.04 23.32 6.61
SPM041151202* 115W-12V Mono 1030 x 668 x 30mm series 4b 8 115 19.0 6.04 23.32 6.61
SPM041401200 140W-12V Mono 1250 x 668 x 30mm series 4a 9 140 19.4 7.22 23.6 8.05
SPM041751200 175W-12V Mono 1485 x 668 x 30mm series 4a 11 175 19.4 9.03 23.7 9.89
SPM042152400 215W-24V Mono 1580 x 808 x 35mm series 4a 15 215 37.4 5.75 45.82 6.30
SPM043052000 305W-26V Mono 1640 x 992 x 35mm series 4a 18 305 32.5 9.38 39.7 10.27
SPM043052002* 305W-26V Mono 1956 x 1002 x 35mm series 4b 19 305 32.5 9.38 39.7 10.27
SPM043602400 360W-24V Mono 1956 x 992 x 40mm series 4a 22 360 38.4 9.38 47.4 10.24
SPM043602402* 360W-24V Mono 1980 x 1002 x 40mm series 4b 23 360 38.4 9.38 47.4 10.24



Module SPM 040201200 SPM 040301200 SPM 040401200 SPM 040551200 SPM 040901200 SPM 041151200 SPM 041151202 SPM 041401200 SPM 041751200 SPM 042152400 SPM 043052000 SPM 043052002 SPM 043602400 SPM 043602402
Nominal Power (±3% tolerance) 20W 30W 40W 55W 90W 115W 115W 140W 175W 215W 305W 305W 360W 360W
Cell type Monocrystalline
Number of cells in series 36 72 60 72
Maximum system voltage 1000V
Temperature coefficient of MPP (%) -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C -0.45/°C
Temperature coefficient of Voc (%) -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C -0.35/°C
Temperature coefficient of Isc (%) +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C +0.04/°C
Temperature Range -40°C to +85°C
Surface Maximum Load Capacity 200 kg/m²
Allowable Hail Load 23 m/s, 7.53 g
Junction Box Type PV-LH0805 PV-LH0806 PV-LH0801 PV-LH0808 PV-LH0701 PV-JB002
Length of Cables / Connector Type No cable 900 mm MC4
Output tolerance +/-3%
Frame Aluminium
Product warranty 5 years
Warranty on electrical performance 10 years 90% + 25 years 80% of power output
Smallest packaging unit 1 panel
Quantity per pallet 380 260 200 140 72 72 36 48 42 42 42 42 37 37

*New dimensions: will replace 4a model

1) STC (Standard Test Conditions): 1000 W/m², 25°C, AM (Air Mass) 1.5


SKU: VIC-SPM041851200
Barcode: 8719076064237
Model #: SPM041851200
MPN: SPM041851200

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
