Victron 12/24/48V 85A SmartSolar MPPT 250/85-Tr VE.CAN Bluetooth Solar Charge Controller
Victron 12/24/48V 85A SmartSolar MPPT 250/85-Tr VE.CAN Bluetooth Solar Charge Controller
Ultra-fast MPPT with Bluetooth & VE.Can for 12/24/48V systems
Highlights:Display Option Port: Port for optional plug-in MPPT Control display or Bluetooth dongle,LED Indicators: Visual status for Bulk, Absorption, and Float charging stages,Screw Terminals: Large 35mm² terminals for secure battery and solar PV connections,VE.Can and Remote Ports: Interfaces for parallel synchronisation and remote on/off control,Mounting Brackets: Sturdy side flanges for secure wall mounting in solar installations.
Key features: 12/24/48V Auto Select battery voltage support, Maximum 250V PV open circuit voltage, High-efficiency MPPT tracking up to 98%, Integrated Bluetooth and VE.Can communication, Multi-stage adaptive charge algorithm.

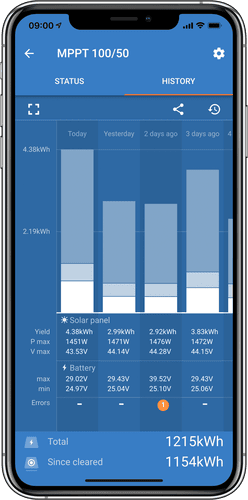

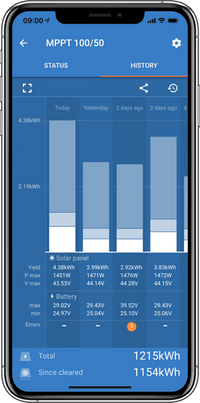

The VictronConnect app provides a detailed 30-day history of solar yield, battery voltage, and charge stages for comprehensive performance tracking.

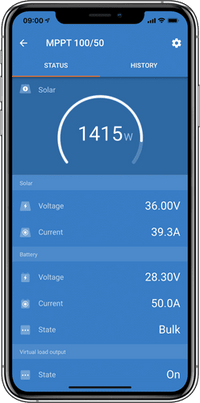

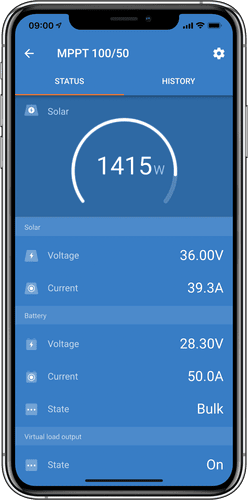

Monitor live solar input and battery charging status directly from your smartphone via integrated Bluetooth connectivity.

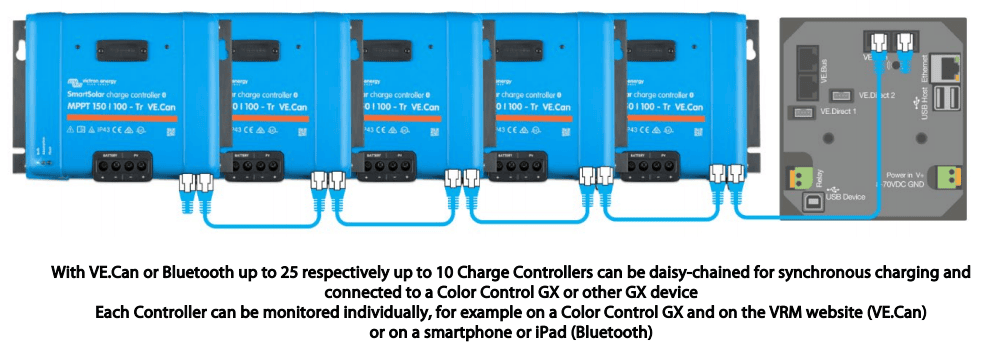

VE.Can allows up to 25 units to be daisy-chained for synchronous charging and seamless integration with GX monitoring devices.
DESCRIPTION

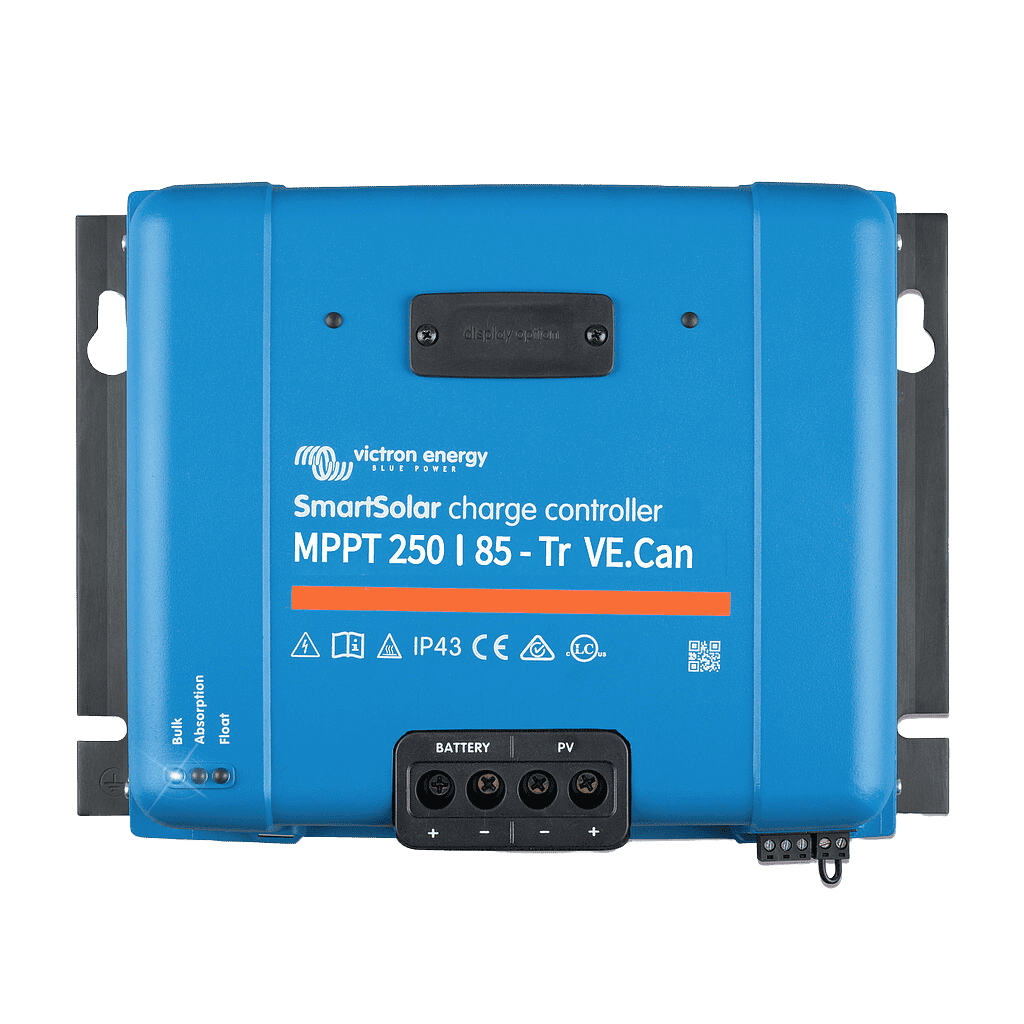

Victron SmartSolar MPPT 250/85-Tr VE.Can Bluetooth Solar Charge Controller
High-Performance MPPT Solar Regulation for 12V, 24V, and 48V Off-Grid Systems
The Victron SmartSolar MPPT 250/85-Tr VE.Can charge controller delivers advanced Maximum Power Point Tracking technology for off-grid solar systems, caravans, marine installations, and remote power applications. Designed to extract the maximum available energy from your solar array, this controller ensures your batteries receive a fast, efficient, and safe charge under all conditions.
With ultra-fast MPPT tracking, the controller adapts to changing light and shading in seconds, maximising yield even on cloudy days or when panels are partially shaded. The high conversion efficiency of up to 99% minimises energy losses, so more of your solar power reaches the battery bank. Built-in Bluetooth and VE.Can communication allow seamless monitoring and parallel synchronisation, making it a future-proof choice for expanding systems.
Advanced Charging Intelligence
The SmartSolar MPPT uses a multi-stage adaptive charge algorithm with eight pre-programmed battery settings, plus a fully user-definable mode. This ensures optimal charging for lead-acid, AGM, gel, and lithium batteries. Temperature compensation adjusts charge voltages based on battery temperature, protecting against overcharging in hot climates and undercharging in cold conditions.
Automatic battery voltage recognition detects 12V, 24V, or 48V systems, simplifying installation and reducing setup errors. The controller also features PV reverse polarity protection, output short circuit protection, and over-temperature protection with power derating, ensuring reliable operation in demanding Australian environments.
Seamless System Integration
Integrated Bluetooth Smart allows wireless configuration and monitoring via the VictronConnect app on your smartphone or tablet. View real-time solar yield, battery voltage, charge current, and historical trends. The VE.Can interface enables parallel synchronised operation of up to 25 units, ideal for large-scale off-grid systems. A programmable relay and remote on/off connector provide flexible control for external devices or system automation.
For advanced monitoring, connect to a GX device or the VRM portal for remote access and firmware updates. The controller also supports an optional plug-on SmartSolar Control Display for local readouts.
Key Features
- Ultra-fast MPPT tracking for maximum energy harvest in all conditions
- Up to 99% conversion efficiency reduces heat and energy loss
- Automatic 12/24/48V battery voltage detection for easy setup
- Multi-stage adaptive charging with user-definable algorithm
- Built-in Bluetooth for VictronConnect app monitoring and configuration
- VE.Can communication for parallel operation of up to 25 controllers
- Programmable relay and remote on/off for system control
- Comprehensive electronic protection including PV reverse polarity and over-temperature
- IP43 protection for electronics, suitable for indoor and sheltered outdoor use
- Heavy-duty 35 mm² (AWG2) terminals for secure, low-resistance connections
Built for Australian Conditions

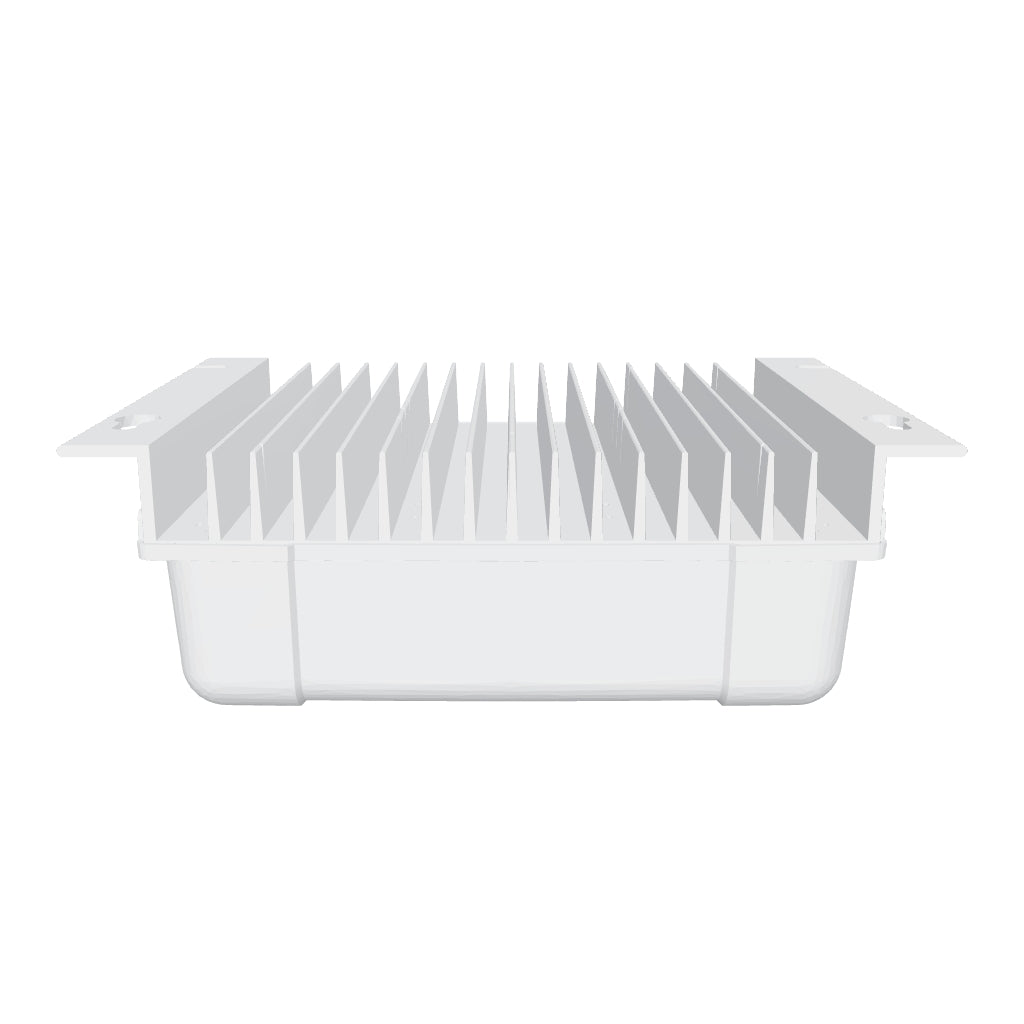

Engineered to operate from -30°C to +60°C with full rated output up to 40°C, this controller handles the extremes of the Australian climate. The natural convection cooling design eliminates noisy fans and reduces maintenance, while the robust aluminium heatsink dissipates heat effectively. With IP43 protection for electronic components and IP22 for the connection area, it resists dust and water spray, making it suitable for installation in caravans, boats, and remote equipment sheds.
Maximise Your Solar Investment
Whether you're powering a caravan solar system, a marine battery bank, or a remote off-grid installation, the Victron SmartSolar MPPT 250/85-Tr VE.Can controller ensures you get the most from your panels. Its advanced tracking and high efficiency mean faster charging and longer battery life, reducing generator run time and fuel costs.
Ready to upgrade your solar charging? Add the Victron SmartSolar MPPT 250/85-Tr VE.Can to your system today and experience reliable, intelligent power management wherever you are.

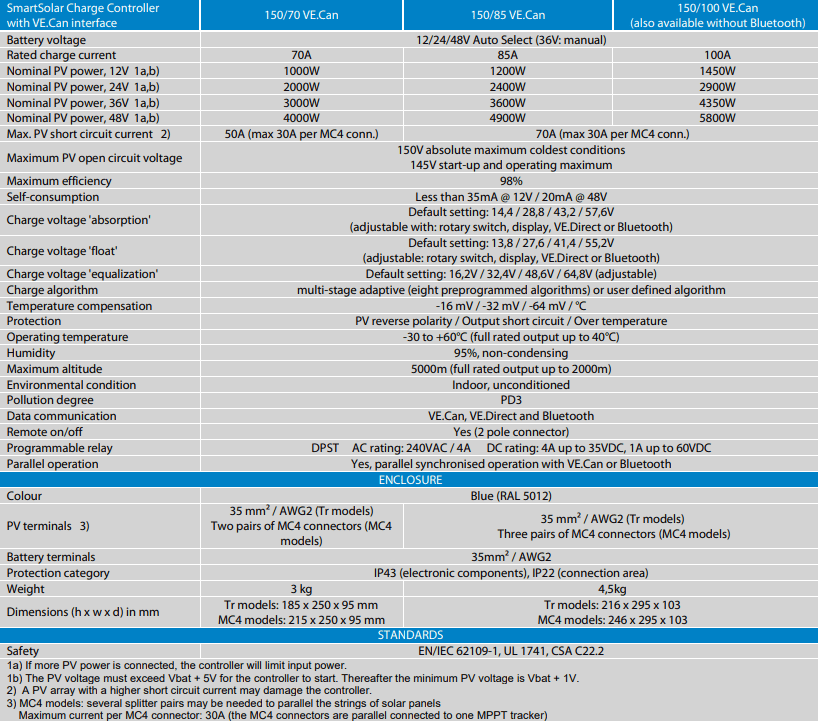

SPECIFICATIONS
Specifications
| Battery Voltage | 12/24/48 V Auto Select (36 V: Manual) |
|---|---|
| Rated Charge Current | 85 A |
| Nominal PV Power, 12 V | 1200 W |
| Nominal PV Power, 24 V | 2400 W |
| Nominal PV Power, 36 V | 3600 W |
| Nominal PV Power, 48 V | 4900 W |
| Max. PV Short Circuit Current | 70 A |
| Maximum PV Open Circuit Voltage | 250 V Absolute Maximum Coldest Conditions / 245 V Start-up And Operating Maximum |
| Maximum Efficiency | 99 % |
| Self-consumption | Less Than 35 mA @ 12 V / 20 mA @ 48 V |
| Charge Voltage 'Absorption' | Default Setting: 14.4 / 28.8 / 43.2 / 57.6 V |
| Charge Voltage 'Float' | Default Setting: 13.8 / 27.6 / 41.4 / 55.2 V |
| Charge Voltage 'Equalization' | Default Setting: 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable) |
| Charge Algorithm | Multi-stage Adaptive (Eight Pre-programmed Algorithms) Or User Defined Algorithm |
| Protection | PV Reverse Polarity / Output Short Circuit / Over Temperature |
| Operating Temperature | -30 To +60 °C (Full Rated Output Up To 40 °C) |
| Data Communication | VE.Can, VE.Direct And Bluetooth |
| Remote On/Off | Yes (2 Pole Connector) |
| Programmable Relay | DPST AC Rating: 240 VAC / 4 A DC Rating: 4 A Up To 35 VDC, 1 A Up To 60 VDC |
| Parallel Operation | Yes, Parallel Synchronised Operation With VE.Can (Max. 25 Units) Or Bluetooth (Max. 10 Units) |
| PV Terminals | 35 mm² / AWG2 (Tr Models) |
| Battery Terminals | 35 mm² / AWG2 |
| Protection Category | IP43 (Electronic Components), IP22 (Connection Area) |
| Weight | 4.5 kg |
| Dimensions (H x W x D) | 216 x 295 x 103 mm |
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| SKU: | VIC-SCC125085411 |
| Barcode: | 8719076050896 |
| Model #: | SCC125085411 |
| MPN: | SCC125085411 |
WARRANTY
Victron Energy Limited Warranty Policy
Direct Customers
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
End-Users
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Warranty
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
- Reversed battery polarity.
- Inadequate connection.
- Mechanical shock or deformation.
- Contact with liquid or oxidation by condensation.
- Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
- Breakage or damage due to lightning.
- Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
- For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
Life Support Policy
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
Warranty on repairs for products outside their warranty period
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
Applicable law
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
Contact details
Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
