Victron 12/24/48V 60A SmartSolar MPPT 250/60-Tr Bluetooth Solar Charge Controller
Victron 12/24/48V 60A SmartSolar MPPT 250/60-Tr Bluetooth Solar Charge Controller
This SmartSolar MPPT controller is shown with the optional plug-in LCD display, providing local monitoring of solar yield, battery voltage, and current without a phone.

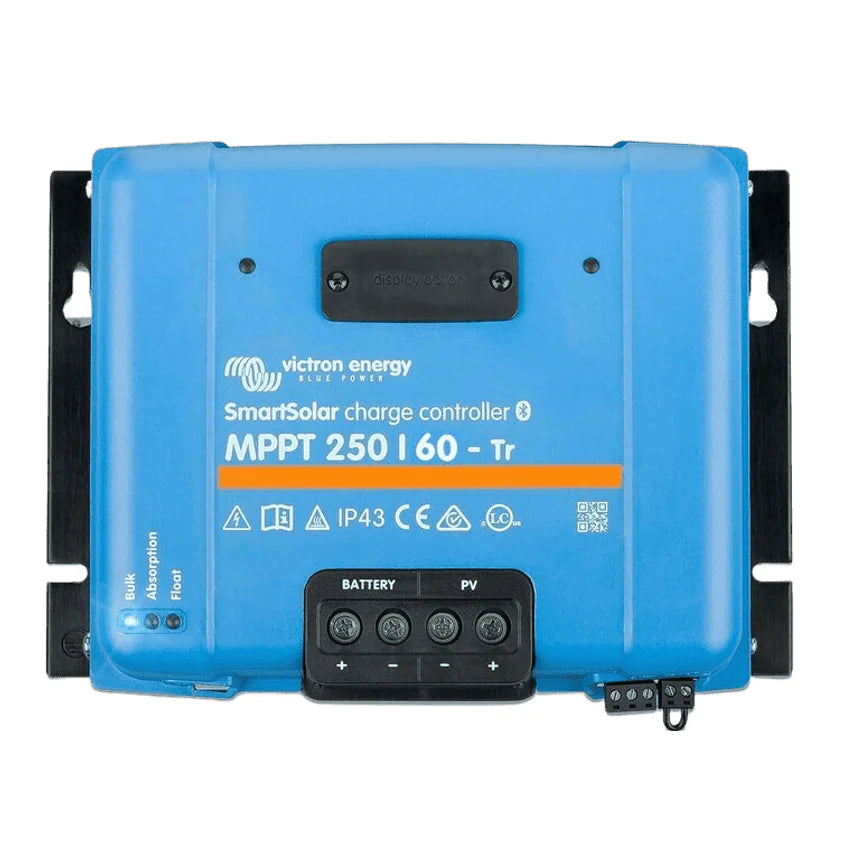

Highlights:Accessory Display Port: Port for optional plug-in LCD display or remote panel,Status LEDs: Indicator lights for Bulk, Absorption, and Float charging stages,Battery Terminals: Screw terminals for connecting the battery bank,Solar PV Terminals: Screw terminals for connecting solar panel arrays,Built-in Bluetooth: Integrated Bluetooth for wireless monitoring via smartphone.
The VictronConnect app provides a wireless interface to monitor solar power production, battery state of charge, and historical performance data via Bluetooth.
DESCRIPTION
Bluetooth Smart built-in
The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers
VE.Direct
For a wired data connection to a Color Control GX, other GX products, PC or other devices
Ultrafast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F).
Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection
Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.
Internal temperature sensor
Compensates absorption and float charge voltage for temperature.
Optional external battery voltage and temperature sensing via Bluetooth
A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
Remote on-off
To connect for example to a VE.BUS BMS
Programmable relay
Can be programmed to trip on an alarm, or other events.
Optional: SmartSolar pluggable LCD display
Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.
*Please note pluggable display to be purchased separately
SPECIFICATIONS
| SKU: | VIC-SCC125060221 |
| Barcode: | 8719076050841 |
| Model #: | SCC125060221 |
| MPN: | SCC125060221 |
