Victron 20m 100A:50mA Current Transformer for MultiPlus-II
Victron 20m 100A:50mA Current Transformer for MultiPlus-II
Enables PowerControl & PowerAssist for Older MultiPlus-II Units

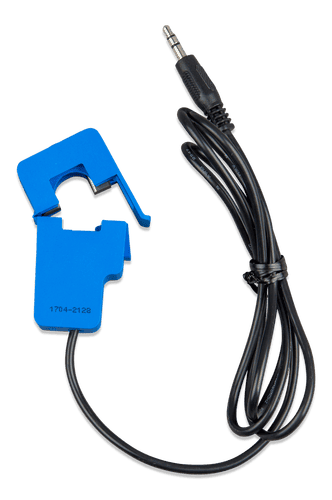

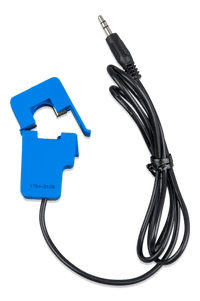

Highlights:Split-Core Sensor: Blue housing that opens to fit around a conductor without disconnecting the circuit,3.5mm Jack: Plug for direct connection to compatible MultiPlus-II inverters,20-Metre Cable: Pre-wired long lead for flexible installation across the site,Clip Latch: Secure locking mechanism for reliable current measurement and safety.

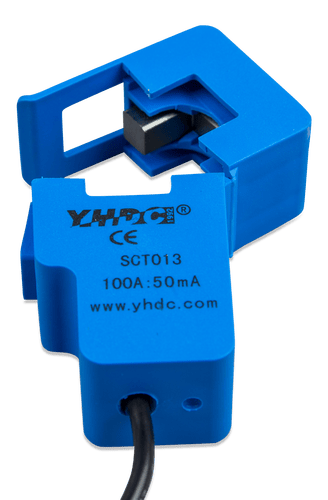

Close-up of the 100A:50mA split-core current transformer showing the internal ferrite core and technical rating labels.
DESCRIPTION
Victron 100A:50mA Split-Core Current Transformer for MultiPlus-II
Precision External Current Sensing for Advanced Energy Management
The Victron Current Transformer enables precise external current sensing for compatible MultiPlus-II and MultiGrid-II inverter-charger systems. With a 100A:50mA ratio, it provides the critical measurement data needed to implement PowerControl and PowerAssist features, preventing generator or shore power overload while maximising available AC power. It also optimises self-consumption by accurately monitoring grid import and export, allowing your system to make intelligent decisions about battery charging and load support.
Unlike generic current transformers, this unit is factory-calibrated with a fixed cable length of 20 m to ensure measurement accuracy. The split-core design allows for quick, non-invasive installation around existing conductors without disconnecting wiring, reducing downtime and installation complexity. The cable is terminated with a standard 3.5 mm headphone jack for direct plug-and-play connection to the MultiPlus-II, eliminating the need for additional adapters or complex wiring.
Key Features
- 100A:50mA transformation ratio for accurate current measurement
- Split-core design for easy retrofitting without disconnecting cables
- Factory-calibrated cable ensures measurement precision
- 3.5 mm jack for direct connection to MultiPlus-II and MultiGrid-II
- Enables PowerControl and PowerAssist to prevent overload and optimise AC input
- Supports self-consumption optimisation through external current sensing
- Rugged construction for reliable performance in demanding environments
Reliable Performance for Critical Power Systems
Designed for single-phase monitoring, this current transformer measures current only, not voltage, and is intended for use with older MultiPlus-II units that require an external sensor for advanced functions. The robust housing and high-quality ferrite core ensure stable, repeatable measurements, reducing the risk of system errors caused by inaccurate current data. By providing real-time feedback to the inverter-charger, it helps protect your installation from unexpected power interruptions and improves overall energy efficiency.
Applications
This current transformer is essential for installations where the MultiPlus-II must dynamically manage AC input current, such as in marine, RV, and off-grid backup systems. It is particularly valuable when connected to a limited shore power supply or generator, where exceeding the available current could trip breakers or damage equipment. By enabling PowerAssist, the inverter can supplement the AC source with battery power during peak demand, ensuring uninterrupted operation of critical loads.
Installation Notes
The cable length is calibrated at the factory and must not be extended or shortened, as this will affect measurement accuracy. The split-core clamp simply opens and closes around the conductor, making it suitable for both new and retrofit installations. Ensure the core is fully closed and latched for reliable operation.
Take Control of Your Energy
Equip your MultiPlus-II system with the precision it needs to deliver reliable, efficient power management. Order the Victron Current Transformer today and unlock the full potential of your inverter-charger.
SPECIFICATIONS
Specifications
| Model | Current Transformer 100 A:50 mA |
|---|---|
| Wire Length | 20 m |
| Voltage | 50 mV |
| Current Rating | 100 A |
| Wire Termination | Headphone jack |
| Use For | Older MultiPlus-II units |
| Monitoring Type | Single-phase only |
| Measured Quantity | Current, not voltage |
| Function | Implement PowerControl and PowerAssist, and to optimize self-consumption using external current sensing |
| SKU: | VIC-CTR110002050 |
| Barcode: | 8719076057161 |
| Model #: | CTR110002050 |
| MPN: | CTR110002050 |
