Victron 12/24V 20A BlueSolar PWM-LCD&USB (DUO Dual Battery) Solar Charge Controller

Dual Battery PWM Controller with LCD, USB & Temp Sensor - 20A


Regular price $93.29
$105.60
/
Availability: In Stock
View all products from Victron

Shipping Calculated in Cart | Add to cart and enter your postcode to see live shipping options.

Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa

2

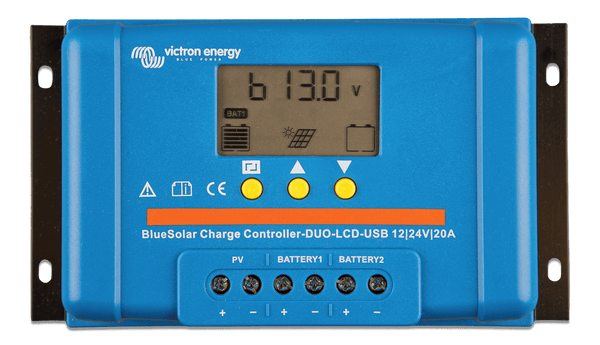

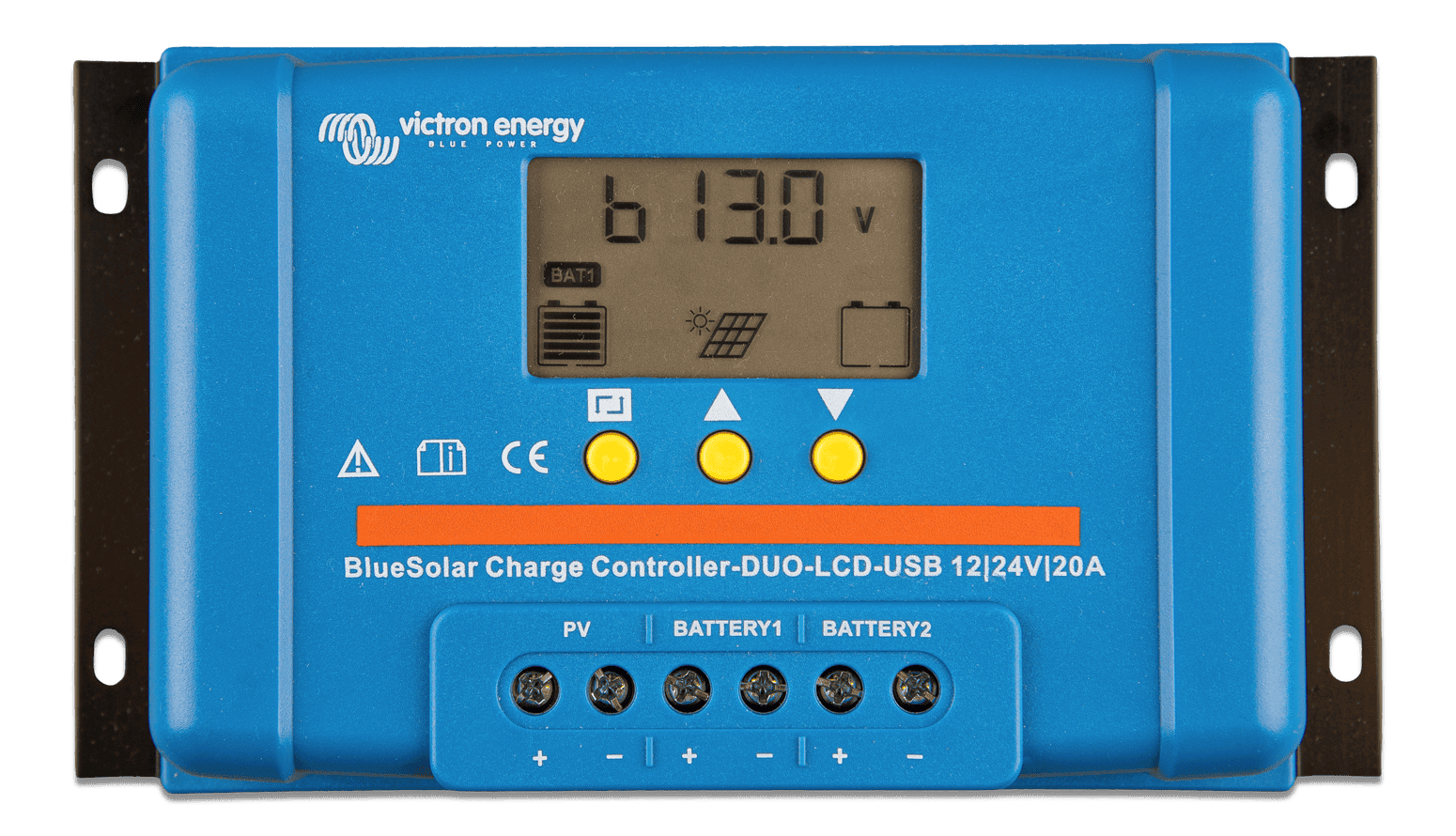

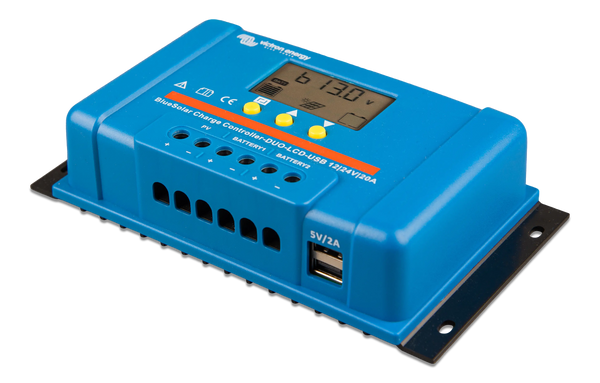

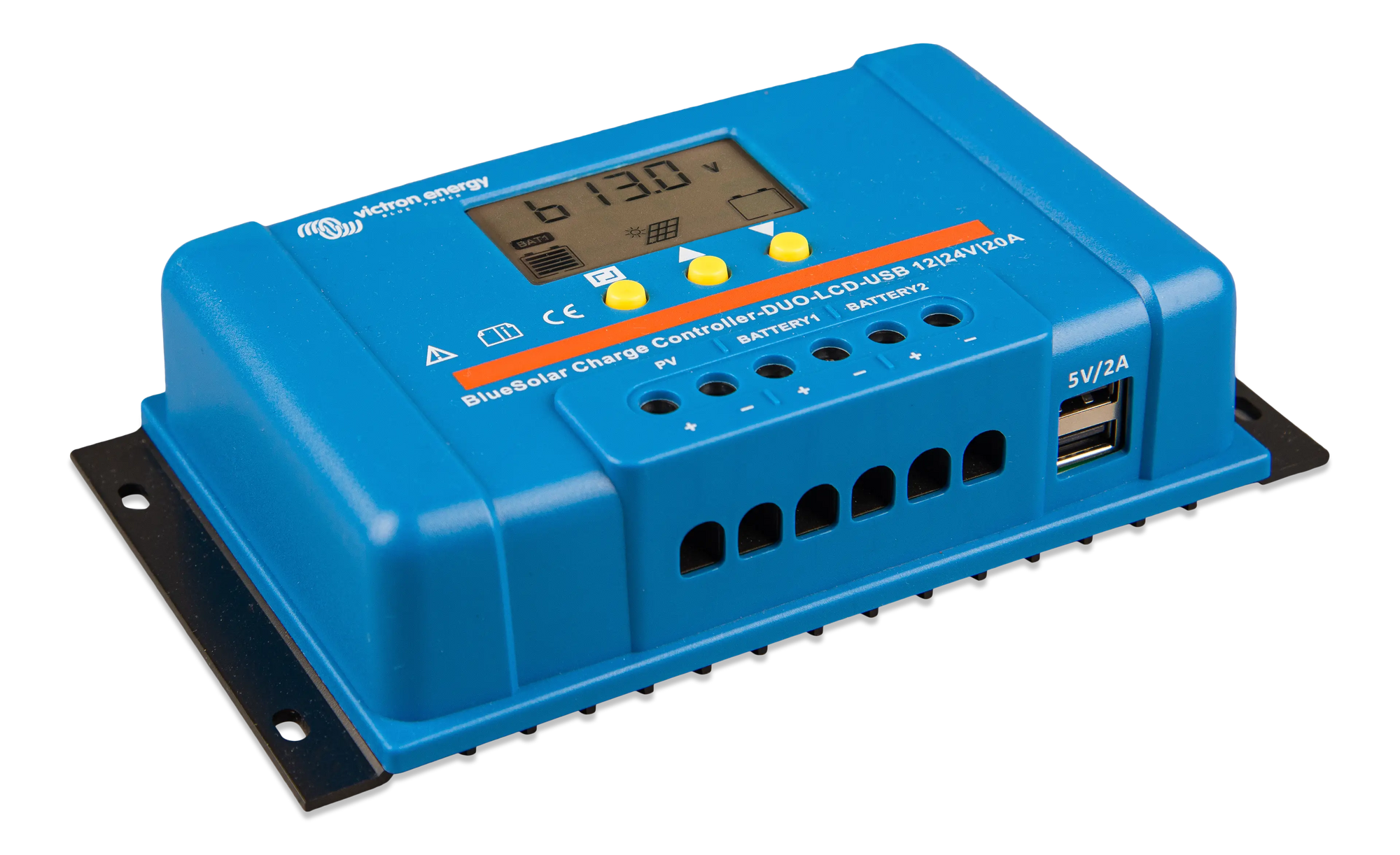

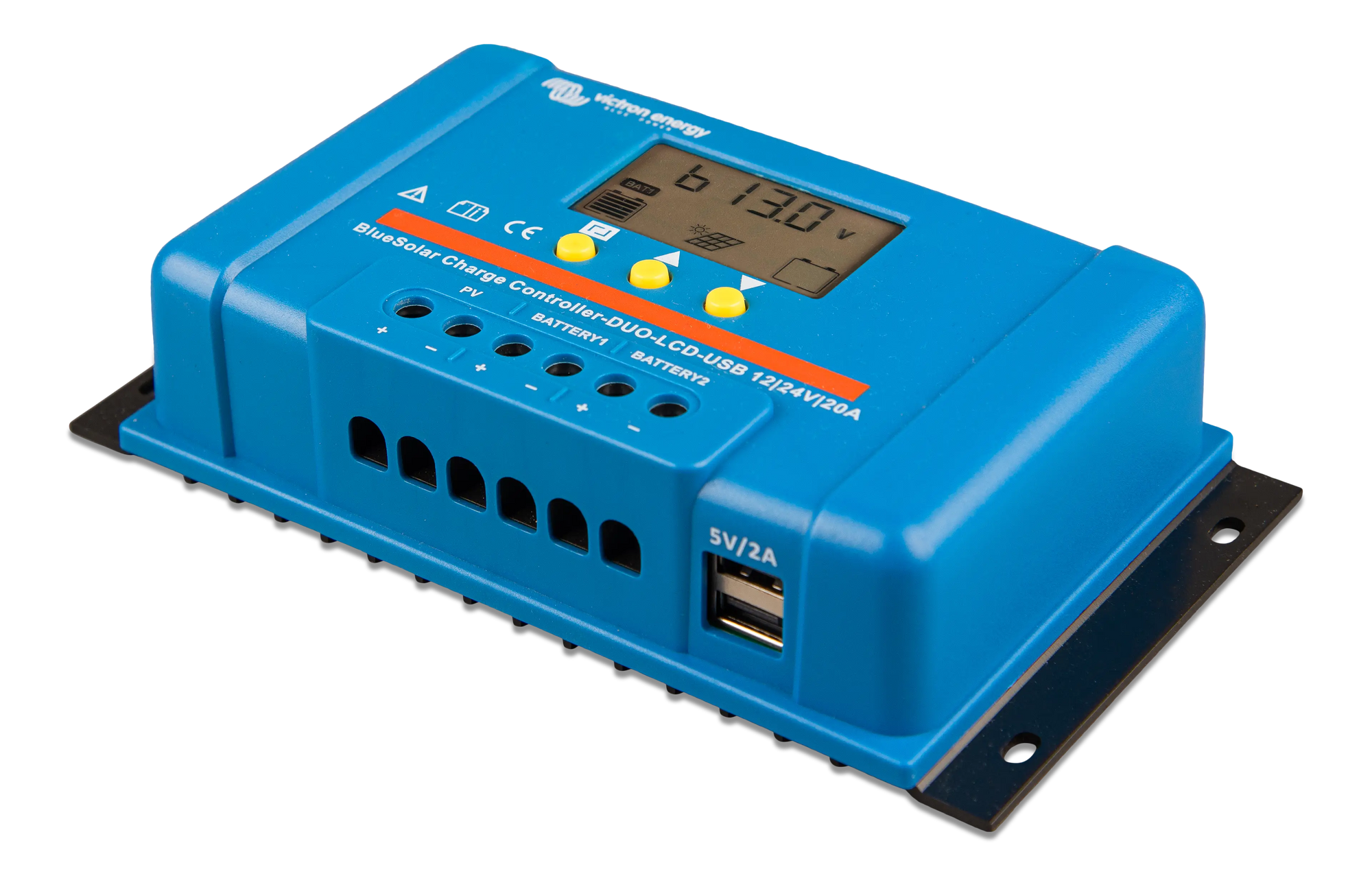

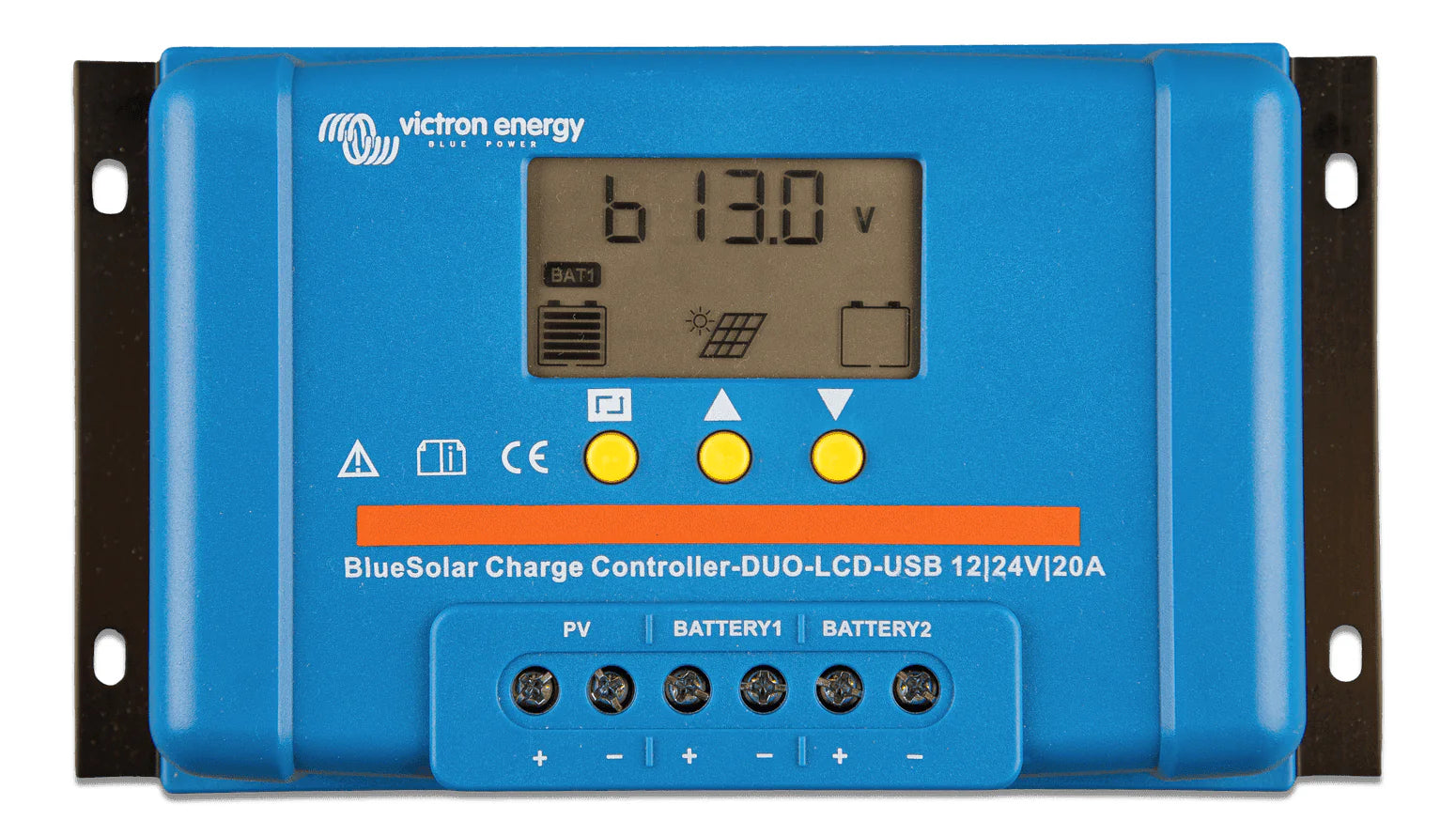

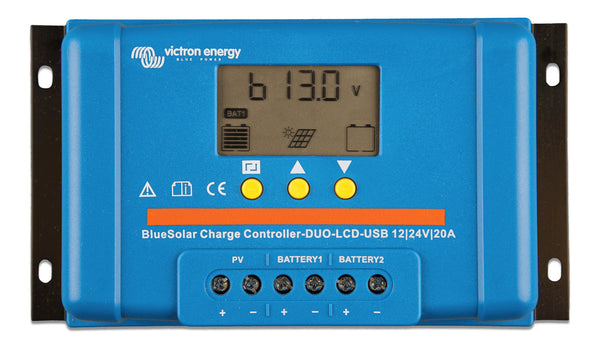

Front view of Victron BlueSolar PWM-DUO charge controller with LCD display and terminal ports

Victron 12/24V 20A BlueSolar PWM-LCD&USB (DUO Dual Battery) Solar Charge Controller

DESCRIPTION

Victron BlueSolar PWM-DUO LCD&USB 12/24V 20A: Dual Battery Solar Charge Controller with Intelligent Load Management

Professional-Grade Solar Regulation for Independent Dual Battery Charging

The Victron BlueSolar PWM-DUO LCD&USB 12/24V 20A is a sophisticated PWM solar charge controller engineered to charge two separate battery banks from a single solar array. Unlike standard single-bank controllers, the DUO model features a programmable charge current ratio, allowing precise distribution of available solar energy between a primary service battery and a secondary starter or auxiliary battery. This makes it an ideal solution for 4WD dual battery systems, marine installations, caravans, and off-grid setups where maintaining both a deep-cycle house battery and a cranking battery is critical.

With automatic 12/24V system voltage detection, a backlit LCD display for real-time monitoring, and dual integrated 5V 2A USB ports for direct device charging, this controller combines essential power management functions in a compact, IP20-rated chassis. The included remote battery temperature sensor enables voltage compensation based on actual battery temperature, promoting longer battery life and safer charging in fluctuating environmental conditions.

Key Features

  • Dual battery charging with programmable current ratio for independent management of two battery banks
  • Three-stage charging (bulk, absorption, float) with fully adjustable voltage setpoints for lead-acid and lithium (LiFePO4) batteries
  • Integrated LCD display for clear visibility of system status, battery voltage, and charge current

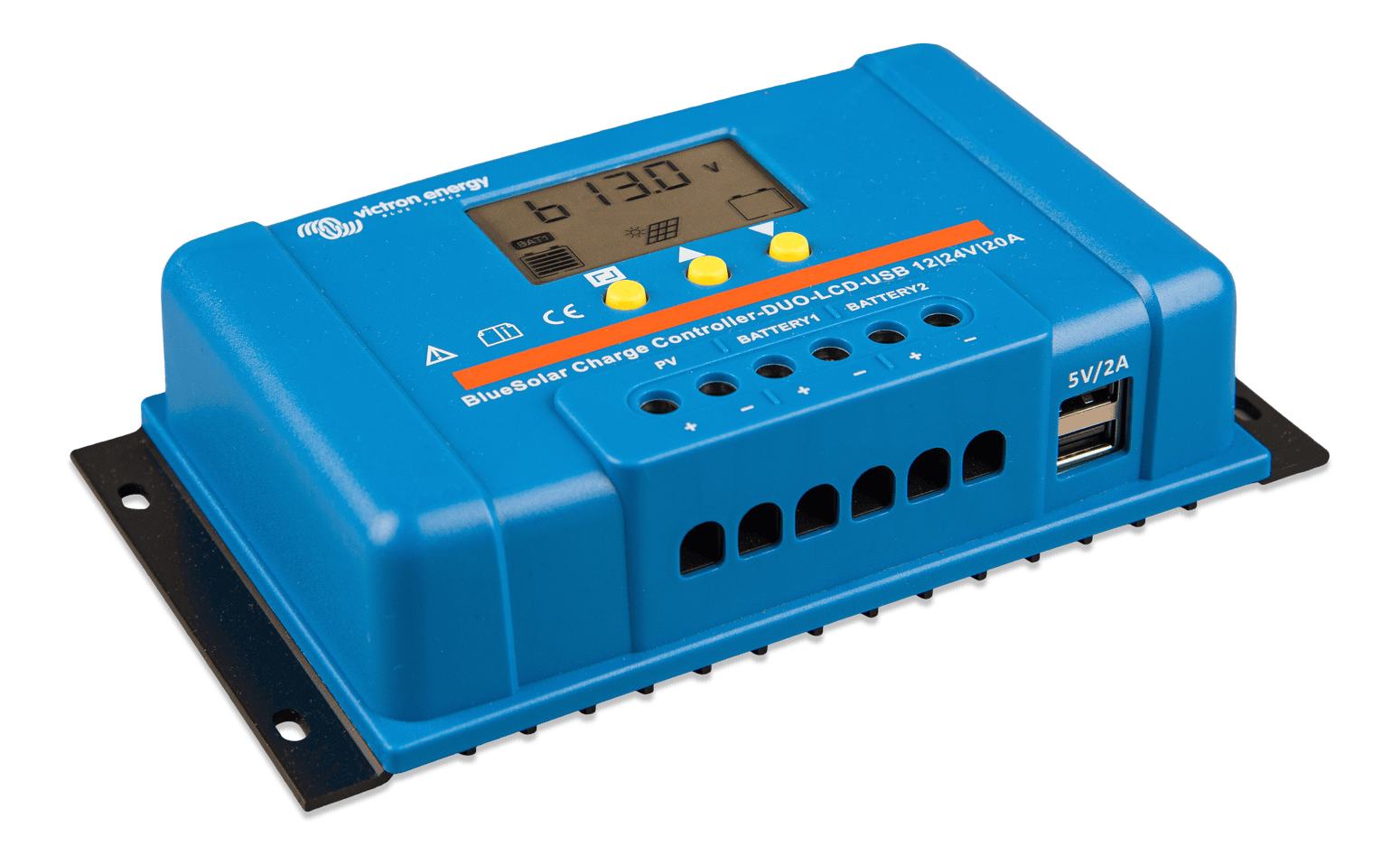

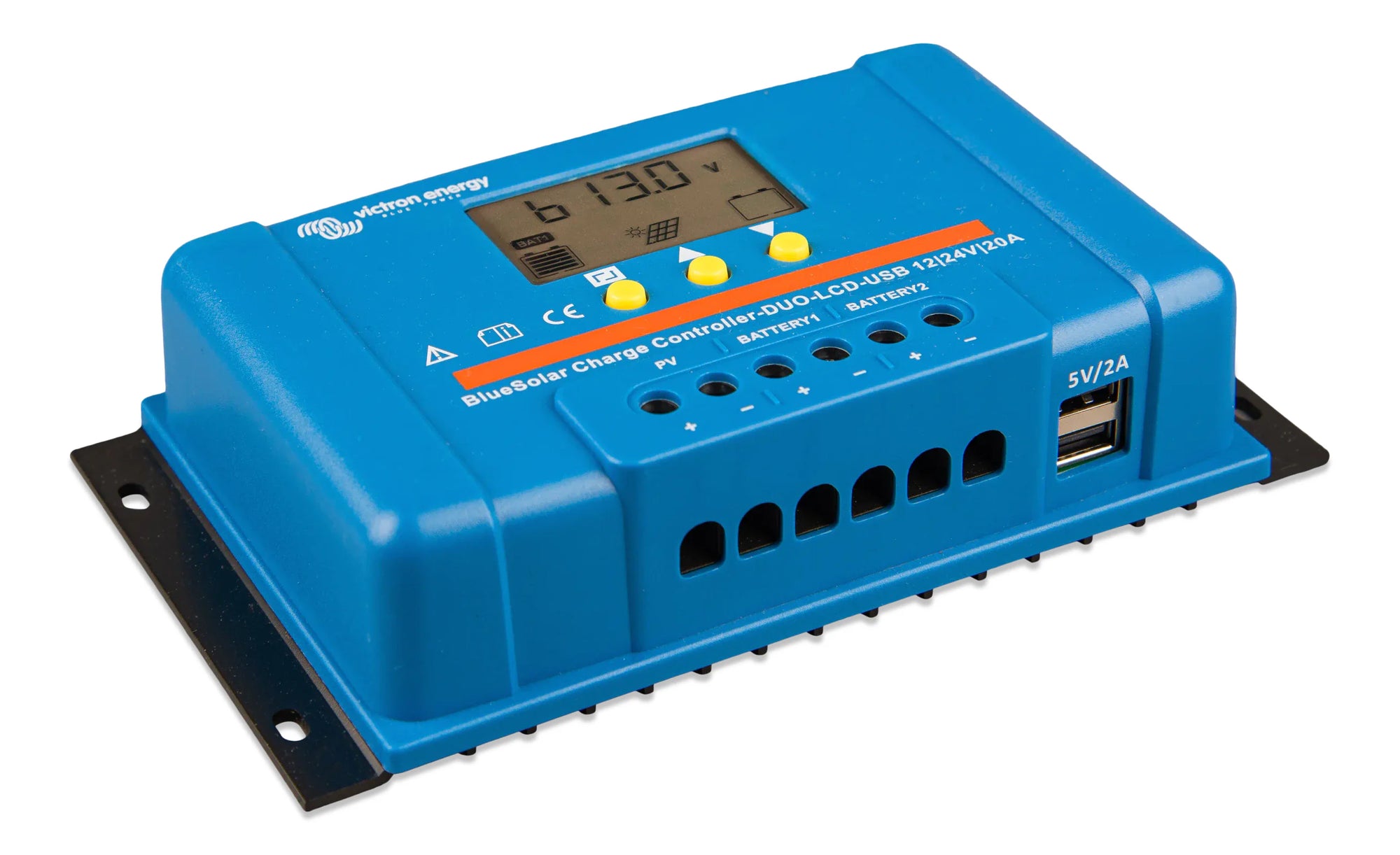

  • Dual 5V 2A USB outputs for convenient charging of phones, tablets, and other USB-powered devices
  • Programmable load output with low-voltage disconnect and manual control, protected against overload and short circuit
  • Comprehensive electronic protections: reverse polarity (battery and solar), over-temperature, and lightning surge protection

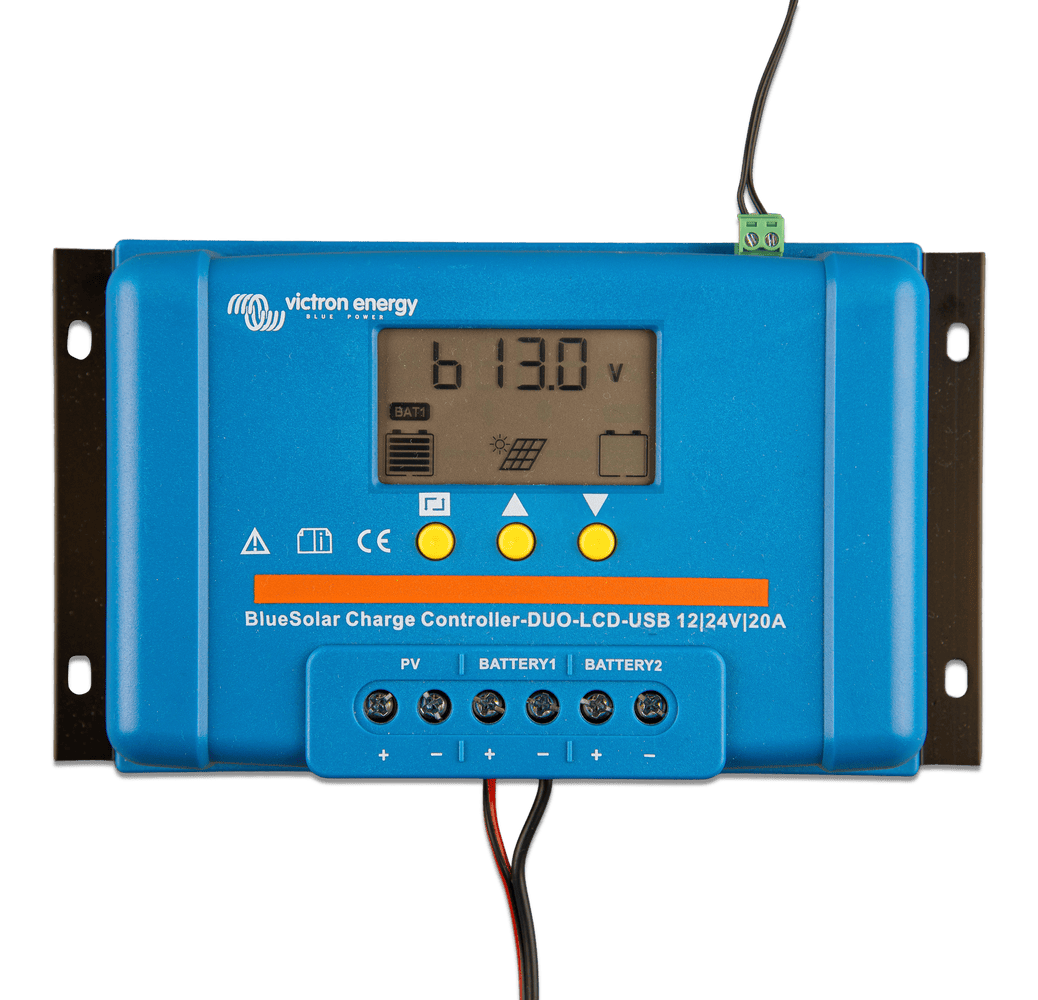

  • Included remote temperature sensor for accurate temperature-compensated charging
  • Lighting control function with fully programmable timer for dusk-to-dawn or timed lighting applications

Advanced Dual Battery Management

In many mobile and off-grid power systems, a single solar array must service both a deep-cycle battery for appliances and a starter battery for engine cranking. The BlueSolar PWM-DUO addresses this by allowing the user to set a custom charge current split (e.g., 80% to house battery, 20% to starter battery). This prevents overcharging of the starter battery while ensuring the service battery receives the bulk of available solar energy. The controller automatically detects 12V or 24V nominal system voltage, simplifying installation and reducing the risk of misconfiguration.

Intelligent Charging and Load Control

The controller employs a three-stage charging algorithm (bulk, absorption, float) that can be fully programmed via the onboard LCD interface and push buttons. This allows precise tailoring of charge voltages to suit flooded lead-acid, AGM, gel, or LiFePO4 battery types. The load output terminal can be configured for low-voltage disconnect to protect batteries from deep discharge, or used as a programmable lighting controller with dusk-to-dawn functionality. The dual USB ports provide a regulated 5V output independent of the load terminals, enabling direct charging of mobile devices without additional adapters.

Robust Protection and Reliability

Victron's BlueSolar PWM series is built for demanding environments. The DUO model includes electronic protection against reverse polarity connection of both the solar array and battery, preventing damage during installation. Over-temperature protection ensures safe operation up to 55°C ambient at full load, while the common negative grounding simplifies integration with existing vehicle or marine electrical systems. The IP20 enclosure is designed for indoor or protected mounting, with 16 mm² (AWG6) terminals that accept substantial cable sizes for low-loss connections.

Applications

  • 4WD and camping dual battery systems: Maintain starting battery charge while powering fridge, lights, and accessories from the auxiliary battery
  • Marine and boating: Keep both house and engine batteries topped up from solar, with corrosion-resistant construction suitable for protected marine environments
  • Caravans and RVs: Charge the house battery bank and vehicle starter battery simultaneously during storage or off-grid camping
  • Remote off-grid cabins: Manage two separate battery banks for redundancy or different voltage requirements
  • Lighting control: Use the programmable load output for automatic solar-powered lighting in sheds, signage, or security applications

Why Choose Victron BlueSolar PWM-DUO?

Compared to generic PWM controllers, the Victron BlueSolar PWM-DUO offers superior build quality, advanced programmability, and the reliability expected from a leading power electronics manufacturer. The inclusion of a remote temperature sensor, dual USB ports, and a clear LCD interface reduces the need for additional components and monitoring equipment. Its ability to charge two batteries independently from a single solar array eliminates the complexity and cost of installing separate charge controllers or battery isolators, making it a cost-effective solution for dual battery solar charging.

With a maximum solar input voltage of 28V for 12V systems and 55V for 24V systems, this controller is compatible with standard 36-cell and 72-cell solar panels respectively. The 20A rated charge current supports solar arrays up to approximately 280W at 12V or 560W at 24V, providing ample capacity for most small to medium off-grid power systems.

Take Control of Your Dual Battery Solar System

Equip your 4WD, boat, or off-grid setup with the Victron BlueSolar PWM-DUO LCD&USB 12/24V 20A and experience reliable, programmable dual battery charging from a trusted brand. Order today to simplify your solar power management and keep both your batteries ready for action.


SKU: Vic-SCC010020060

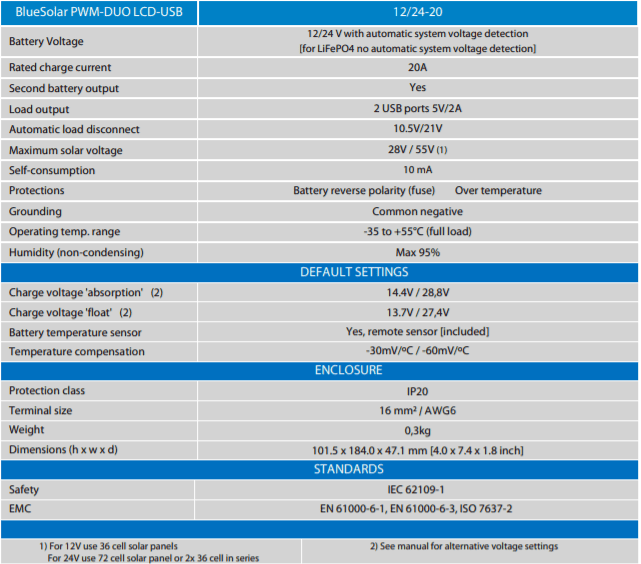

SPECIFICATIONS

Specifications

ModelBlueSolar PWM-DUO LCD-USB 12/24-20
Battery Voltage12/24 V With Automatic System Voltage Detection [For LiFePO4 No Automatic System Voltage Detection]
Rated Charge Current20 A
Second Battery OutputYes
Load Output2 USB Ports 5 V / 2 A
Automatic Load Disconnect10.5 V / 21 V
Maximum Solar Voltage28 V / 55 V
Self-Consumption10 mA
ProtectionsBattery Reverse Polarity (Fuse), Over Temperature
GroundingCommon Negative
Operating Temp. Range-35 to +55°C (Full Load)
Humidity (Non-Condensing)Max 95%
Charge Voltage 'Absorption'14.4 V / 28.8 V
Charge Voltage 'Float'13.7 V / 27.4 V
Battery Temperature SensorYes, Remote Sensor [Included]
Temperature Compensation-30 mV/°C / -60 mV/°C
Protection ClassIP20
Terminal Size16 mm² / AWG6
Weight0.3 kg
Dimensions (H x W x D)101.5 x 184.0 x 47.1 mm [4.0 x 7.4 x 1.8 inch]
SafetyIEC 62109-1
EMCEN 61000-6-1, EN 61000-6-3, ISO 7637-2

SKU: Vic-SCC010020060
Barcode: 8719076046219
Model #: SCC010020060
MPN: SCC010020060

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
