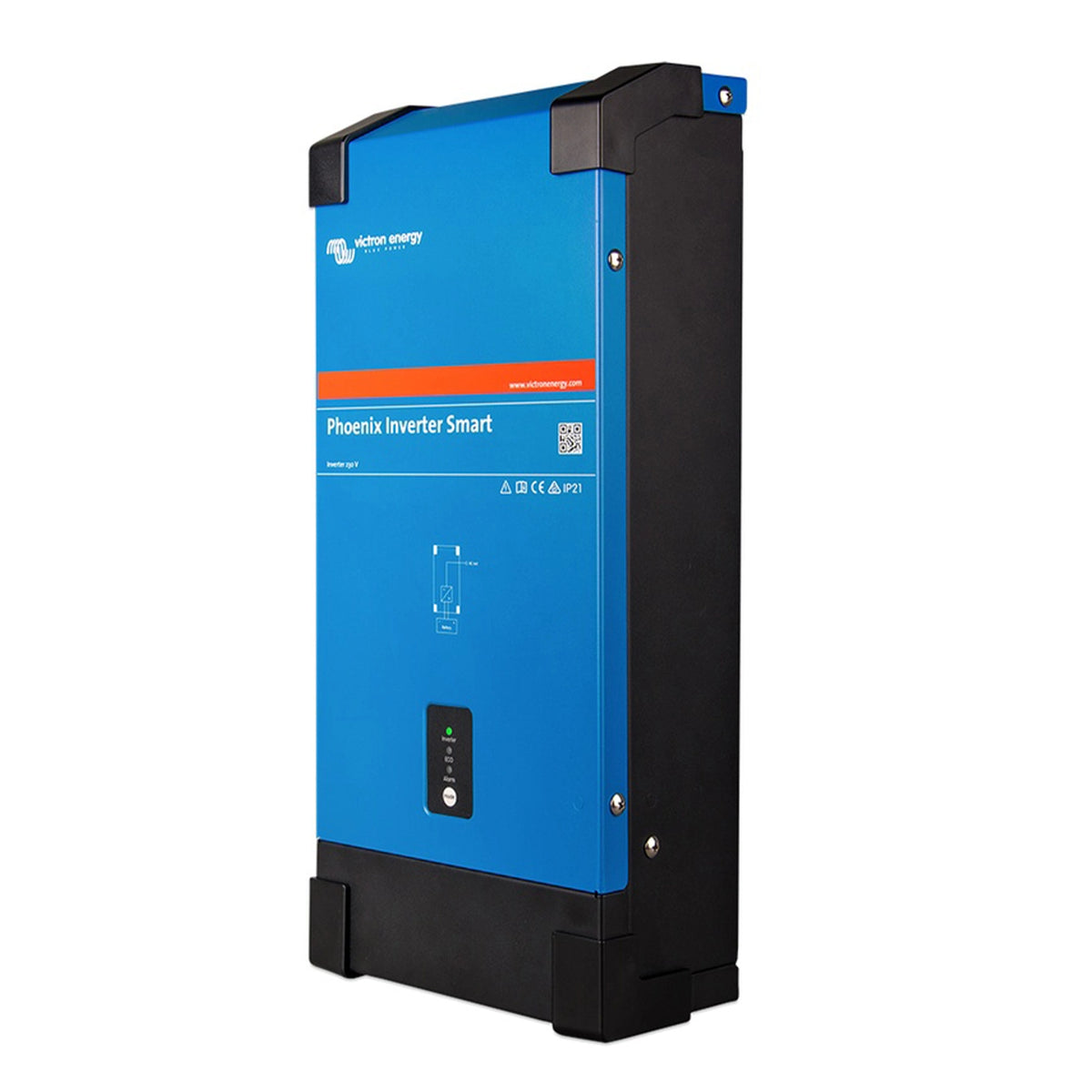

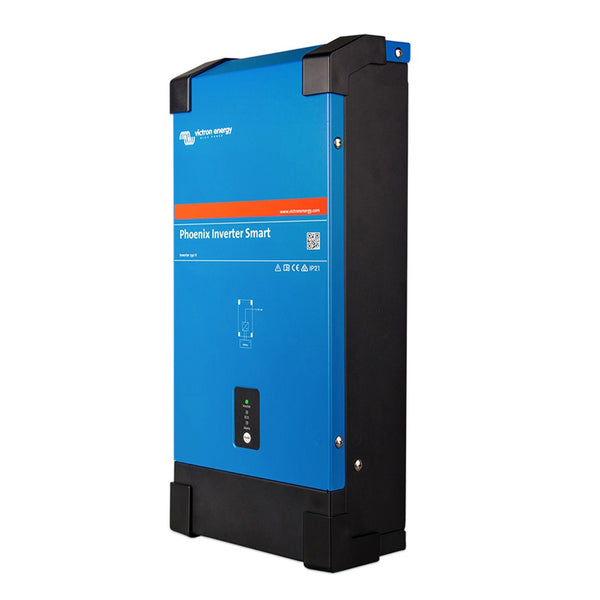

Victron 24V 2k5 Phoenix Smart Inverter 230V
Victron 24V 2k5 Phoenix Smart Inverter 230V
4000W Peak Surge Capacity with Built-in Bluetooth & 1.8W Eco-Mode

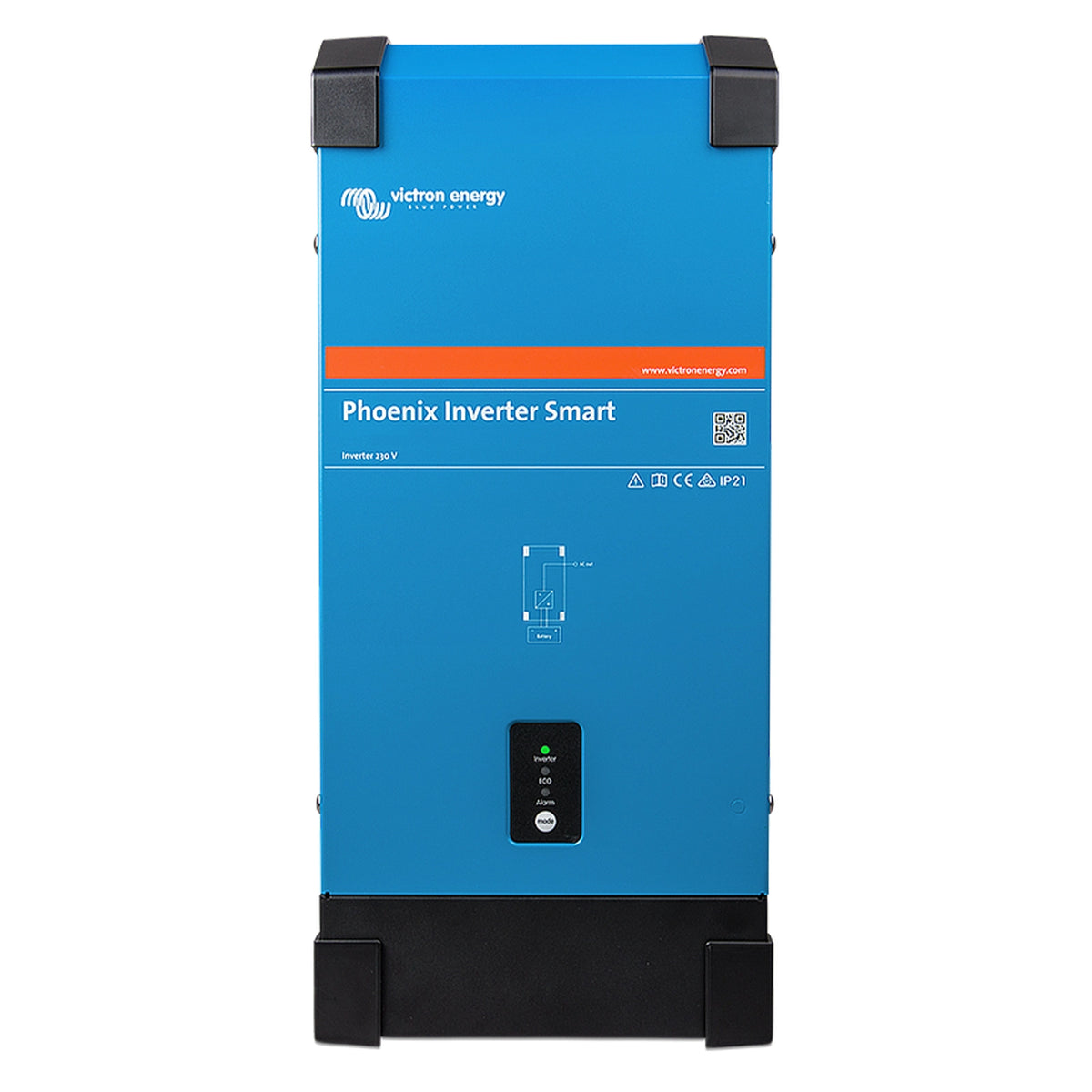

Highlights:Status Indicators: LED lights for Inverter, ECO mode and Alarm status monitoring,Mode Button: Push button to toggle between On, Off and ECO operation modes,IP21 Rating: Enclosure rated for protection against vertical water drops,Bluetooth QR Link: Direct link to VictronConnect app for wireless configuration,Cooling Vents: Internal fan-assisted cooling for operation in high temperatures.
Key features: Integrated Bluetooth for wireless configuration and monitoring, Slimline 150mm deep design for compact wall-mount installations, Pure sine wave output for powering sensitive electronics, High 4000W peak power capacity to start heavy loads, ECO mode reduces zero-load power consumption to 1.8W.
DESCRIPTION
Victron 24V 2k5 Phoenix Smart Inverter 230V
The Victron 24V 2k5 Phoenix Smart Inverter 230V is engineered to deliver highly efficient and stable AC power for 24V off-grid systems, marine vessels, and touring caravans. Built on a field-tested platform, this inverter provides a continuous 1600W output at 25°C, ensuring your essential 230V appliances run smoothly without interruption. Encased in a robust full-metal chassis, it offers a slim profile that is well suited to modern installations where space is at a premium.
High Peak Power and Pure Sine Wave Output
At the core of this unit is a proven toroidal transformer topology that produces a clean, pure sine wave output. This high-quality power is critical for operating sensitive electronics, preventing the interference and damage often caused by modified sine wave alternatives. Additionally, the toroidal design provides exceptional peak power surge capacity. With a peak output of up to 4000W, this inverter easily handles the high initial startup currents required by demanding loads such as refrigeration compressors, power tools, and electric motors.
Seamless Configuration with Built-in Bluetooth
System setup and monitoring are streamlined through integrated Bluetooth functionality. By connecting to the free VictronConnect app on a smartphone or tablet, users and installers gain comprehensive access to the inverter's settings. This wireless interface allows for precise configuration of crucial parameters, including low-voltage alarms, battery cut-off levels, output voltage, and frequency, eliminating the need for complex wired interfaces or additional dongles.
Energy Efficient Eco-Mode
To maximise battery life during periods of low demand, the inverter features an adjustable Eco-Mode. When activated, the unit automatically switches to standby if the connected load drops below a preset threshold, reducing idle power consumption to an ultra-low 1.8W. While in standby, the inverter briefly powers on every few seconds to detect load increases. If demand exceeds the threshold, it instantly resumes full operation, ensuring power is available exactly when needed.
Key Features
- Pure Sine Wave Output: Delivers clean 230V AC power for sensitive electronics and household appliances.
- High Surge Capacity: 4000W peak power easily manages the startup currents of compressors and motors.
- Integrated Bluetooth: Enables wireless configuration and real-time monitoring via the VictronConnect app.
- Ultra-Low Idle Draw: Eco-Mode reduces standby power consumption to just 1.8W.
- Robust Construction: Durable full-metal casing protects internal components in harsh environments.
- Comprehensive Protection: Safeguards against short circuits, overloads, high or low battery voltage, and excessive temperatures.
Professional Installation and Design
Designed with the installer in mind, the updated casing provides straightforward access to the M8 DC battery terminals and AC output connections, ensuring a secure and professional finish. Whether you are upgrading a marine electrical system, outfitting a 4WD canopy, or building a standalone off-grid power system, this unit delivers the performance required for continuous operation.
Upgrade your 24V electrical system with the Victron 24V 2000VA Phoenix Smart Inverter 230V and experience dependable, high-quality power for all your off-grid applications.
SKU: VIC-PIN242251000
Visit Victron's Official Victron 24V 2k5 Phoenix Smart Inverter 230V Webpage Here
SPECIFICATIONS
Specifications
| Model | Phoenix Inverter Smart 24/2000 |
| Continuous AC Power at 25°C | 2000VA / 1600W |
| Continuous AC Power at 40°C | 1450W |
| Continuous AC Power at 65°C | 1000W |
| Peak Power | 4000W |
| Output AC Voltage / Frequency | 230VAC ± 2% / 50Hz ± 0.1% |
| Input Voltage Range | 18.6 - 34.0V |
| DC Low Shut Down (Adjustable) | 18.6V |
| DC Low Restart and Alarm (Adjustable) | 21.8V |
| Maximum Efficiency | 94% |
| Zero Load Power | 11W |
| Zero Load Power in ECO Mode | 1.8W |
| Operating Temperature Range | -40 to +65°C (fan assisted cooling) |
| Humidity (Non-Condensing) | Max 95% |
| Battery Connection | M8 bolts |
| Weight | 13.0 kg |
| Dimensions (H x W x D) | 485 x 285 x 150 mm |
| SKU: | VIC-PIN242251000 |
| Barcode: | 8719076071419 |
| Model #: | PIN242251000 |
| MPN: | PIN242251000 |
| Country of origin: | CN |
| Package weight: | 14.6 kg |
| Package length: | 0.56 m |
| Package width: | 0.24 m |
| Package height: | 0.3 m |
