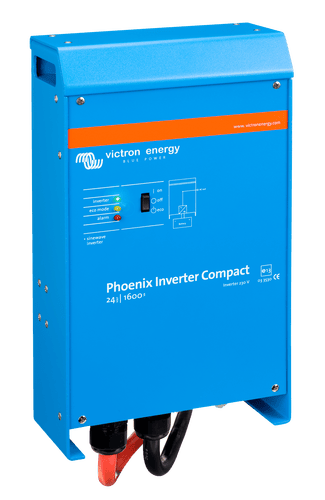

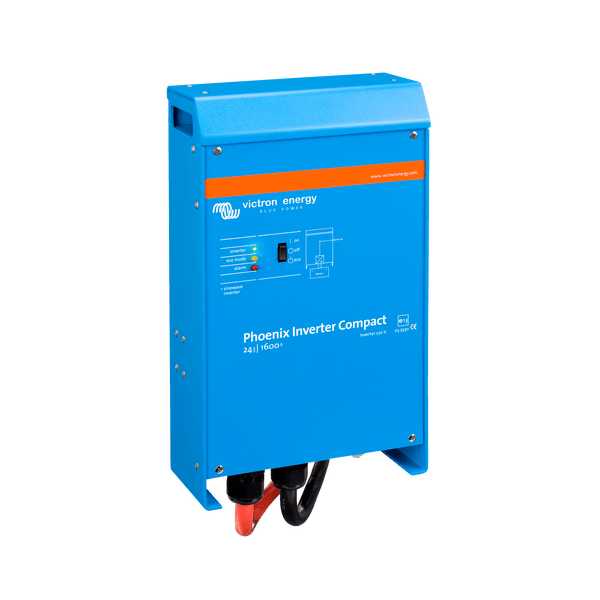

Victron 24V 1600VA Phoenix Inverter 24/1600 VE.Bus Compact
Victron 24V 1600VA Phoenix Inverter 24/1600 VE.Bus Compact
Experience reliable off-grid power with a pure sine wave output and 3000W peak capacity to easily start heavy appliances and industrial tools.
Highlights:LED Indicators: Status LEDs for inverter operation, eco mode, and alarm warnings,Power Switch: Three-way toggle switch for On, Off, and Eco mode selection,DC Cable Entry: Heavy duty entry points for secure battery cable connections,Aluminium Enclosure: Durable powder-coated aluminium chassis with IP21 protection,Ventilation Slips: Side ventilation for fan-assisted cooling during high load operation.
Schematic representation of an off-grid electrical system integrating a Phoenix inverter with battery, solar, and alternator charging sources to power multiple AC loads through a pure sine wave output.
Key features: Pure sine wave output for sensitive electronics, Parallel and 3-phase operation capability via VE.Bus, High peak power capacity for high start-up loads, Search mode and AES mode to reduce zero-load power consumption, Fully programmable relay and remote on-off control.
DESCRIPTION
Reliable Pure Sine Wave Power for Off-Grid Applications
Developed for demanding professional and recreational use, this pure sine wave inverter delivers highly efficient and stable AC power for off-grid homes, marine vessels, and mobile energy setups. Utilizing advanced hybrid high-frequency technology, it ensures premium performance and clean energy delivery. Unlike generic modified sine wave inverters that can cause a noticeable hum or permanent damage to appliances, this unit provides grid-quality power. This eliminates the risk of interference with sensitive electronics such as computers, televisions, and medical equipment, ensuring your devices operate smoothly and safely.
SinusMax Technology and Superior Peak Power
A critical advantage of this system is its robust 3000W peak capacity, driven by Victron Energy's unique SinusMax technology. Conventional high-frequency inverters often struggle with sudden, extreme power surges, but this architecture is specifically engineered to handle them. This impressive peak power capability is incredibly helpful for starting difficult, high-inrush loads such as electric motors, refrigeration compressors, air conditioners, and industrial power tools. By providing the necessary surge current instantly, the inverter prevents system overloads and frustrating power shutdowns during essential tasks.
Advanced Scalability with VE.Bus Integration
Equipped with a sophisticated VE.Bus communication port, this inverter offers extensive configuration and monitoring capabilities. When connected to a GX monitoring device, such as the Victron Cerbo GX, users can observe system performance in real-time, either locally or remotely via the VRM portal. This level of insight allows for precise power management and fault detection. Furthermore, for installations where energy demands grow over time, the VE.Bus platform provides virtually unlimited scalability. Up to six units can be wired in parallel to drastically multiply the total output, or they can be configured to provide a complete 3-phase power supply for heavy commercial or industrial applications.
Optimised Efficiency and Thermal Management
Energy conservation is vital in battery-based systems. This inverter features a dedicated ECO mode that significantly reduces zero-load power consumption. When activated, the unit drops into a low-power standby state, waking up frequently to check if a load has been applied. This dramatically extends battery runtime when appliances are turned off. Additionally, the internal components are housed within a rugged, powder-coated aluminium enclosure designed for optimal thermal management. Side ventilation and active cooling ensure the inverter maintains consistent output even in warm Australian climates, reducing the risk of thermal derating.
Built with a highly compact chassis, this model is specifically designed for installations where mounting space is heavily restricted, allowing for a neat and highly efficient setup in tight compartments.
Key Features
- Pure sine wave AC output delivers grid-quality power for sensitive electronics
- 3000W peak capacity effortlessly handles high-inrush inductive loads
- Advanced VE.Bus connectivity allows for parallel operation and 3-phase configurations
- ECO mode minimises battery drain during zero-load conditions
- Fully programmable relay can be customised for alarm signals or automatic generator starting
- Durable aluminium enclosure with intelligent fan-assisted cooling protects against harsh environmental conditions
- Heavy-duty bottom-entry cable glands provide secure and protected wiring connections
Versatile Energy Applications
Whether you are outfitting a remote cabin, upgrading an industrial work vehicle, or powering a specialised marine vessel, this inverter acts as the reliable heart of your AC power system. By effectively converting stored DC battery energy into dependable 230V AC power, it bridges the gap between your battery bank and your daily electrical needs. It is fully compatible with advanced lithium systems and traditional lead-acid banks alike.
Build a resilient, high-performance energy system today and power your heavy-duty appliances with complete confidence using this premium pure sine wave inverter.
SPECIFICATIONS
Specifications
| Model | C24/1600 |
|---|---|
| Parallel And 3-Phase Operation | Yes |
| Input Voltage Range (VDC) | 19 - 33 V |
| Output Voltage | 230 VAC ± 2 % |
| Frequency | 50 Hz ± 0.1 % |
| Cont. Output Power At 25 °C (VA) | 1600 |
| Cont. Output Power At 25 °C (W) | 1300 |
| Cont. Output Power At 40 °C (W) | 1200 |
| Cont. Output Power At 65 °C (W) | 800 |
| Peak Power (W) | 3000 |
| Max. Efficiency | 94 % |
| Zero Load Power | 10 W |
| Zero Load Power In AES Mode | 8 W |
| Zero Load Power In Search Mode | 3 W |
| Programmable Relay | Yes |
| VE.Bus Communication Port | For parallel and three phase operation, remote monitoring and system integration |
| Remote On-Off | Yes |
| Protection | Output short circuit; overload; battery voltage too high; battery voltage too low; temperature too high; 230 VAC on inverter output; input voltage ripple too high |
| Operating Temperature Range | -40 to +65 °C (fan assisted cooling) |
| Humidity (Non-Condensing) | Max 95 % |
| Material & Colour | Aluminium (Blue RAL 5012) |
| Protection Category | IP21 |
| Weight | 10 kg |
| Dimensions (HxWxD) | 375 x 214 x 110 mm |
| Safety | EN 60335-1 |
| Emission Immunity | EN 55014-1 / EN 55014-2 |
| SKU: | VIC-CIN242160000 |
| Barcode: | 8719076065050 |
| Model #: | CIN242160000 |
| MPN: | CIN242160000 |
WARRANTY
Victron Energy Limited Warranty Policy
Direct Customers
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
End-Users
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Warranty
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
- Reversed battery polarity.
- Inadequate connection.
- Mechanical shock or deformation.
- Contact with liquid or oxidation by condensation.
- Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
- Breakage or damage due to lightning.
- Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
- For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
Life Support Policy
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
Warranty on repairs for products outside their warranty period
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
Applicable law
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
Contact details
Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
