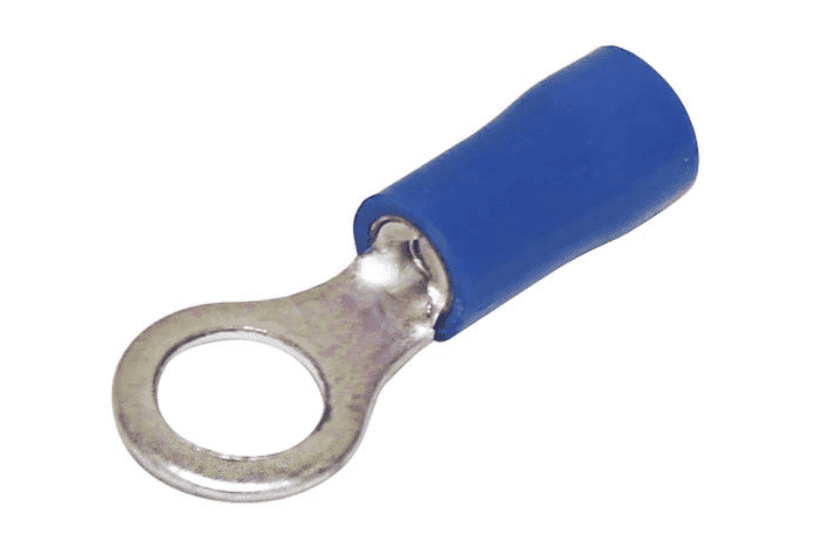

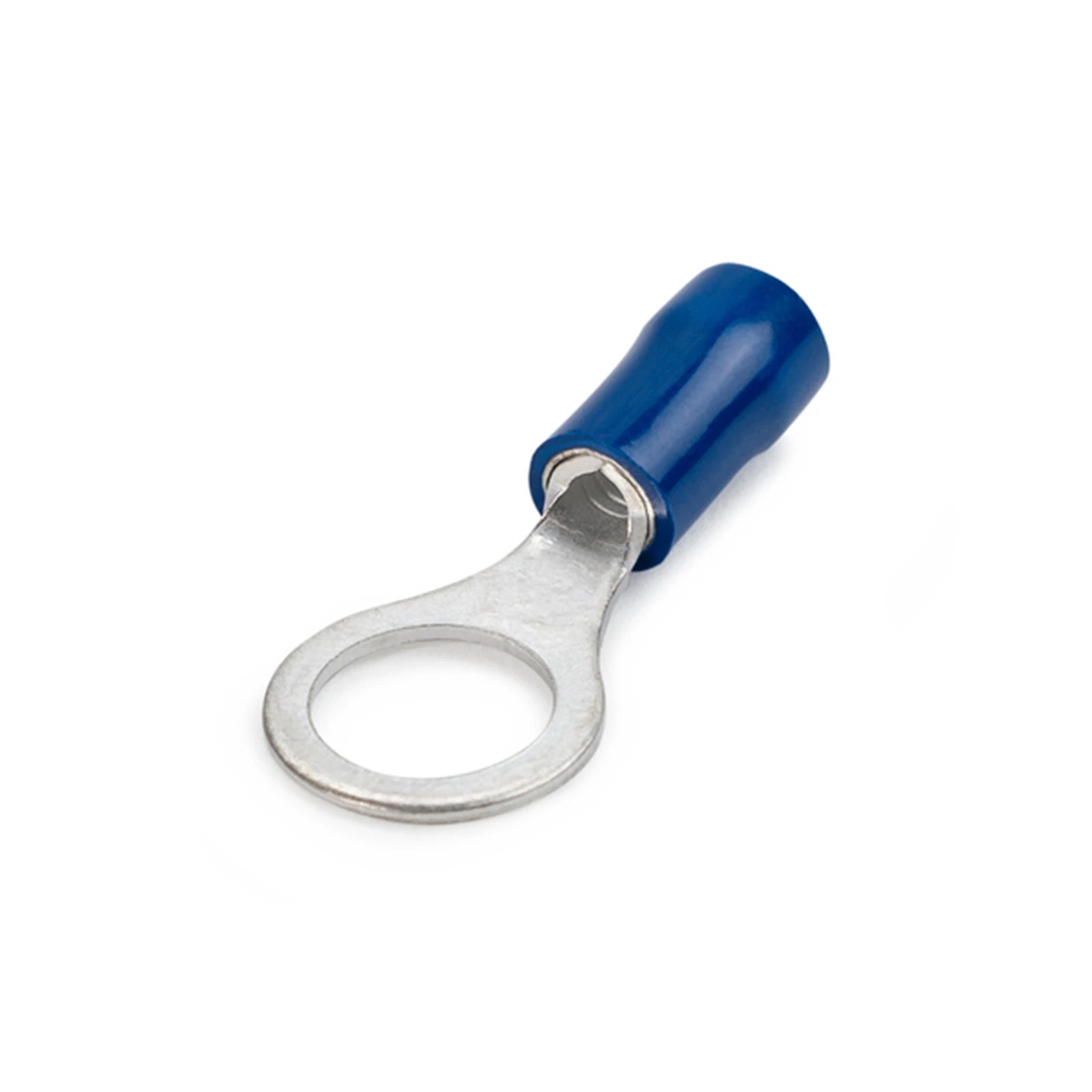

Hellermann Tyton Pre-Insulated Terminal Blue Ring Lug M5 Hole
Hellermann Tyton Pre-Insulated Terminal Blue Ring Lug M5 Hole
Double-Grip Crimp for 1.5-2.5mm² Cable - 27A 600V - M5 Stud (5.3mm Hole)
Regular price
$0.65
Availability:
In Stock
View all products from Hellermann Tyton
Guaranteed Safe and Secure Checkout
82
DESCRIPTION
Hellermann Tyton Blue M5 Ring Terminal: Precision-Engineered Double Grip Connection for Demanding Electrical Systems
Secure, Vibration-Resistant Termination for 1.5–2.5 mm² Conductors
The Hellermann Tyton Pre-Insulated Blue Ring Lug M5 Hole delivers a robust, maintenance-free electrical connection in environments where vibration and mechanical stress are constant challenges. Designed for 1.5–2.5 mm² copper conductors, this terminal combines a double-grip crimp profile with a colour-coded PVC insulation sleeve, ensuring both mechanical strength and straightforward identification during installation and inspection.
Unlike generic single-crimp terminals, the double-grip design secures both the conductor strands and the cable insulation in a single operation. This dual clamping action significantly reduces the risk of wire pull-out and fatigue failure, making it a preferred choice for automotive, marine, control panel, and industrial equipment applications where reliability is non-negotiable.
Three-Piece Construction for Consistent Performance
Each terminal is manufactured using a three-piece process: a high-conductivity copper barrel for low-resistance current transfer, a vinyl insulation sleeve for electrical isolation and mechanical protection, and a tin-plated ring tongue with a 5.3 mm stud hole. This layered construction ensures dimensional accuracy and repeatable crimp quality across high-volume production runs.
The copper barrel is annealed to optimise ductility, allowing it to conform tightly around individual conductor strands during crimping. This maximises contact area and minimises voltage drop, even under sustained load. The tin plating provides corrosion resistance, extending service life in humid or mildly corrosive atmospheres.
Colour-Coded Insulation for Fast, Error-Free Assembly
The blue PVC insulation conforms to international colour standards for 1.5–2.5 mm² conductors, enabling technicians to quickly select the correct terminal size without referencing charts. This reduces assembly time and the likelihood of mismatched crimps that can lead to overheating or intermittent connections.
The vinyl material is rated for continuous operation at +75 °C, making it suitable for engine compartments, machinery enclosures, and other elevated-temperature locations. The insulation also provides a degree of strain relief at the cable entry point, further enhancing vibration resistance.
Key Features
- Double-grip crimp profile secures conductor and insulation for superior vibration resistance
- Three-piece copper/PVC construction ensures consistent electrical and mechanical performance
- Blue colour coding for 1.5–2.5 mm² conductors simplifies selection and inspection
- 5.3 mm ring hole fits M5 studs (Approx. #10) for common terminal block and busbar connections
- 27 A maximum current rating and 600 V maximum voltage for low-voltage power and signal circuits
- Supplied in resealable bags to protect unused terminals from contamination and loss
Applications Where Reliability Matters
This M5 ring terminal is engineered for low-voltage DC and AC circuits up to 600 V, making it ideal for:
- Automotive wiring — fuse boxes, relays, earth points, and accessory circuits
- Marine electrical systems — navigation lights, bilge pumps, and switch panels
- Control panels and industrial machinery — sensor connections, solenoid valves, and terminal blocks
- Solar and battery installations — charge controllers, battery monitors, and small inverters
- DIY and prototyping — reliable connections for hobbyist projects and test setups
The double-grip feature is particularly valuable in mobile and high-vibration installations, where standard terminals may loosen over time. By crimping onto both the conductor and the insulation, this terminal maintains a gas-tight connection that resists fretting corrosion and thermal cycling effects.
*Note typical de-rating factors apply for continuous current near the 27 A maximum; ensure conductor size and ambient temperature are within design limits.
Built to Hellermann Tyton Quality Standards
Hellermann Tyton is a globally recognised manufacturer of cable management and connection products, with a reputation for precision and durability. This ring terminal is ROHS compliant and manufactured under strict quality controls, ensuring batch-to-batch consistency for professional installers and OEMs.
The resealable packaging keeps terminals organised and protected from moisture and dirt, a practical detail that workshop and field technicians appreciate.
Upgrade Your Electrical Connections Today
Choose the Hellermann Tyton Blue M5 Ring Terminal for your next wiring project and experience the difference that a properly engineered double-grip terminal makes. Whether you're rewiring a classic vehicle, building a custom control panel, or maintaining critical marine electronics, this terminal delivers the secure, long-lasting connection your system demands.
SPECIFICATIONS
Specifications
| Art.-No. | 924-00376 |
|---|---|
| PART DESCRIPTION | RD2-5-CU/PVC-BU |
| Type | RD2-5 |
| Product Family | Double Grip Pre-Insulated |
| Colour | Blue (BU) |
| Material | Copper (CU), Polyvinylchloride (PVC) |
| Conductor Size Range mm² | 1.5-2.5 mm² |

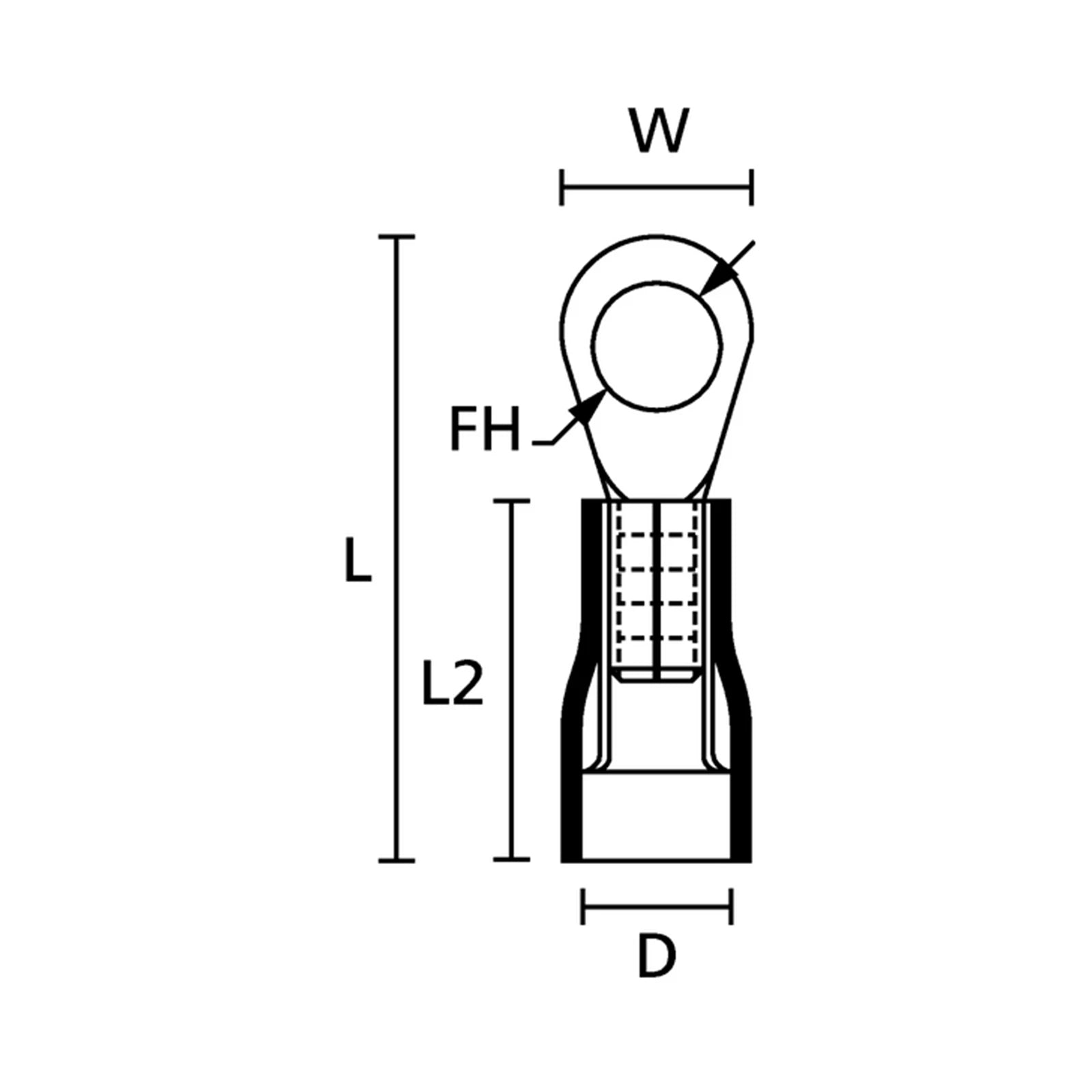

| for Hole ⌀ (FH) | 5.3 mm |
| Diameter (D) | 5.3 mm |
| Width (W) | 9.5 mm |
| Length (L) | 22.5 mm |
| Length (L2) | 10.7 mm |

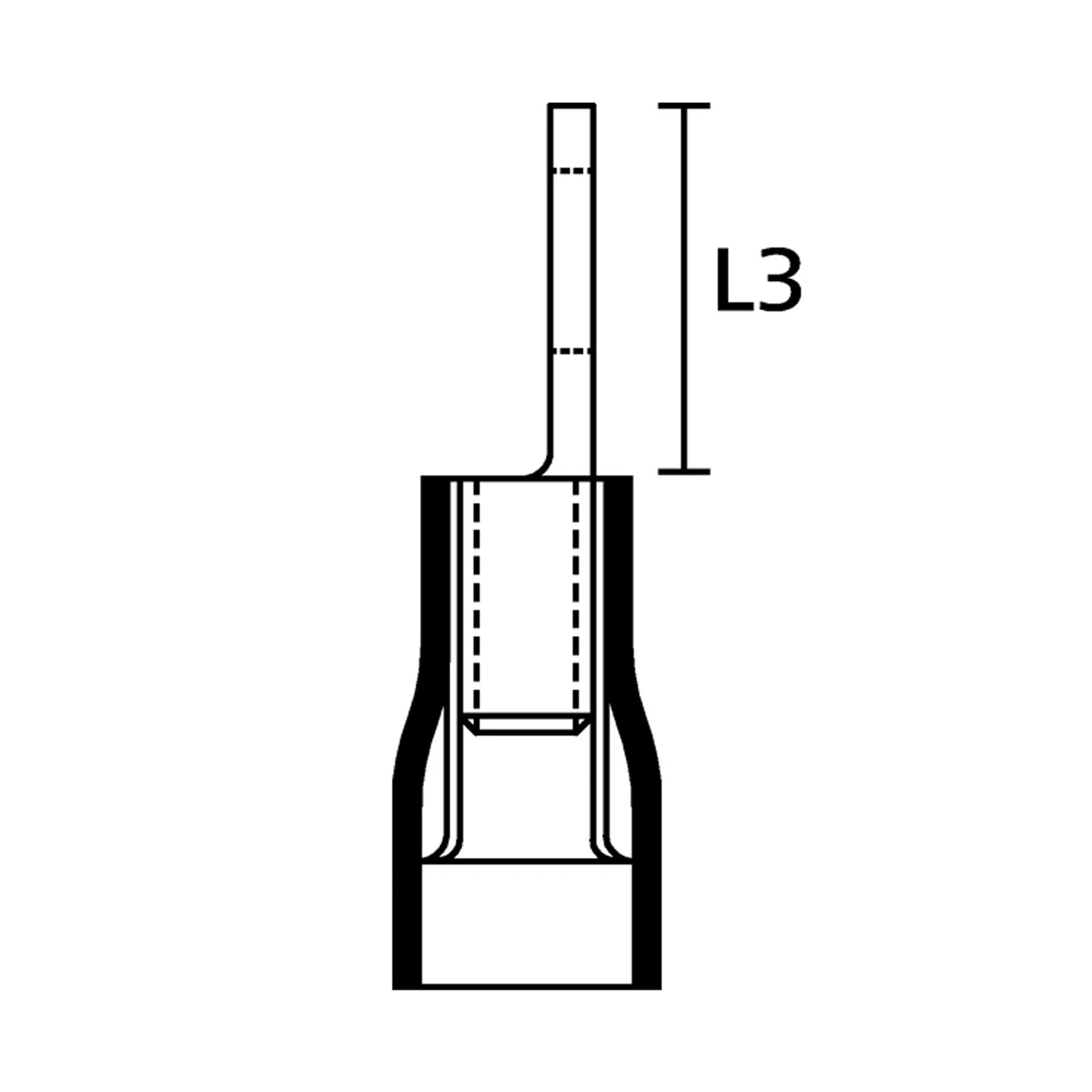

| Length (L3) | 11.8 mm |
| Max Current | 27 A |
| Max Voltage | 600 V |
| Operating Temperature | +75 °C |
| ROHS compliant | Yes |
| GTIN-13 / EAN | 9349519000073 |
| SKU: | BLU-INS-RING-M5 |
| Model #: | BLU-INS-RING-M5x1 |
| MPN: | BLU-INS-RING-M5x1 |
