CZone SCI Cable for SCI Push Buttons

Dedicated Switch Control Interface Connectivity for Digital Switching

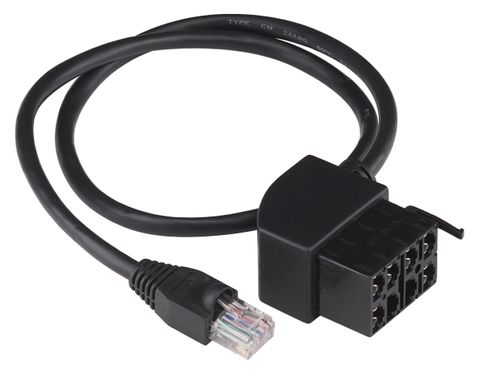

The CZone SCI Cable (Part Number: 80-911-0021-00) is a purpose-built interface harness designed to seamlessly integrate mechanical and Momentary Switch Control Interface (SCI) push buttons into your CZone digital switching network. Engineered specifically for demanding marine, RV, and off-grid electrical installations, this dedicated data assembly simplifies behind-the-dash wiring while maintaining exceptional signal integrity across your system.

In modern digital switching environments, reliable communication between tactile helm or cabin switches and the main control network is critical. Rather than relying on complex, hand-crimped point-to-point looms that increase installation time and the risk of connection failure, this pre-terminated harness provides a clean, plug-and-play connection directly from your CZone SCI module to compatible push-button switch arrays.

Key Features & Technical Benefits

• Purpose-Built Compatibility: Specifically engineered to suit CZone SCI Push Buttons, ensuring accurate pinout alignment and secure physical retention.
• Standardised Network Interface: Features a precision-moulded RJ45 connector on the module end for rapid, tool-free connection to CZone Switch Control Interface components.
• Multi-Pin Switch Block: Terminates in a specialised multi-pin interface block designed to simplify the connection of multiple push-button inputs without cluttering the dash cavity.
• High Signal Integrity: Constructed from flexible 24 AWG (approx. 0.2mm²) data cable to ensure dependable low-voltage signal transmission and minimal electrical interference.
• Streamlined Installation: Reduces behind-panel wiring complexity, cutting down on custom termination labour and simplifying future system diagnostics or maintenance.

Reducing Installation Risk in Mobile Environments

Marine vessels, caravans, and specialized commercial vehicles subject electrical systems to constant vibration, thermal cycling, and moisture. Field-terminated data cables and unverified third-party harnesses often suffer from loose pins, intermittent signal drop-outs, or premature corrosion. By utilising genuine CZone factory-terminated cabling, installers eliminate the guesswork of custom pinouts and greatly reduce the risk of faulty switch triggers or network communication errors.

The flexible 24 AWG (approx. 0.2mm²) conductor construction allows for easy routing through tight helm consoles, bulkheads, and cabinetry without placing undue mechanical strain on the switch terminals or the SCI module ports. Please note that specific overall cable length details are not stated in the standard product documentation, so ensure your SCI module is mounted in close proximity to your switch panel layout.

Ideal Applications

• Marine Helm Stations: Connecting stainless steel or backlit push buttons on boat dashes to the vessel's CZone digital switching backbone.
• Caravan & Motorhome Control Panels: Integrating tactile wall switches for lighting, water pumps, and awning controls into a central RV management system.
• Specialist & Emergency Vehicles: Providing reliable, low-profile switch interfacing for auxiliary lighting and equipment control in utility and service builds.

Complete Your CZone Digital Switching System

Ensure clean, professional, and dependable switch integration on your next marine or recreational vehicle electrical build. Add the genuine CZone SCI Cable to your project order today for seamless push-button connectivity.
