CZone RV1 NMEA 2000 Network Connection Kit

Seamless Digital Switching and Integration for CZone RV1 Modules

Establishing a dependable digital switching and power management system in a recreational vehicle or specialised automotive build requires precision-engineered components. This connection kit is purpose-built to interface with the CZone RV1 Module, providing the exact automotive-grade plugs and terminals needed to establish a secure NMEA 2000 network connection alongside critical power and signal circuits.

Unlike standard marine NMEA 2000 setups that rely solely on screw-type Micro-C connectors, the CZone RV1 system utilises specialised automotive network connectors to maximise space efficiency and vibration resistance. Attempting to source these individual multi-pin housings and crimp contacts separately can lead to compatibility issues, incorrect pin tension, and frustrating installation delays. This comprehensive kit eliminates the guesswork by supplying the genuine TE Connectivity components specified by CZone for a professional, factory-standard wiring harness.

Engineered for Vibration Resistance and Electrical Integrity

Mobile environments subject electrical systems to constant vibration, thermal cycling, and mechanical stress. Using unverified or mismatched terminals increases the risk of voltage drop, intermittent CAN bus communication faults, and high-resistance hot spots. By utilising genuine VAL-U-LOK and MATE-N-LOK contact terminals paired with positive-latching TE plugs, this kit ensures high mechanical retention and optimal electrical conductivity across every circuit on your RV1 module.

Key Features and Kit Capabilities

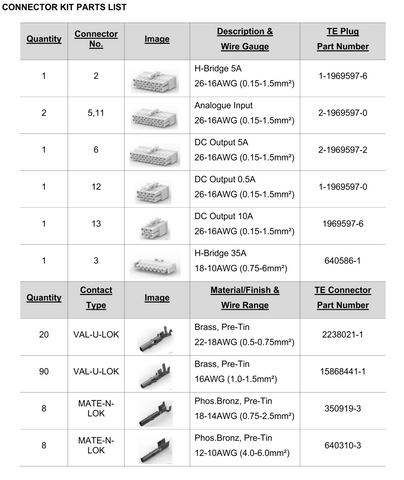

• Direct RV1 Compatibility: Specifically curated to populate the NMEA 2000, signal, and load interfaces on the CZone RV1 digital switching module.
• Complete Plug Assortment: Includes dedicated TE Connectivity housings for H-Bridge, Analogue Input, and DC Output channels.
• Industry-Standard Terminals: Supplied with genuine VAL-U-LOK and MATE-N-LOK crimp contacts for reliable, low-resistance terminations.
• Broad Wire Gauge Support: Accommodates a wide range of cable sizes from 26 AWG to 10 AWG (approx. 0.15mm² to 6.0mm²) to suit both delicate sensor wires and heavy DC loads.
• Versatile Current Handling: Terminations are rated to support diverse circuit demands ranging from 0.5A signal lines up to 35A high-output DC channels.
• Secure Automotive Connectors: Positive-locking housings prevent accidental disconnection in high-vibration caravan, motorhome, and 4WD applications.

Applications and Installation

This termination kit is essential for auto electricians, RV manufacturers, and experienced DIY installers fitting a new CZone RV1 system, building a custom wiring loom from scratch, or repairing damaged factory harnesses. Having the correct pin outs for your analogue inputs, H-Bridge reversing polarity circuits (such as awnings or slide-outs), and standard DC outputs ensures your NMEA 2000 network communicates flawlessly with displays, tank senders, and battery monitors.

Complete Your CZone RV1 Installation

Ensure your digital switching network operates with maximum reliability and safety. Add the CZone RV1 NMEA 2000 Network Connection Kit to your cart today to streamline your custom wiring harness build.
