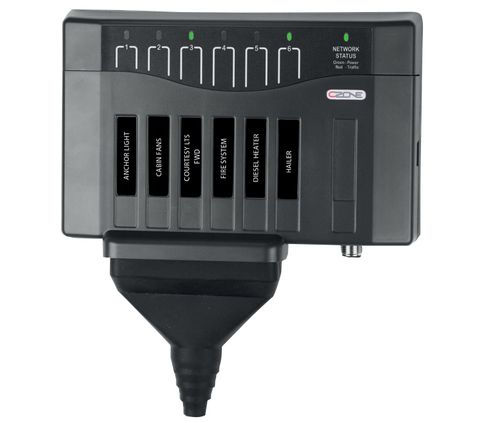

CZone Output Interface with 6 Output Channels, 6-Way Plug and Protective Boot

Advanced Digital Switching: Intelligent 6-Channel Power Distribution

Upgrade your electrical architecture with the CZone Output Interface (OI), an intelligent, solid-state alternative to traditional DC circuit breaker and fuse panels. Engineered specifically for demanding marine, RV, and off-grid vehicle applications, this module consolidates power supply, digital circuit control, and electronic fusing into a single, compact unit. By decentralising your power distribution, you can mount the interface closer to your electrical loads, significantly reducing heavy cable runs, minimising voltage drop, and simplifying the overall wiring harness.

Integrated Control and Electronic Fusing

Unlike standard mechanical switches and thermal breakers that require manual intervention and separate control relays, the CZone Output Interface offers programmable electronic fusing across six high-power output channels. It also features built-in timers and dimmers, allowing you to customise lighting levels, automate pump cycles, and manage onboard loads directly through your CZone network without adding extra standalone modules.

• Six High-Power Channels: Provides reliable power supply, automated control, and resettable electronic fusing for critical onboard circuits.
• Built-In Dimming and Timers: Eliminates the need for separate dimmer modules or timer relays, streamlining cabin lighting and pump management.
• Tool-Free Crimp Termination: Terminations are secured using a standard blade screwdriver, removing the reliance on specialised crimp terminals or expensive hydraulic crimping tools.
• Heavy-Duty Cable Capacity: The large 6-way plug easily accepts conductor sizes up to 16mm² (6 AWG) or multiple smaller wires for flexible load grouping.
• Visual System Diagnostics: Equipped with individual green circuit status LEDs and a bicolour network status LED for immediate visual confirmation of active circuits, power presence, and network communication.
• Environmental Protection: Includes a heavy-duty, flexible protective boot to shield electrical terminations from moisture, salt spray, and vibration in harsh marine and off-road environments.

Streamlined Installation and Field Serviceability

Designed with both professional marine electricians and system integrators in mind, this CZone module drastically reduces installation time. The robust 6-way plug allows you to run substantial 16mm² (6 AWG) cabling directly to the interface, catering to high-draw appliances with ease. Because wires secure directly via screw terminals using a standard blade screwdriver, making field repairs or modifying circuit layouts is straightforward and does not require carrying proprietary crimping gear onboard.

Built for Harsh Marine and Off-Grid Conditions

Electrical connections in boats, caravans, and 4x4 canopies are constantly exposed to vibration, humidity, and temperature fluctuations. The supplied flexible protective boot fits snugly over the 6-way plug, providing a vital barrier against harsh environmental ingress. Furthermore, if a fault occurs, the unit's onboard status indicators allow you to instantly identify which specific channel is active or experiencing a communication issue, reducing troubleshooting downtime when you are miles from shore or off the beaten track.

Upgrade Your Onboard Power Management

Integrate the CZone 6-Channel Output Interface into your digital switching network today for a cleaner, smarter, and more resilient electrical installation.
