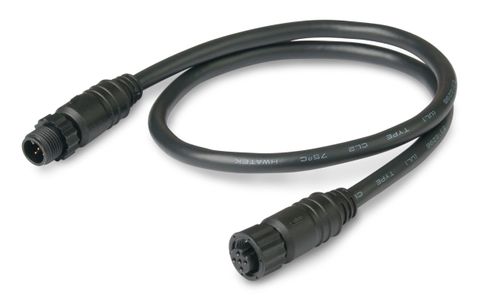

CZone NMEA 2000 4m Drop Cable

Reliable Device Integration for Marine NMEA 2000 Networks

Establishing a dependable marine electronics network requires precision-engineered interconnects that can withstand harsh onboard conditions. This 4-metre drop cable is designed to link individual NMEA 2000 devices directly to your main network backbone. Carrying both data and network power simultaneously, it facilitates seamless communication between digital switching modules, multifunction displays, sensors, and power management equipment across your vessel or off-grid vehicle.

Engineered with Standard 5-Pin Micro-C Connectors

Equipped with industry-standard 5-pin male and female Micro-C connectors, this cable integrates effortlessly into existing CZone digital control systems and third-party NMEA 2000 networks. Each connector features a threaded locking collar that secures the interface against continuous vessel vibration, hull shock, and accidental disconnection. This mechanical stability reduces the risk of intermittent data dropouts and communication faults that can affect inferior cabling solutions in dynamic marine and mobile environments.

• Dual-Function Transmission: Carries both CAN bus data and low-voltage network power along a single pathway to simplify wiring runs.
• 5-Pin Micro-C Interface: Standardised male and female sockets ensure plug-and-play compatibility with NMEA 2000 T-connectors and onboard instrumentation.
• Threaded Locking Collars: Provides a secure, vibration-resistant mechanical connection suited for rough water and corrugated off-road tracks.
• UL CL2 Rated Cable Jacket: Flexible, high-durability outer sheathing resists abrasion, moisture, and routing stress through tight bulkheads and conduits.
• Optimal 4-Metre Length: Offers extended reach from the main backbone to helm displays, tank senders, or CZone interface modules without exceeding standard NMEA 2000 drop length limits.

Built for Demanding Marine and Mobile Installations

Routing network cables through tight bilges, behind dashboards, and along cable trays requires a jacket that balances flexibility with structural protection. The UL CL2 rated outer sheathing protects the internal conductors from physical wear and environmental degradation while remaining pliable enough for clean, low-profile installations. By maintaining strict impedance and shielding standards, the cable minimises electromagnetic interference (EMI) from adjacent heavy-duty power cables, inverters, and pumps, preserving signal integrity across your entire system.

Ideal Applications for 4m Drop Connections

In an NMEA 2000 architecture, drop cables branch off from backbone T-connectors to terminate at specific end devices. A 4-metre length is particularly effective for bridging the distance between a central backbone run and outlying equipment, such as:

• Connecting helm-mounted chartplotters, instrument displays, and CZone touchscreens
• Linking remote fluid level sensors, battery monitors, and smart chargers
• Integrating CZone Output Interfaces (OI), Switch Control Interfaces (SCI), and Contact 6 modules
• Expanding digital switching networks in commercial vessels, cruising yachts, and custom RVs

Upgrade Your Onboard Network Architecture

Ensure uninterrupted data flow and dependable power delivery across your marine or mobile control system. Add this 4m Micro-C drop cable to your installation kit today to build a resilient, standards-compliant NMEA 2000 network.
