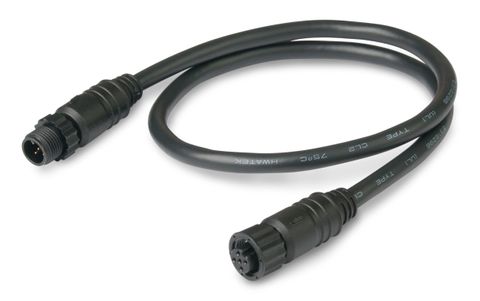

CZone NMEA 2000 3m Drop Cable

Reliable Power and Data Transmission for Marine and RV Networks

The CZone NMEA 2000 3m Drop Cable is engineered to establish a dependable communication link between your primary NMEA 2000 network backbone and individual peripheral devices. Whether you are outfitting a commercial marine vessel, a recreational boat, or a custom off-grid RV setup, this drop cable simultaneously delivers clean network power and critical digital data. The 3m length provides ample reach to route wiring neatly through bulkheads, behind helm stations, or under dashboards without placing excessive tension on the network T-pieces or device ports.

Engineered for Seamless System Integration

Building a digital switching or marine electronics network requires components that adhere strictly to industry protocols. Featuring standard 5-pin Micro-C male and female connectors, this cable integrates directly with CZone modules as well as compatible third-party NMEA 2000 sensors, multifunction displays (MFDs), and gauges. The female connector is equipped with a robust knurled locking nut, ensuring a positive mechanical lock that resists loosening in high-vibration environments such as engine bays, hull spaces, or corrugated off-road tracks.

• Dual Functionality: Transmits both 12V network power and high-speed CAN bus data through a single shielded cable assembly.
• Standardised Micro-C Connectors: Equipped with 5-pin male and female Micro-C terminations for plug-and-play compatibility across the NMEA 2000 ecosystem.
• Flexible Routing: Constructed with a pliable outer jacket that simplifies pulling through tight conduits, rigging tubes, and cabinetry compared to stiffer backbone cables.
• Vibration-Resistant Locking Collar: Knurled metal threading ensures a secure, water-resistant mating connection with network T-connectors and device interfaces.
• Optimised 3m Length: Offers practical installation flexibility while remaining well within the NMEA 2000 standard maximum drop length of 6m, preserving signal integrity.

Why Choose Purpose-Built NMEA 2000 Cabling?

In complex electrical systems, the reliability of your data is only as strong as the physical layer carrying it. Using sub-standard or unshielded wiring in a CAN bus network can introduce voltage drop, electromagnetic interference (EMI), and intermittent communication dropouts. This CZone drop cable is specifically shielded and twisted to protect sensitive data packets from electrical noise generated by alternators, inverters, and bilge pumps. By maintaining proper impedance and secure pin contact, it mitigates the risk of ghost faults and device disconnections when you are offshore or off-grid.

Typical Applications

This 3m drop lead is a fundamental building block for expanding or modifying your digital control and monitoring architecture. It is commonly utilised to connect an NMEA 2000 backbone to:

• CZone Output Interface (OI), Switch Control Interface (SCI), and Contact 6 modules
• Helm chartplotters, sonar units, and multifunction displays
• Digital tank level senders, battery monitors, and environmental sensors
• Marine audio head units, VHF radios, and autopilot controllers

Complete Your Network Installation

Ensure your marine or mobile electronics communicate without interruption. Add the CZone 3m Drop Cable to your system build today for a clean, compliant, and durable NMEA 2000 device connection.
