CZone AC Voltage Transducer for DIG and CZone MC12 with 3 Voltage Transformers

Reliable Multi-Source AC Voltage Monitoring for Marine and Mobile Power

The CZone AC-VSEN-4 AC Voltage Transducer is an essential component for expanding the AC monitoring capabilities of your digital switching network. Engineered specifically for seamless integration with CZone MC12 (Meter Interface) and DIG modules, this transducer enables accurate, real-time tracking of up to three separate AC power sources. Whether you are managing a complex marine electrical architecture or a high-capacity off-grid recreational vehicle, this unit provides the critical data needed to protect your onboard appliances and power distribution systems.

Why Integrate a Dedicated AC Voltage Transducer?

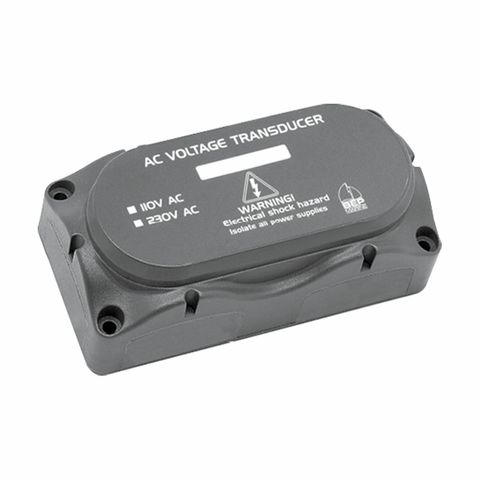

In advanced mobile and marine electrical setups, managing multiple AC inputs such as shore power, onboard generators, and inverter outputs requires precise telemetry. Attempting to monitor high-voltage AC lines without proper isolation introduces safety risks and potential signal interference. The CZone AC-VSEN-4 solves this by housing three dedicated voltage transformers within a single, protective grey plastic enclosure. These transformers safely step down high-voltage AC signals into isolated, low-voltage inputs that your CZone MC12 or DIG module can process and display across your NMEA 2000 network or multi-function displays.

By providing accurate visibility into your 110V or 230V AC systems, this transducer helps reduce the risk of equipment damage caused by voltage drops, brownouts, or unstable shore power connections. It eliminates the guesswork when switching between power sources, ensuring your air conditioning, battery chargers, and galley appliances receive stable voltage.

Key Features and System Benefits

• Multi-Input Capability: Houses three internal voltage transformers to simultaneously monitor up to three independent AC voltage inputs (e.g., Line 1, Line 2, or separate shore and generator feeds).
• Dual System Compatibility: Designed to operate reliably across both 110V and 230V AC electrical systems, making it suitable for Australian 230V standards as well as international marine vessels.
• Purpose-Built Integration: Engineered specifically for plug-and-play compatibility with CZone MC12 and DIG modules, ensuring accurate calibration and reliable data transmission.
• Compact, Durable Enclosure: Measuring a compact 69 x 140 x 50mm, the robust casing protects internal components from harsh marine and mobile environments while fitting easily into tight electrical cabinets.
• Secure Installation: Features integrated corner mounting points to ensure a vibration-resistant fitment on bulkheads or distribution panels.

Engineered for Demanding Environments

Unlike standard industrial sensors that may struggle in high-vibration or moisture-prone environments, CZone components are built to meet the rigorous demands of marine and automotive applications. The compact footprint allows system designers and marine electricians to maintain clean, organised wiring looms behind the dash or inside main AC distribution boards. By consolidating three transformers into one housing, installation time is reduced and cabinet space is maximised.

Applications

• Marine Vessels: Monitor shore power, onboard diesel generators, and inverter outputs directly from the helm.
• Off-Grid Caravans and Motorhomes: Keep track of mains hookups and high-output inverter systems to prevent overloading.
• Specialist Commercial Vehicles: Ensure stable AC power delivery for mobile workspaces, emergency service vehicles, and broadcast vans.

Upgrade Your AC Power Visibility

Equip your CZone digital switching system with accurate, multi-source AC telemetry. Add the CZone AC-VSEN-4 AC Voltage Transducer to your setup today to ensure safe, reliable power management across your vessel or vehicle.
