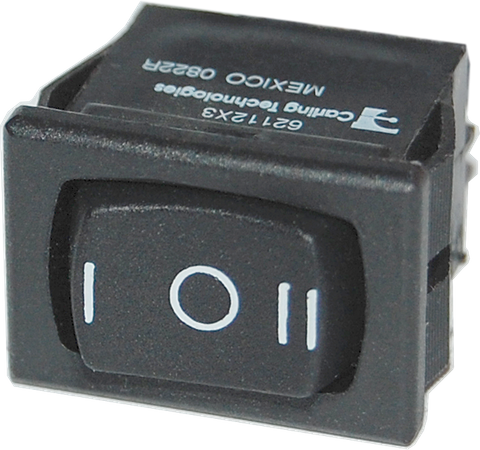

Blue Sea SPDT (On)-Off-(On) Rocker Switch for 360 Panels
Blue Sea SPDT (On)-Off-(On) Rocker Switch for 360 Panels
Momentary Dual-Throw Actuator with I-O-II Legend & Snap-In Mounting
Regular price
$9.27
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Momentary Dual-Circuit Control for Blue Sea Systems 360 Panel Modules
Managing complex electrical systems in marine, caravan, and off-grid applications requires reliable, intuitive hardware. This Blue Sea Systems rocker switch provides a dedicated Single Pole Double Throw (SPDT) switching mechanism with a momentary (On)-Off-(On) configuration. Engineered specifically for seamless integration into the modular Blue Sea 360 Panel System, it delivers precise circuit control while maintaining a clean, factory-grade aesthetic across your dashboard or control console.
In technical terms, the parenthetical (On) notation signifies a momentary action. The switch remains in the central 'Off' position at rest and only engages either of the two circuits while actively held down by the operator. Once released, the internal spring mechanism automatically returns the actuator to the centre-off position. This specific operational profile is critical for applications that require temporary activation or dual-direction control, reducing the risk of a circuit being accidentally left live and draining auxiliary battery banks.
Key Features and System Benefits
- Momentary (On)-Off-(On) Action: Spring-loaded return to the centre-off position prevents unintended continuous power draw and provides safe, temporary activation for two distinct circuits.
- 360 Panel System Integration: Purpose-built to snap directly into designated Blue Sea 360 Panel modules without requiring custom fabrication or adapters.
- High-Visibility Markings: Features a clear, durable I-O-II legend on the black rocker actuator for immediate visual confirmation of switch states in low-light environments.
- Rapid Snap-In Installation: Streamlines panel assembly, repairs, and custom system upgrades with secure mechanical retention.
Engineered for Harsh Marine and Mobile Environments
Selecting an inferior, non-standard switch for a specialized modular panel often leads to poor mechanical fitment, premature contact wear, and potential electrical faults. Because marine vessels and touring 4WDs are constantly subjected to vibration, moisture, and temperature fluctuations, every component in your power distribution setup must meet strict durability standards. Using genuine Blue Sea Systems components ensures uniform tactile feedback, consistent actuator alignment, and dependable electrical contact across your entire switchboard.
The clear I-O-II markings on the switch face allow operators to easily distinguish between circuit one, off, and circuit two. This is particularly advantageous when wiring dual-function accessories, checking voltage across two separate battery banks via a single gauge, or momentarily engaging relays and solenoids.
Compatible 360 Panel Modules
This SPDT momentary rocker switch is designed specifically to populate or replace switches within the following Blue Sea 360 Panel modules:
- Gauge Modules: Ideal for momentarily toggling a single display gauge between two separate senders or battery banks to monitor system vitals without constant power draw.
- DC Push Button + Switch Modules: Expands the versatility of your DC control panels with momentary two-way switching.
- DC Battery Management Modules: Provides reliable manual override or momentary control for remote battery switches and dual-sensing circuits.
Upgrade Your 360 Panel Configuration
Whether you are designing a custom marine switchboard from scratch, expanding an existing off-grid caravan electrical canopy, or replacing a worn actuator, choosing the correct switch configuration is vital for system safety. Add this genuine Blue Sea SPDT momentary rocker switch to your build today to ensure seamless compatibility and precise circuit management across your 360 Panel setup.
SKU: BS-7484B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Rocker switch |
| Switch configuration | SPDT (On)-Off-(On) |
| Compatible range | 360 panels |
| Compatible modules | Gauge; DC Push Button + Switch; DC Battery Management |
| SKU: | BS-7484B |
| Model #: | BS-7484B |
| MPN: | BS-7484B |
| Package weight: | 0.03 kg |
| Package length: | 0.06 m |
| Package width: | 0.04 m |
| Package height: | 0.05 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
