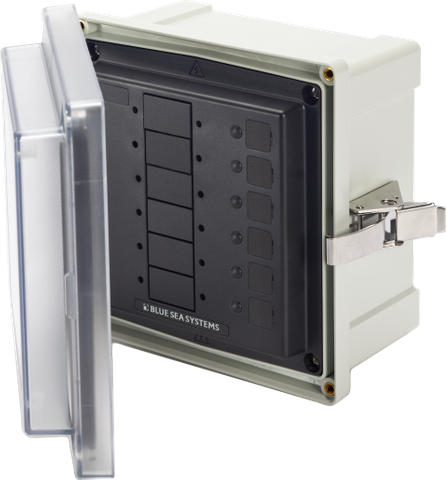

Blue Sea SMS Panel 6-Circuit Blank Electrical Enclosure
Blue Sea SMS Panel 6-Circuit Blank Electrical Enclosure
Suits Carling A & C-Series Breakers - Clear Cover & Polycarbonate Box
Regular price
$393.31
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Customisable Marine-Grade Housing for SMS Circuit Breaker Panels
Building a tailored power distribution system requires an enclosure that offers both flexibility and high-level environmental protection. The Blue Sea Systems SMS (Surface Mount System) 6-Circuit Blank Electrical Enclosure provides a heavy-duty housing designed specifically for custom circuit breaker loading. Ideal for marine vessels, off-grid setups, and specialised recreational vehicles, this enclosure allows electrical installers to configure their exact breaker requirements while protecting vital components from harsh conditions.
Engineered for Custom Breaker Configurations
Unlike pre-populated panels that may include unnecessary switches or incorrect amperage ratings, this enclosure features six blank circuit apertures. These cut-outs are precision-moulded to accommodate Carling Technologies A-Series and C-Series Flat Rocker circuit breakers, as well as ELCI (Equipment Leakage Circuit Interrupter) Main circuit breakers. This modularity reduces the risk of compromised system design, enabling you to group AC mains, DC branch circuits, or shore power protection in a single, unified footprint.
Superior Environmental Protection and Visibility
Standard enclosures often suffer from brittle plastics, degraded seals, and water ingress when exposed to coastal environments or damp storage areas. This unit addresses those vulnerabilities with a rugged, glass-filled polycarbonate mounting box that delivers exceptional impact resistance and structural integrity. An oversized, formed-in-place seamless PUR (polyurethane) gasket creates a tight barrier against moisture and dust.
The enclosure is fitted with a clear, overlapping polycarbonate cover. The overlapping profile not only increases the structural strength of the lid and shields the perimeter gasket from direct exposure, but it also allows operators to visually inspect circuit breaker positions and status indicators without opening the box and breaking the weatherproof seal.
Streamlined Installation and Maintenance
Working inside tight electrical lockers can make wiring difficult. To simplify the fit-out process, this SMS panel enclosure features an easily removable stainless steel hinge pin. Installers can detach the clear cover completely during initial mounting and wiring for unobstructed access to the internal panel and terminals. Once installation is complete, the cover is secured by a robust stainless steel latch that clamps the lid shut without penetrating the enclosure body, preserving the integrity of the internal seal.
Key Features
- Six Blank Circuit Apertures: Ready for custom loading with compatible branch or main breakers.
- Broad Breaker Compatibility: Suits Carling Technologies A-Series and C-Series Flat Rocker breakers and ELCI Main circuit breakers.
- High-Impact Construction: Glass-filled polycarbonate mounting box withstands demanding marine and mobile environments.
- Clear Overlapping Cover: Provides immediate visual verification of breaker status while protecting the seal.
- Seamless PUR Gasket: Oversized, formed-in-place gasket ensures reliable protection against moisture ingress.
- Unobstructed Access: Removable stainless steel hinge pin allows the lid to be taken off during complex wiring tasks.
- Corrosion-Resistant Hardware: Includes a non-penetrating stainless steel latch and stainless steel mounting hardware.
Important Compatibility Note
Please note that this product is supplied as a blank enclosure with an internal panel frame only; circuit breakers, glands, and wiring are sold separately to allow for complete customisation of your electrical system.
Build Your Custom Power Distribution System
Select the Blue Sea SMS 6-Circuit Blank Electrical Enclosure to house and protect your custom Carling breaker configuration in demanding marine or off-grid applications.
SKU: BS-3113B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Electrical enclosure |
| Configuration | SMS panel; 6-circuit blank |
| Mounting box material | Glass-filled polycarbonate |
| Cover | Clear, overlapping cover |
| Gasket | Oversized, formed-in-place seamless PUR gasket |
| Hinge pin | Easily removable stainless steel |
| Latch | Stainless steel; secures the cover without penetrating the enclosure |
| Breaker compatibility | Blank circuit positions accommodate Carling Technologies A- and C-Series Flat Rocker and ELCI Main circuit breakers |
| Included hardware | Stainless steel mounting hardware |
| SKU: | BS-3113B |
| Model #: | BS-3113B |
| MPN: | BS-3113B |
| Package weight: | 0.54 kg |
| Package length: | 0.22 m |
| Package width: | 0.17 m |
| Package height: | 0.12 m |
