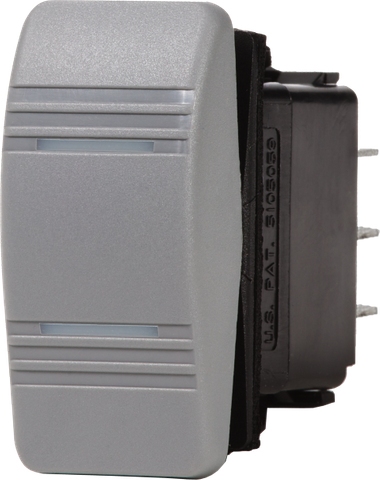

Blue Sea Contura Double-Pole Double-Throw ON-OFF-ON Switch, Grey
Blue Sea Contura Double-Pole Double-Throw ON-OFF-ON Switch, Grey
Ignition Protected Marine Rocker Switch - UL 1500 & ISO 8846 Compliant
Regular price
$37.06
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty Marine Rocker Switch for Complex Circuit Control
Managing multi-circuit electrical systems in harsh marine and off-grid environments requires hardware built to withstand constant exposure to the elements. The Blue Sea Systems Contura Double-Pole Double-Throw (DPDT) switch offers reliable, three-position ON-OFF-ON control in a rugged, panel-mounted form factor. Specifically engineered for integration into Blue Sea Systems water-resistant panels, this grey rocker switch provides tactile, positive actuation for demanding 12V and 24V electrical installations.
Advanced Protection Against Harsh Marine Conditions
Standard automotive switches frequently fail when exposed to coastal environments due to internal corrosion and mechanical fatigue. This Contura series switch is purpose-built to mitigate these risks. Featuring a heavy-duty internal rubber sealing gasket and robust casing, it actively resists moisture ingress, salt spray, and extreme temperature fluctuations (thermoshock). Whether mounted on an exposed flybridge, a centre console, or the dashboard of an off-road 4WD, the switch maintains continuity and mechanical integrity under constant vibration and heavy physical shock.
Certified Ignition Protection for Petrol Vessels
Electrical safety is critical when installing switchgear near fuel sources or in enclosed engine bays. This switch meets stringent UL 1500 and ISO 8846 ignition-protection standards. This certification means the switch is sealed to prevent internal electrical arcs from igniting surrounding flammable gases, making it safe for installation aboard petrol-powered boats and near battery compartments where hydrogen gas may accumulate.
Key Features and Benefits
- Versatile DPDT Configuration: Double-Pole Double-Throw architecture allows simultaneous control of two isolated circuits or easy polarity reversal, featuring a positive centre-off position.
- Certified Ignition Protected: Compliant with UL 1500 and ISO 8846 standards, reducing fire risks aboard petrol-powered vessels.
- Environmental Resilience: Engineered to withstand prolonged exposure to salt spray, moisture, severe vibration, mechanical shock, and thermoshock.
- Visual Status Indicators: Equipped with dual translucent indicator windows on the grey actuator face for clear backlighting and circuit status monitoring.
- Secure Panel Integration: Designed with integrated snap-in mounting clips and a perimeter sealing gasket for a tight, water-resistant fit in compatible panels.
Practical Applications for DPDT ON-OFF-ON Switching
A Double-Pole Double-Throw switch with a centre-off position is essentially two separate switches operating in tandem. This makes it highly versatile for specialised marine, caravan, and commercial vehicle wiring setups:
- Navigation and Anchor Lights: Wire the switch to turn on both running lights and the anchor light in one ON position, turn everything off in the middle, and illuminate only the anchor light in the opposite ON position.
- Dual Bilge Pump Systems: Control two independent bilge pumps or switch between manual override and automatic float switch modes across dual circuits.
- Motor Polarity Reversal: Ideal for reversing the direction of wiper motors, electric winches, trim tabs, or linear actuators by cross-wiring the rear spade terminals.
- Battery Bank Selection: Switch voltage sensing leads or auxiliary loads between primary and secondary battery banks without cross-connecting the systems.
Upgrade Your Electrical Panel
Avoid the reliability issues and corrosion hazards of standard switches. Configure your marine dash, caravan control board, or custom 4WD electrical system with the Blue Sea Contura DPDT ON-OFF-ON Switch for dependable, compliant circuit management.
SKU: BS-8220B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Switch |
| Colour | Grey |
| Pole configuration | DPDT (double-pole, double-throw) |
| Number of poles | 2 |
| Switch positions | 3 (ON-OFF-ON) |
| Mounting / form factor | Panel mount; for Blue Sea Systems water-resistant panels |
| Ignition protected | Yes |
| Standards / compliance | UL 1500; ISO 8846 |
| Resistance | Vibration, shock, thermoshock, moisture and salt spray |
| SKU: | BS-8220B |
| Model #: | BS-8220B |
| MPN: | BS-8220B |
| Package weight: | 0.06 kg |
| Package length: | 0.08 m |
| Package width: | 0.05 m |
| Package height: | 0.06 m |
