Blue Sea 80A C-Series Double-Pole Toggle Circuit Breaker
Blue Sea 80A C-Series Double-Pole Toggle Circuit Breaker
Magnetic Hydraulic Overcurrent Protection & Linked Manual Switching
Regular price
$182.24
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty Magnetic Hydraulic Circuit Protection and Switching
The Blue Sea C-Series 80A Double-Pole Toggle Circuit Breaker combines high-capacity overcurrent protection and reliable manual switching into a single, compact device. Engineered for demanding marine, RV, and off-grid electrical systems, this dual-pole breaker streamlines your distribution panel by eliminating the need for a separate switch and fuse combination. The integrated ergonomic white toggle handle bridges both poles, allowing you to manually isolate the circuit with ease while providing instant visual confirmation of the operational status.
Advanced Magnetic Hydraulic Technology
Unlike standard thermal circuit breakers that rely on heat-sensitive bimetallic strips, the C-Series utilises a precision magnetic hydraulic mechanism. Standard thermal units can suffer from nuisance tripping in hot engine bays, enclosed battery boxes, or extreme Australian summer conditions because ambient heat lowers their trip threshold. The magnetic hydraulic design senses only the actual electrical current flowing through the coil, ensuring the 80A trip rating remains consistent and unaffected by ambient temperature fluctuations. This technology significantly reduces the risk of unexpected power dropouts while maintaining rapid, accurate response times during genuine overload or short-circuit events.
Synchronised Double-Pole Isolation
A double-pole configuration is critical for electrical applications where breaking both conductors simultaneously is required for safety and compliance. The mechanically linked internal trip mechanism ensures that if an overcurrent fault occurs on either line, both poles trip open instantly, even if the external toggle handle is physically held in the ON position. This trip-free design protects sensitive downstream equipment and prevents dangerous back-feeding or partial circuit energisation. It is widely used for isolating positive and negative DC main feeds or active and neutral AC supply lines in complex dual-voltage installations.
Key Features and Benefits
- Dual-Function Design: Combines heavy-duty 80A overcurrent protection and manual circuit switching in one unit to save valuable panel space and simplify wiring.
- Temperature-Stable Operation: Magnetic hydraulic trip mechanism is unaffected by high ambient temperatures, preventing nuisance tripping in hot enclosures or marine engine rooms.
- Common Internal Trip: Mechanically linked poles ensure both circuits disconnect simultaneously if a fault is detected on either pole.
- Trip-Free Safety Mechanism: Internal contacts cannot be held closed manually during a fault condition, ensuring reliable protection against severe overloads.
- Robust Rear Stud Terminals: Heavy-duty screw-down stud terminals provide high-torque, low-resistance connections suitable for large-gauge battery and distribution cables.
- Front-Panel Mounting: Integrated threaded brass inserts allow for secure, straightforward installation into custom switch panels and power distribution boards.
Engineered for Demanding Electrical Environments

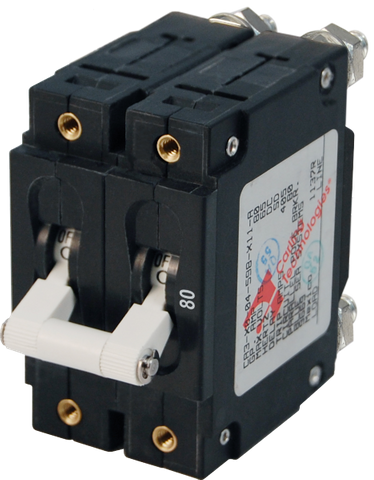

Constructed with a durable black housing and corrosion-resistant internal components, the Blue Sea Systems C-Series is built to withstand vibration, moisture, and harsh operating conditions. The rear heavy-duty stud terminals are designed to accommodate substantial ring lugs, minimising voltage drop and heat build-up across the connection points during continuous high-current loads. Clearly marked amperage labelling on the front face and detailed technical specification labels on the side housing assist installers and inspectors with quick visual verification.
Typical Applications
This 80A double-pole circuit breaker is a versatile component suited to a wide variety of mobile, marine, and stationary power systems:
- Main battery bank isolation and protection in 12V, 24V, and 48V DC off-grid solar setups
- Primary AC shore power or generator transfer switching in marine vessels and motorhomes
- Protecting high-draw inverters, bow thrusters, windlasses, and DC-to-DC charging systems
- Industrial control panels and custom mobile work vehicle power distribution boards
Upgrade Your Electrical Distribution
Ensure your high-current electrical systems are protected against overloads and short circuits with reliable, temperature-independent switching. Add the Blue Sea C-Series 80A Double-Pole Toggle Circuit Breaker to your setup today for professional-grade circuit management.
SKU: BS-7256B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Circuit breaker |
| SKU: | BS-7256B |
| Model #: | BS-7256B |
| MPN: | BS-7256B |
| Package weight: | 0.42 kg |
| Package length: | 0.12 m |
| Package width: | 0.09 m |
| Package height: | 0.09 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
