Blue Sea 50A A-Series Single Pole Toggle Circuit Breaker - White
Blue Sea 50A A-Series Single Pole Toggle Circuit Breaker - White
Magnetic Hydraulic Panel Switch & Protection - Trip-Free Design
Regular price
$32.95
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Integrated Magnetic Hydraulic Switching and Circuit Protection
Dependable 50A Circuit Breaker for Marine, RV, and Off-Grid Electrical Panels
The Blue Sea A-Series 50A Single-Pole Toggle Circuit Breaker delivers industry-standard electrical protection and manual switching in a single, compact device. Designed specifically for integration into Blue Sea Systems electrical distribution panels and custom switchboards, this component eliminates the need to wire separate switches and fuse holders. By consolidating your power distribution setup, it reduces potential failure points, simplifies wiring harnesses, and saves valuable dashboard or bulkhead space in tight installations.
Engineered for demanding environments, this 50A circuit breaker is ideal for marine vessels, caravans, 4WD canopies, and off-grid power systems where reliable overcurrent protection is critical for high-draw appliances and sub-circuits.
Why Choose a Magnetic Hydraulic Circuit Breaker?
Unlike standard thermal circuit breakers that rely on heat-sensitive bimetallic strips, the Blue Sea A-Series utilises a precision magnetic hydraulic mechanism. Standard thermal breakers can suffer from nuisance tripping when installed in hot engine bays, enclosed electrical cabinets, or harsh Australian climates because high ambient temperatures affect their trip threshold. Conversely, a magnetic hydraulic breaker responds solely to actual current flow through a magnetic coil and a fluid-damped core.
This advanced design ensures that the 50A trip curve remains stable and predictable across a wide range of operating temperatures. Furthermore, the internal fluid damping provides a controlled time delay, allowing harmless temporary inrush currents (such as starting a pump or inverter charge cycle) to pass without tripping, while reacting instantly to severe short circuits.
Enhanced Safety with Trip-Free Operation
Safety is paramount when managing high-amperage DC or AC electrical circuits. The Blue Sea BS-7230B incorporates a mechanical trip-free design. In the event of a dangerous overload or short-circuit fault, the internal mechanism will disconnect the circuit even if the white toggle actuator is physically held or jammed in the ON position. This critical safety feature mitigates the risk of melted wiring insulation, damaged electronics, and electrical fires by ensuring the fault must be cleared before power can be restored.
- Dual-Function Design: Combines manual ON/OFF circuit switching with reliable 50A overcurrent protection in one unit.
- Magnetic Hydraulic Mechanism: Provides consistent, temperature-stable trip performance immune to ambient heat fluctuations.
- Trip-Free Safety: Internal contacts cannot be held closed manually during an active fault-current condition.

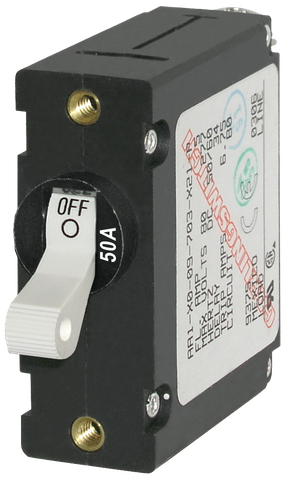

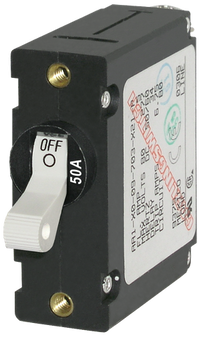

- Clear Visual Status: High-visibility white toggle actuator features a clearly marked 50A rating and distinct OFF position indicator.
- Robust Panel Mounting: Equipped with durable threaded brass inserts for secure, vibration-resistant front panel installation.
Built for Demanding Mobile and Marine Applications
Inferior circuit protection devices often suffer from loose terminals, brittle plastics, and inconsistent trip tolerances under constant vibration. The Blue Sea A-Series is constructed with a heavy-duty housing and robust brass mounting inserts to withstand the continuous shock and vibration experienced in marine hulls and corrugated off-road tracks. The front actuator face clearly displays the 50A current rating for rapid circuit identification during troubleshooting, while the side-mounted technical label details regulatory compliance and electrical ratings for straightforward inspection.
Ideal Applications
- Main or branch circuit protection in marine AC/DC electrical panels
- High-draw 12V and 24V distribution boards in caravans, motorhomes, and camper trailers
- Protecting windlasses, pumps, lighting arrays, and auxiliary battery circuits
- Custom off-grid solar control cabinets and mobile service vehicles
Upgrade Your Electrical Panel Protection
Ensure your electrical distribution system is protected against overloads and short circuits without the hassle of replacing blown fuses. Add the Blue Sea A-Series 50A Single-Pole Toggle Circuit Breaker to your panel setup today for professional-grade switching and dependable circuit safety.
SKU: BS-7230B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Circuit breaker |
| SKU: | BS-7230B |
| Model #: | BS-7230B |
| MPN: | BS-7230B |
| Package weight: | 0.3 kg |
| Package length: | 0.1 m |
| Package width: | 0.08 m |
| Package height: | 0.11 m |
