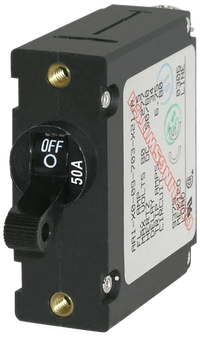

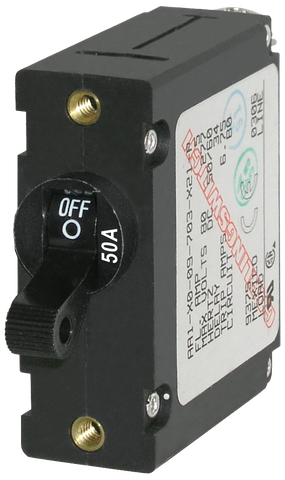

Blue Sea 50A A-Series Single Pole Toggle Circuit Breaker - Black
Blue Sea 50A A-Series Single Pole Toggle Circuit Breaker - Black
Magnetic Hydraulic Operation, Trip-Free Design & ABYC Compliant
Regular price
$32.95
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Magnetic Hydraulic Circuit Protection and Switching
The Blue Sea A-Series 50A Single-Pole Toggle Circuit Breaker (BS-7228B) delivers industry-standard electrical protection and manual circuit control in a single, compact panel-mount device. Engineered specifically for demanding marine, caravan, 4WD, and off-grid power distribution systems, this breaker eliminates the need for separate switches and fuse holders, streamlining your switchboard layout and reducing connection points where voltage drop or failure can occur.
Why Choose Magnetic Hydraulic Technology?
Unlike standard thermal circuit breakers that rely on heat-sensitive bimetallic strips, the Blue Sea A-Series utilises a precision magnetic hydraulic mechanism. Thermal breakers are often susceptible to ambient temperature fluctuations, which can cause nuisance tripping in hot engine bays, canopies, or enclosed electrical cabinets. By contrast, a magnetic hydraulic circuit breaker responds purely to current flow through an electromagnetic coil combined with a fluid-damped delay core.
This advanced internal architecture ensures the 50A trip threshold remains stable regardless of surrounding environmental temperatures. It permits brief, harmless inrush currents typical of starting motors or inductive loads while reacting swiftly to genuine overcurrent and short-circuit faults.
Uncompromising Safety with Trip-Free Design
In high-energy DC and AC electrical systems, preventing sustained fault currents is critical to protecting wiring harnesses and connected appliances from thermal damage. This circuit breaker features a trip-free mechanism, meaning the internal contacts will open and remain disconnected during an overcurrent fault even if the external black toggle actuator is manually held or wedged in the ON position. Once the fault is cleared, the ergonomic toggle switch with high-contrast white 50A and OFF markings provides clear visual confirmation of circuit status and allows for immediate reset without the need to carry spare fuses.
Key Features and Benefits
- Dual-Function Design: Combines manual ON/OFF circuit switching with reliable 50A overcurrent protection in one unit.
- Temperature-Stable Operation: Magnetic hydraulic mechanism prevents nuisance tripping in high-temperature enclosures and marine engine rooms.
- Trip-Free Safety Mechanism: Internal contacts cannot be forced closed during an active fault condition, significantly reducing fire and equipment risks.
- Reinforced Mounting Hardware: Equipped with standardised top and bottom brass threaded inserts for secure, vibration-resistant installation in custom or pre-fabricated electrical panels.
- Global Compliance Standards: Meets strict ABYC marine standards, holds UL 1077 recognition, and carries TUV, CE, and CSA certifications for international engineering compliance.
Engineered for Marine, RV, and Off-Grid Panels
Constructed with corrosion-resistant materials and durable brass mounting inserts, the BS-7228B is built to withstand the harsh vibration and moisture typical of Australian coastal and outback touring conditions. It serves as the standard building block for Blue Sea Systems 360 Panel System layouts and custom laser-cut dashboards alike, suitable for protecting high-draw sub-circuits, windlasses, pumps, lighting arrays, and auxiliary battery feeds.
Upgrade Your Electrical Panel Protection
Ensure your electrical distribution board meets professional marine and automotive safety standards. Add the Blue Sea A-Series 50A Toggle Circuit Breaker to your build today for dependable, temperature-stable circuit control.
SKU: BS-7228B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Circuit breaker |
| SKU: | BS-7228B |
| Model #: | BS-7228B |
| MPN: | BS-7228B |
| Package weight: | 0.6 kg |
| Package length: | 0.12 m |
| Package width: | 0.1 m |
| Package height: | 0.1 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
