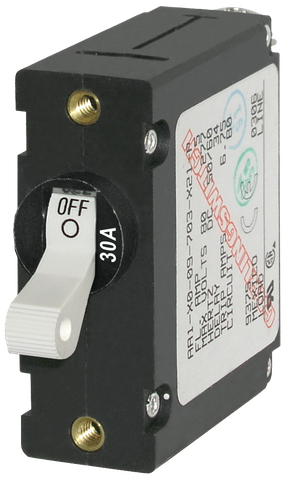

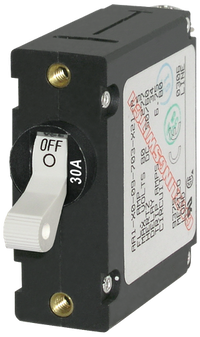

Blue Sea 30A A-Series Single Pole Toggle Circuit Breaker - White
Blue Sea 30A A-Series Single Pole Toggle Circuit Breaker - White
30A Magnetic-Hydraulic AC Main Protection - White Toggle - Trip-Free
Regular price
$32.95
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Integrated Magnetic-Hydraulic Switching and Circuit Protection
The Blue Sea A Series Double Pole Circuit Breaker (BS-7222B) combines dependable manual switching and automatic overcurrent circuit protection into a single, compact magnetic-hydraulic device. Designed specifically for demanding marine, RV, and industrial electrical panels, this 30A breaker eliminates the need for separate switches and fuse holders, streamlining your distribution board layout while enhancing overall system safety.
Featuring a clean white toggle actuator with high-visibility markings, this unit is typically deployed for AC main circuit protection in marine shore power systems, inverter distribution boards, and off-grid generator panels. By isolating both active and neutral conductors simultaneously, a double-pole configuration provides critical safety for AC installations where reverse polarity or residual voltage on the neutral line could pose a hazard.
Why Choose a Magnetic-Hydraulic Circuit Breaker?
Standard thermal circuit breakers rely on heat to trip, meaning their performance can fluctuate significantly in high ambient temperatures such as inside an engine room, a sun-exposed canopy, or a tightly packed electrical enclosure. The Blue Sea Systems A-Series utilizes a precision magnetic-hydraulic mechanism. This ensures the trip point remains unaffected by ambient temperature variations, preventing nuisance tripping in hot Australian conditions while delivering consistent, predictable overcurrent response when a true fault occurs.
Engineered for Safety: Trip-Free Design
In high-stakes electrical environments, operator error or mechanical obstruction cannot be allowed to compromise safety. This breaker incorporates a mechanical trip-free design, meaning the internal contacts cannot be held closed manually during a fault current condition. Even if the white toggle switch is physically held or wedged in the ON position, the internal mechanism will still trip and break the circuit immediately upon detecting an overload or short circuit, reducing the risk of cable damage and electrical fires.
Key Features and Benefits
- 30A Double-Pole Configuration: Simultaneously switches and protects both poles, making it the industry standard for marine AC main circuit protection.
- Magnetic-Hydraulic Mechanism: Delivers consistent overcurrent protection unaffected by ambient temperature extremes, eliminating thermal nuisance tripping.
- Dual-Function Design: Combines routine manual circuit switching with automatic fault interruption in a durable black housing.
- Trip-Free Operation: Internal contacts disconnect during an electrical fault even if the toggle actuator is physically held in the ON position.
- Secure Panel Mounting: Built with integrated brass threaded inserts for reliable, vibration-resistant installation into custom or pre-fabricated switch panels.
- Global Marine Compliance: Meets ABYC standards, is UL 1077 recognised, TÜV certified, CE marked, and CSA certified for complete confidence in regulated installations.
Applications and Installation Confidence
Whether you are upgrading a vessel's shore power intake, building a custom 240V AC distribution panel for an off-grid motorhome, or protecting sensitive industrial equipment, the BS-7222B provides professional-grade reliability. Its compact A-Series enclosure and ergonomic white toggle integrate cleanly into modern helm stations and electrical lockers.
Upgrade Your Electrical Panel Protection
Ensure your AC main distribution system meets strict marine and off-grid safety standards. Add the Blue Sea A Series 30A Double Pole Circuit Breaker to your build today for dependable, temperature-stable circuit protection.
SKU: BS-7222B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Circuit breaker |
| Number of poles | 2 |
| Standards / compliance | ABYC, UL 1077, TUV, CE, CSA |
| SKU: | BS-7222B |
| Model #: | BS-7222B |
| MPN: | BS-7222B |
| Package weight: | 0.36 kg |
| Package length: | 0.1 m |
| Package width: | 0.08 m |
| Package height: | 0.11 m |
