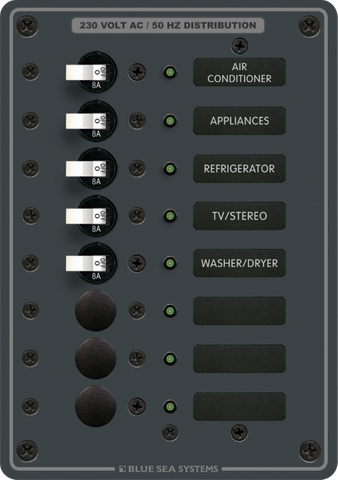

Blue Sea 230VAC 100A 8 Position Circuit Breaker Panel with 8A Breakers (Portrait)
Blue Sea 230VAC 100A 8 Position Circuit Breaker Panel with 8A Breakers (Portrait)
Pre-Wired 100A Busbars - 5x 8A Breakers & 3 Spare Slots - Backlit
Regular price
$510.68
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Blue Sea Systems 8159 Traditional Metal 230V AC Distribution Panel
Pre-Wired AC Circuit Protection for Marine, Caravan, and Off-Grid Electrical Systems
Managing high-voltage alternating current in mobile, marine, or remote off-grid environments demands uncompromising safety and reliability. The Blue Sea Systems 8159 230V AC 8-Position Distribution Panel provides a centralised, professional-grade solution for controlling and protecting your 230V AC branch circuits. Engineered specifically for the rigours of marine vessels, caravans, motorhomes, and specialised commercial vehicles, this portrait-oriented panel streamlines complex AC wiring into a safe, accessible interface.
Unlike standard household switchboards that can fail under constant vibration or moisture exposure, this distribution panel features a heavy-duty 3mm aluminium faceplate finished with a durable, corrosion-resistant powder coat. It is built to withstand harsh coastal and mobile conditions while maintaining a clean, modern aesthetic on your helm or control board.
Engineered for Safety and Simplified Installation
Wiring an AC distribution system from scratch introduces significant labour and the risk of loose connections. The Blue Sea Systems 8159 mitigates these risks by arriving fully pre-wired with all hot, neutral, and safety ground buses installed. This factory-terminated busbar architecture ensures secure, low-resistance connections across all circuits, drastically reducing installation time for marine electricians and system integrators.
At the core of the panel's protection are the included A-Series single-pole magnetic-hydraulic circuit breakers. Combining switching and circuit protection into a single device, these toggle breakers feature a "trip-free" design, meaning they cannot be manually held in the "ON" position during a fault or overload condition. Because they operate on a magnetic-hydraulic principle rather than thermal bi-metal strips, their trip ratings remain stable and accurate regardless of high ambient temperatures inside enclosed engine rooms or electrical cabinets.
Key Features and System Benefits
- Fully Pre-Wired Busbars: All hot, neutral, and safety ground buses are factory-installed to ensure compliance and reduce installation time.
- Ready for Immediate Use & Future Expansion: Supplied with five pre-installed 8A single-pole A-Series toggle circuit breakers, plus three blanked positions with protective plugs to accommodate future 230V AC appliances.
- Integrated Backlit Labels: All eight circuit label positions feature standard backlighting for effortless readability in low-light cabins or night navigation, with no additional backlighting kit required.
- Visual Circuit Confirmation: Equipped with green 230V AC LED indicators across all eight positions to provide immediate visual confirmation when a circuit is energised.
- Heavy-Duty Construction: Crafted from a robust 3mm aluminium faceplate to resist flexing, vibration, and corrosion in demanding environments.
- Customisable Identification: Includes a 30-piece basic AC label set to clearly mark inverters, water heaters, battery chargers, and general power outlets.
Versatile Application for 230V AC Loads
With a maximum panel capacity of 100A, this distribution board is capable of managing substantial shore power or inverter-fed AC systems. The five pre-installed 8A breakers are ideally sized for standard 230V appliances, while the three spare slots allow you to easily integrate additional A-Series breakers tailored to specific loads as your system grows.
Upgrade your vessel or off-grid vehicle with a dependable, industry-standard AC management solution. Add the Blue Sea Systems 8159 230V AC Distribution Panel to your build today for streamlined installation and long-term electrical safety.
SKU: BS-8159B
SPECIFICATIONS
Specifications
| Model | 8159 |
|---|---|
| Positions | 8 |
| Nominal Voltage | 230 V AC |
| Maximum Amperage | 100 A |
| Height | 190.5 mm |
| Width | 133.35 mm |
| Included Circuit Breakers | 5 × A-Series White Toggle Circuit Breaker - Single Pole 8 A (7299) |
| Included Label Set | 1 × Basic AC Panel Label Set - 30 Labels (8031) |
| Included LEDs | 8 × LED - 230 V AC Green (8134) |
| Buses | All hot, neutral, and safety ground buses installed, fully pre-wired |
| Label Backlighting | All circuit label positions are backlit on standard panels - No kit required |
| SKU: | BS-8159B |
| Model #: | BS-8159B |
| MPN: | BS-8159B |
| HS code: | 8536200040 |
| Country of origin: | MX |
| Package weight: | 1.92 kg |
| Package length: | 0.34 m |
| Package width: | 0.24 m |
| Package height: | 0.11 m |
