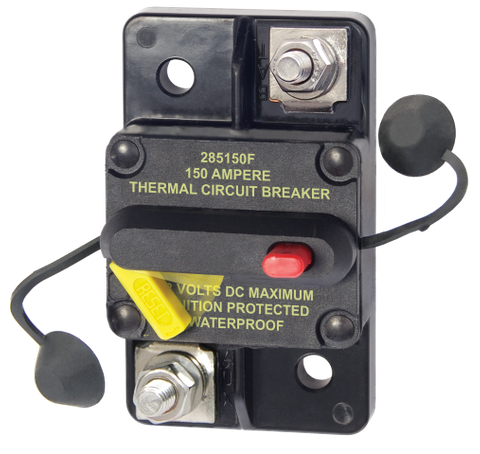

Blue Sea 150A 285-Series Surface Mount Thermal Circuit Breaker
Blue Sea 150A 285-Series Surface Mount Thermal Circuit Breaker
SAE J1171 Ignition Protected - Weather-Resistant & Trip-Free
Regular price
$97.48
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty 150A Circuit Protection and Switching for Marine and Off-Grid Systems
The Blue Sea 285-Series 150A Surface Mount Thermal Circuit Breaker delivers reliable overcurrent protection and manual switching in a single, compact unit. Engineered specifically for harsh marine, RV, and off-grid electrical environments, this heavy-duty breaker safeguards high-amperage wiring and critical appliances from damage caused by electrical shorts or sustained overloads. By combining switching and circuit protection into one device, it simplifies system layouts and eliminates the need for separate battery switches and fuse holders.
Certified Ignition Protection for Marine Safety
When installing electrical components in enclosed spaces or aboard petrol-powered vessels, safety compliance is critical. This 285-Series circuit breaker is fully ignition protected and meets rigorous SAE J1171 external ignition protection requirements. This certification ensures the device will not ignite surrounding flammable gases or vapours if a high-current fault occurs, making it safe for installation in boat bilges, engine compartments, and battery boxes alongside dual battery systems.
Superior Reliability Over Standard Breakers
Inferior circuit breakers often suffer from voltage drop, nuisance tripping, and terminal corrosion when exposed to moisture and vibration. Furthermore, low-grade breakers can sometimes be forced into the closed position during an active fault, creating a severe fire risk. The Blue Sea 285-Series eliminates these hazards with a precision-engineered "trip-free" mechanism. This design ensures the breaker cannot be held closed manually while a fault current persists, protecting your cabling and equipment until the underlying electrical issue is resolved.
- Dual-Function Design: Combines 150A thermal overcurrent protection with manual on/off switching via a recessed red push-to-trip button.
- High-Visibility Status Indicator: Features a bright yellow reset lever that clearly indicates when the circuit is open, allowing for rapid visual inspection in dark compartments.
- Trip-Free Safety Mechanism: Prevents the circuit from being held closed during an active overcurrent condition, mitigating fire and equipment damage risks.
- Marine-Grade Construction: Weather-resistant housing and heavy-duty stainless steel connection studs resist corrosion in coastal and high-humidity environments.
- Integrated Terminal Protection: Equipped with flexible rubber terminal caps to shield live connections from accidental shorting and debris.
- SAE J1171 Compliant: Certified ignition protected for safe installation aboard petrol-powered boats and enclosed battery compartments.
Built for Demanding Australian Conditions
From corrugated outback tracks to salt-laden marine environments, electrical connections are constantly subjected to vibration and moisture. The Blue Sea 285-Series features pre-drilled mounting holes for secure surface installation on flat panels or bulkheads. Its heavy-duty stainless steel terminal studs provide robust mechanical strength for large-gauge battery and inverter cables, while the integrated flexible rubber boots cover the exposed lugs to prevent accidental short circuits from shifting tools or equipment.
Ideal Applications
This 150A surface mount breaker is suited to a wide variety of high-current DC electrical systems, including:
- Main circuit protection for 12V and 24V house battery banks in caravans, camper trailers, and motorhomes
- Safe isolation and overcurrent protection for DC-DC chargers, power inverters, and windlasses
- Marine electrical systems, particularly in engine bays and bilge areas on petrol-powered boats
- 4WD dual battery setups, winch control circuits, and commercial vehicle auxiliary power systems
Secure Your High-Current Electrical System
Upgrade your marine, 4WD, or off-grid power setup with industry-standard circuit protection. Add the Blue Sea 285-Series 150A Surface Mount Thermal Circuit Breaker to your system today for dependable, compliant overcurrent safety.
SKU: BS-7189B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Thermal circuit breaker |
| Mounting / form factor | Surface mount |
| Ignition protected | Yes |
| Standards / compliance | SAE J1171 |
| SKU: | BS-7189B |
| Model #: | BS-7189B |
| MPN: | BS-7189B |
| Package weight: | 0.36 kg |
| Package length: | 0.1 m |
| Package width: | 0.08 m |
| Package height: | 0.06 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
