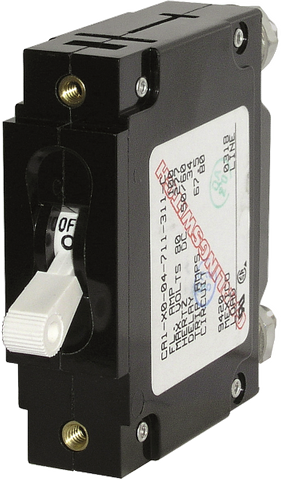

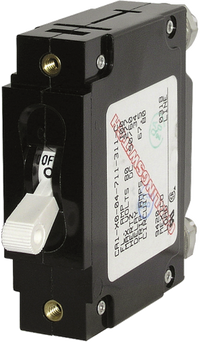

Blue Sea 100A C-Series Single-Pole Toggle Circuit Breaker
Blue Sea 100A C-Series Single-Pole Toggle Circuit Breaker
Magnetic-Hydraulic Overcurrent Protection & Heavy-Duty Rear Studs
Regular price
$80.31
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Integrated Magnetic-Hydraulic Circuit Protection and Switching
The Blue Sea C-Series 100A Single-Pole Toggle Circuit Breaker combines manual circuit switching and reliable overcurrent protection into one compact, robust unit. Engineered for demanding electrical systems across marine, RV, caravan, and off-grid solar installations, this heavy-duty breaker eliminates the need for a separate switch and fuse block. By consolidating these components, it saves valuable panel space, reduces wiring complexity, and minimises potential failure points in high-amperage circuits.
Advanced Magnetic-Hydraulic Technology
Unlike standard thermal circuit breakers that rely on a heat-sensitive bimetallic strip, the C-Series utilises a precision magnetic-hydraulic trip mechanism. Standard thermal units can suffer from nuisance tripping in hot engine bays, battery enclosures, or sun-exposed distribution panels, and may fail to trip promptly in freezing conditions. A magnetic-hydraulic breaker operates via a solenoid coil and a fluid-damped mechanical delay, meaning its trip curve remains entirely unaffected by ambient temperature fluctuations. It delivers consistent, predictable overcurrent protection while accommodating brief, normal startup inrush currents from inverters, windlasses, and heavy DC loads without false tripping.
Key Features and Benefits
- Dual-Function Design: Combines manual ON/OFF circuit switching with automatic overcurrent trip protection in a single device.
- Temperature-Stable Operation: Magnetic-hydraulic actuation ensures accurate trip performance regardless of hot or cold ambient conditions.
- Trip-Free Mechanism: Internal safety architecture prevents the breaker from being manually held in the ON position while an electrical fault or overload persists.
- High-Current Rear Studs: Equipped with heavy-duty rear terminal studs designed to securely accept high-amperage ring terminals and large-gauge battery cables.
- Flush Panel Mounting: Integrated threaded mounting inserts allow for a clean, secure installation into custom switch panels and power distribution boards.
- Ergonomic White Toggle: Provides clear visual indication of circuit status and smooth manual actuation for main or branch circuit isolation.
Reducing Risk in High-Amperage Electrical Systems
Managing 100A loads requires components that prevent excessive voltage drop and thermal buildup. Inferior protection devices often feature undersized terminals or poorly calibrated mechanisms that introduce resistance, generate excess heat, or fail to isolate faults safely. The Blue Sea C-Series mitigates these risks through its robust internal contacts and solid rear stud terminals, ensuring a low-resistance connection for heavy cable lugs. Furthermore, the trip-free safety design protects your wiring harness and connected appliances by ensuring the circuit immediately opens during a short circuit or sustained overload, even if the white toggle actuator is physically obstructed.
Ideal Applications
This 100A single-pole breaker is widely used by marine electricians, auto electricians, and off-grid system builders for:
- Main DC circuit protection and battery bank isolation in boats, yachts, and marine vessels
- High-current sub-panel feeds in caravans, camper trailers, and motorhomes
- Overcurrent protection for DC-DC chargers, small-to-medium inverters, and heavy-duty winches
- 4WD dual battery systems and industrial mobile power setups
Upgrade Your Circuit Protection
Ensure safe, temperature-independent overcurrent management for your high-draw electrical circuits. Add the Blue Sea C-Series 100A Toggle Circuit Breaker to your distribution setup today for dependable switching and protection.
SKU: BS-7250B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Circuit breaker |
| SKU: | BS-7250B |
| Model #: | BS-7250B |
| MPN: | BS-7250B |
| Package weight: | 0.36 kg |
| Package length: | 0.1 m |
| Package width: | 0.08 m |
| Package height: | 0.08 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
