Victron Battery Indicator Panel (M8 Eyelet Connector/ 30A ATO Fuse) (Suits IP65 Battery Charger)

IP65-rated LED status panel with M8 eyelets and 30A ATO fuse


Regular price $35.00
$39.60
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay MastercardPayPalShop Pay Visa

10

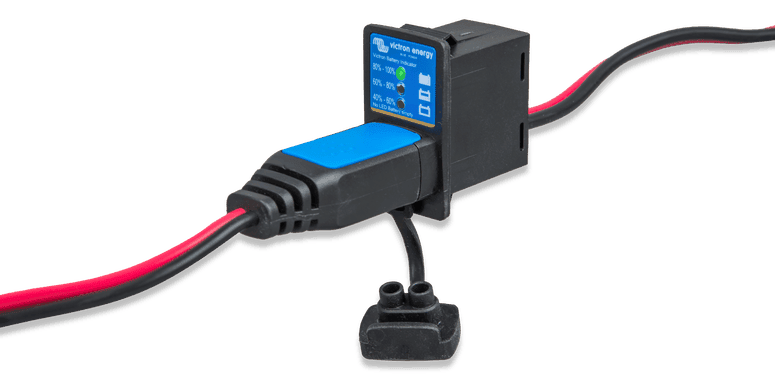

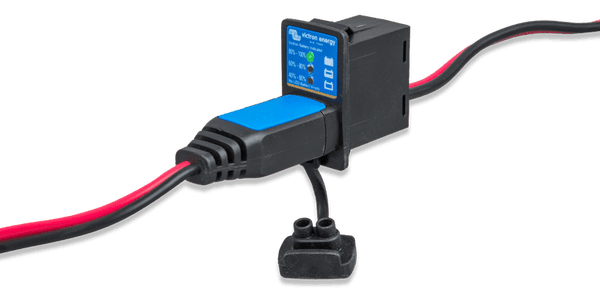

Victron battery indicator panel with status LEDs and charging cable plugged into the interface

Victron Battery Indicator Panel (M8 Eyelet Connector/ 30A ATO Fuse) (Suits IP65 Battery Charger)

DESCRIPTION

Victron Battery Indicator Panel: Real-Time Voltage Monitoring for 12V Lead-Acid Systems

Stay Informed, Protect Your Battery Investment

The Victron Battery Indicator Panel provides a straightforward, at-a-glance method to monitor the state of charge of your 12V lead-acid battery. Designed as a dedicated accessory for the Victron Blue Smart and Blue Power IP65 charger range, this panel eliminates guesswork and helps prevent deep discharge damage. By offering clear visual feedback through its three-colour LED system, it enables timely charging decisions, extending battery service life and reducing the risk of unexpected power loss in critical applications.

Unlike generic voltage meters that require interpretation, this panel translates battery voltage into an immediate, actionable status: green indicates a full charge, orange suggests it is time to charge, and red warns of a low state of charge. If no light is visible, the battery voltage has dropped to a critically low level, signalling an urgent need for attention to avoid permanent damage. This intuitive design is particularly valuable in installations where regular manual voltage checks are impractical, such as in caravans, marine vessels, and remote off-grid systems.

Engineered for Harsh Environments

Built to withstand the demanding conditions often encountered in mobile and outdoor installations, the panel carries an IP65 protection rating. This ensures complete protection against dust ingress and resistance to low-pressure water jets from any direction. The robust housing and sealed construction make it suitable for use in engine bays, exposed marine consoles, and outdoor equipment enclosures where moisture and particulate contamination are constant concerns.

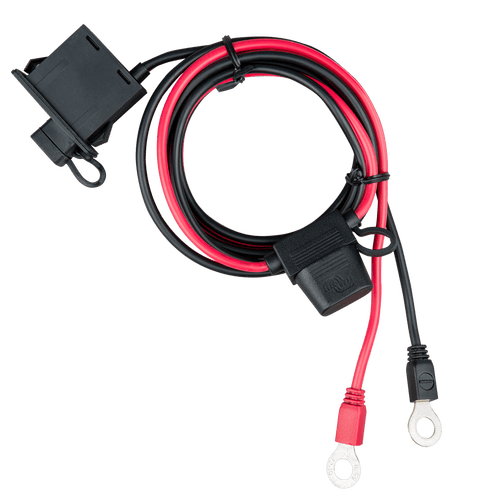

The integrated M8 eyelet connectors (approx. 5/16" ring terminals) provide a secure, vibration-resistant connection to the battery terminals, minimising the risk of intermittent contact that can lead to inaccurate readings or electrical noise. The 1.5-metre cable, with a cross-section of 3.3 mm² (approx. 12 AWG), offers sufficient reach for most installations while maintaining low voltage drop. A 30A ATO blade fuse is incorporated inline to protect the circuit against overcurrent conditions, adding a layer of safety without the need for additional external fusing.

Key Features at a Glance

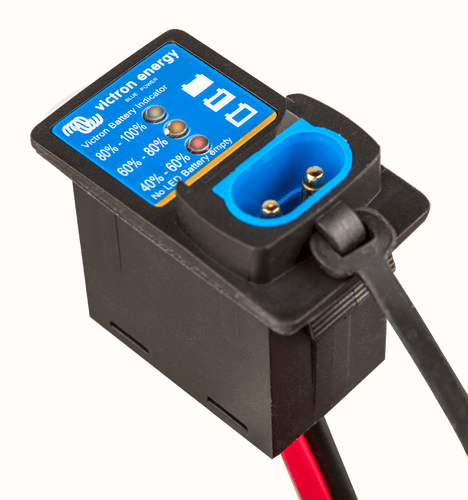

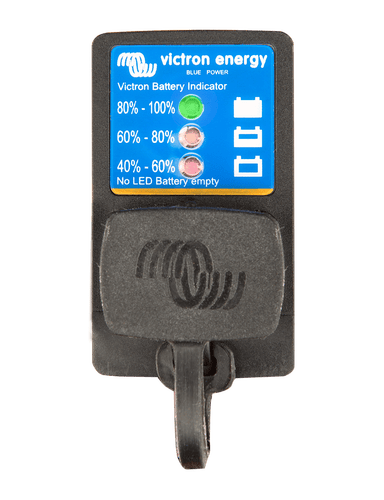

  • Three-colour LED status indicator for immediate battery state-of-charge assessment
  • IP65-rated enclosure resists dust and water, ideal for harsh environments
  • M8 eyelet connectors ensure a secure, low-resistance battery connection
  • Integrated 30A ATO fuse provides overcurrent protection
  • Ultra-low back current drain of 0.9 mA preserves battery charge during storage
  • Compact 45 x 26 x 50 mm housing with 39 x 22 mm panel cut-out for flush mounting

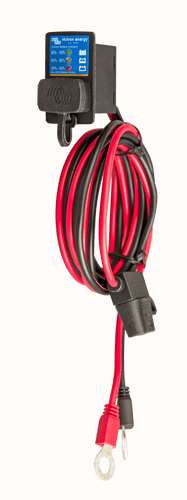

  • 1.5 m cable with 3.3 mm² conductors balances flexibility and minimal voltage drop
  • Compatible with 12V flooded, GEL, and AGM lead-acid battery types

Designed for Seamless Integration

Installation is simplified by the panel’s compact dimensions and standardised cut-out requirement. The flush-mount design allows it to be integrated neatly into dashboards, control panels, or battery compartments, providing a professional finish. The dedicated charging socket on the panel accepts the output connector from compatible Victron Blue Smart IP65 chargers, creating a tidy, single-point connection for both monitoring and charging. This eliminates the need to access the battery terminals directly for routine charging, reducing wear on connections and improving user convenience.

The panel operates across a voltage range of 6 to 15V DC, accommodating the normal voltage fluctuations of a 12V lead-acid system during charging and discharging cycles. Its minimal back current consumption of just 0.9 mA ensures that even when left connected indefinitely, it will not significantly discharge the battery—a critical consideration for seasonal vehicles or equipment stored for extended periods.

Applications

This indicator panel is purpose-built for 12V lead-acid battery systems where reliable state-of-charge information is essential. Typical use cases include:

  • Caravans and camper trailers requiring quick battery status checks
  • Marine vessels where IP65 protection is mandatory for longevity
  • Off-grid solar installations using Victron IP65 chargers as a primary or backup charge source
  • Automotive and 4WD dual-battery systems
  • Portable power packs and equipment trailers

Note: This panel is designed exclusively for 12V lead-acid batteries (flooded, GEL, AGM) and is not suitable for lithium or other battery chemistries.

Protect Your Power System with Confidence

Equip your battery setup with the Victron Battery Indicator Panel and gain the clarity needed to manage your energy storage effectively. Whether you are preparing for a weekend away or maintaining a critical off-grid system, this panel delivers the reliable status information required to keep your batteries in peak condition. Add it to your Victron IP65 charger setup today and take the guesswork out of battery maintenance.


SKU: VIC-BPC900110114

SPECIFICATIONS

Specifications

Accessory ForBlue Smart and Blue Power IP65 Chargers
Suitable For12 V Lead Acid Batteries Only (Flooded, GEL, AGM)
Voltage6-15 V
Back Current Drain0.9 mA
Maximum Current30 A
Length of Cable1.5 m
Cable Diameter3.3 mm² [AWG12]
Panel Cut-out39 x 22 mm
Size45 x 26 x 50 mm
Battery Connection TypeM8 Eyelet Connectors
Fuse30 A ATO Fuse
Weight0.17 kg
Protection CategoryIP65

SKU: VIC-BPC900110114
Barcode: 8719076043072
Model #: BPC900110114
MPN: BPC900110114
