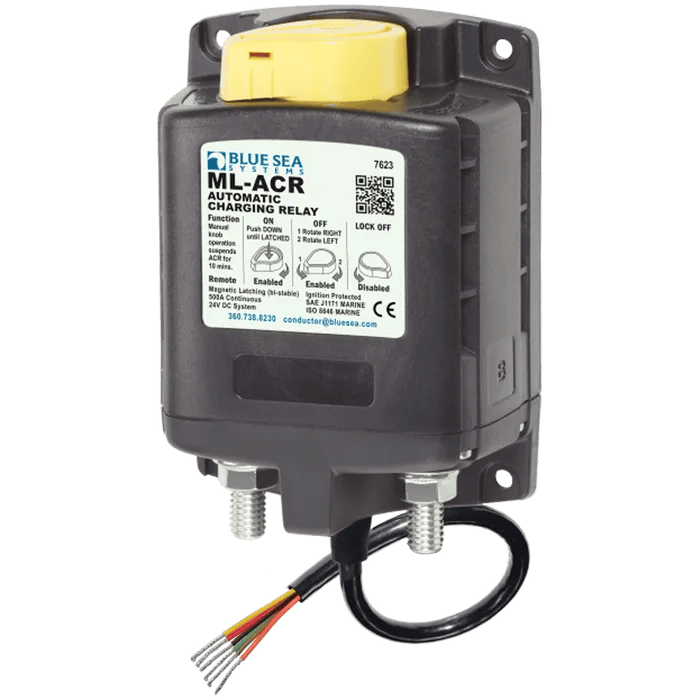

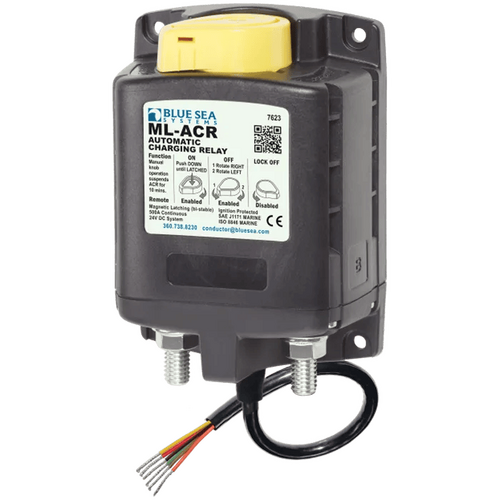

Blue Sea ML Series Auto Charge Relay 500A 24V


Was $420.00
$399.00
Save $21.00
Sale Ends in
At 23:59 pm, 30 June 2024
Special Order

Check out our in-stock alternatives options:

Blue Sea logo

Enjoy free AusPost shipping for orders over $100 on most items, including our Blue Sea ML Series Auto Charge Relay 500A 24V, to the majority of areas. Check your shipping details on the cart page for more information.

Description

500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine

  • Manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing
  • Automatically manages the charging of two large battery banks
  • Allows paralleling of battery banks for emergency starting
  • 500 Ampere continuous rating to support high-output alternators
  • Magnetic Latch (ML)—ACR draws very low current (<40mA to monitor terminal voltage) in the “ON” or “OFF” states, and draws moderate current for very short time when changing state
  • Dual sensing—senses charge on both battery banks
  • Start Isolation (SI)—can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
  • Engine Isolation (EI)—can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
  • Senses charging on two battery banks
  • LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation
  • 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8″ (22mm) stud length accepts multiple cable terminals
  • Silver alloy contacts provide high reliability for switching live loads
  • Label recesses for circuit identification
  • ML-Series Remote Control Contura Switch is not supplied with ACR. PN 2146 available as a separate item.

(BS-7623B)

SKU BS-7623B
MPN # BS-7623B
