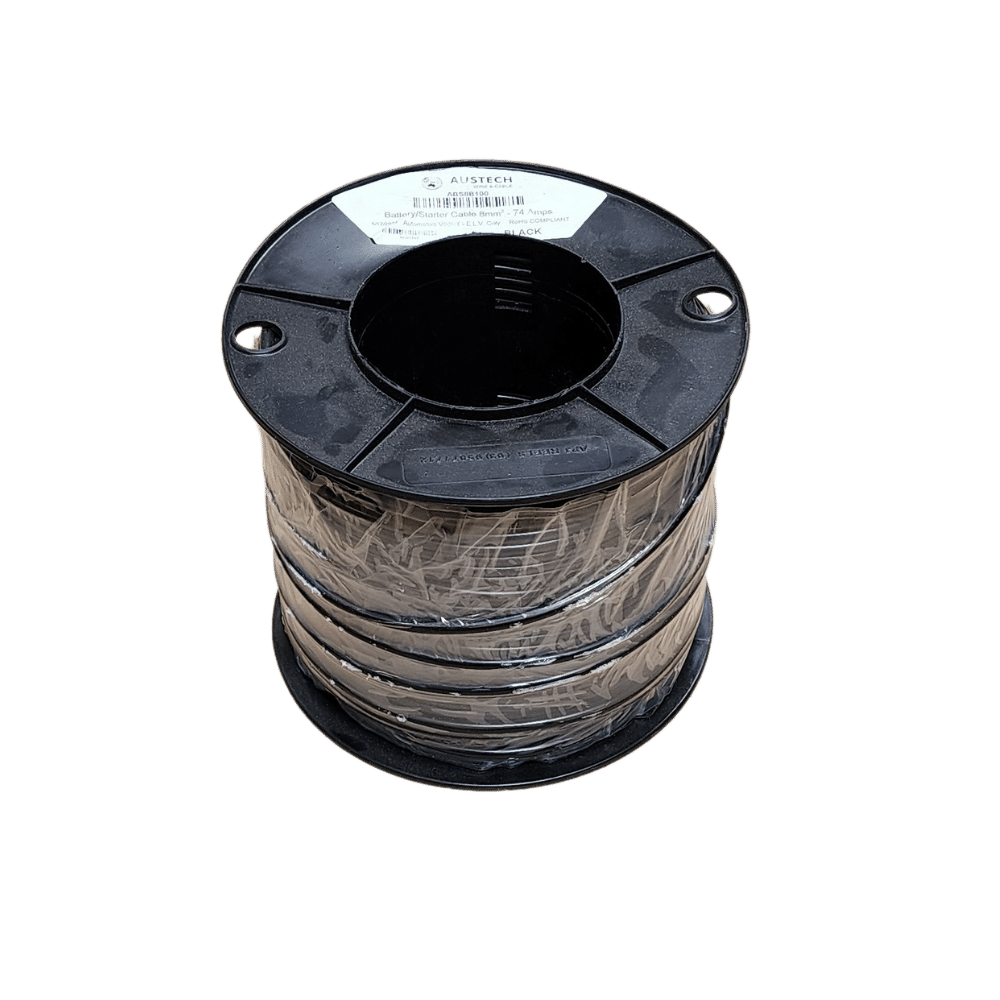

100m Roll of 8B&S (8mm²) Black Single Core Automotive Cable

112/0.30

$319.00
In Stock
Austech logo

Free Fastway shipping for orders over $500 on items this size to capital cities. Calculate shipping in cart for more details.

Maximize Performance with Premium Automotive Cables

When it comes to your automotive and outdoor wiring needs, don't settle for less than the best. Our top-tier copper conductor cables, Australian made with durability and performance in mind, are the perfect choice for savvy consumers looking to enhance their automotive, trailer, or garden lighting systems.

Why Choose Our Cables?

Unmatched Quality: Made with high-conductivity, oxygen-free copper, our cables promise exceptional electrical flow without losing integrity over time, with insulation rated up to 90°C.

Versatile Use: Whether powering up a caravan, connecting a toy hauler, or lighting up a garden path, our cables offer the versatility and strength needed for a variety of applications.

Safety First: Compliant with RoHS and stringent Australian and New Zealand safety standards, these cables guarantee peace of mind with every use.

Tailored for Automotive Excellence: With amp ratings based on JASO standards, our cables are designed to meet the specific demands of automotive duty cycles, delivering reliable power where you need it most.

Simple Selection, Powerful Results

Our range spans from slim to thick gauges, tailored to carry different levels of electrical current—so you can easily find the perfect match for your specific project. Each option is clearly laid out in an easy-to-understand table, ensuring you make an informed choice.

Remember, while our cables are designed for the rigors of automotive and outdoor lighting, they're not suitable for main power supply connections. Always consult with a professional for installation to ensure the best results.

Invest in Reliability

By choosing our cables, you're not just buying a product; you're investing in reliability, efficiency, and the longevity of your energy systems. So why wait? Power up your journey with our premium cables and ensure your vehicle and outdoor spaces are equipped with the best in market.

Visit Austech Cables Official Website for More Details
(ABS8B100)

Specifications

  • Conductor: Copper Conductor to AS/NZS 1125
  • Insulation: V90HT to AS/NZS 3191
  • Colour: Black
  • Amp rating based on 100% duty cycle
  • Amp ratings based on JASO D609:2001 single core at ambient temperature of 30C
  • Not suitable for mains connection
  • Voltage Rating AC 50V / DC 120V to AS/NZS 3000:2000
Code Industry Equivalent (B&S) Number of Strands x Area (mm²) Amp Rating at 30°C Average Max D.C. Resistance at 20°C (Ω/m) Nominal Insulation Thickness (mm) Nominal O.D. (mm) Nominal Mass (Kg/100mt)
MBS8 8 112/0.30 7.92 74 0.9 2.36 5.4 8.9

Features:

  • OFHC (oxygen free high conductivity copper) is employed in audio and industrial electronic units.
  • High electric and thermal conductivity. Since OFHC contains oxygen and impurities in very small quantities only, it shows excellent electric conductivity and thermal conductivity (Oxygen and impurities reduce the conductivity)
  • Excellent hydrogen enbrittlement resistance (TPC) Tough pitch copper becomes very brittle when it is heated at higher then 600C under a reduction gas atmosphere including hydrogen gas. Since OFHC contains a very low oxygen content only, it does not show any brittleness

Please Note! Austech Wire & Cable Pty. Ldt. takes every precaution to ensure that the information in this publication is correct but accepts no liability of any kind and reserves the right to change any detail in this catalogue without notification. Austech Wire & Cable

SKU Ty-ABC111203-BK-100
MPN # ABS8B100
