Simarine Pico Display Panel Mount Black & Battery Shunt 300A 2x Volt, 2x Resist, 1x Temp

Package Includes:

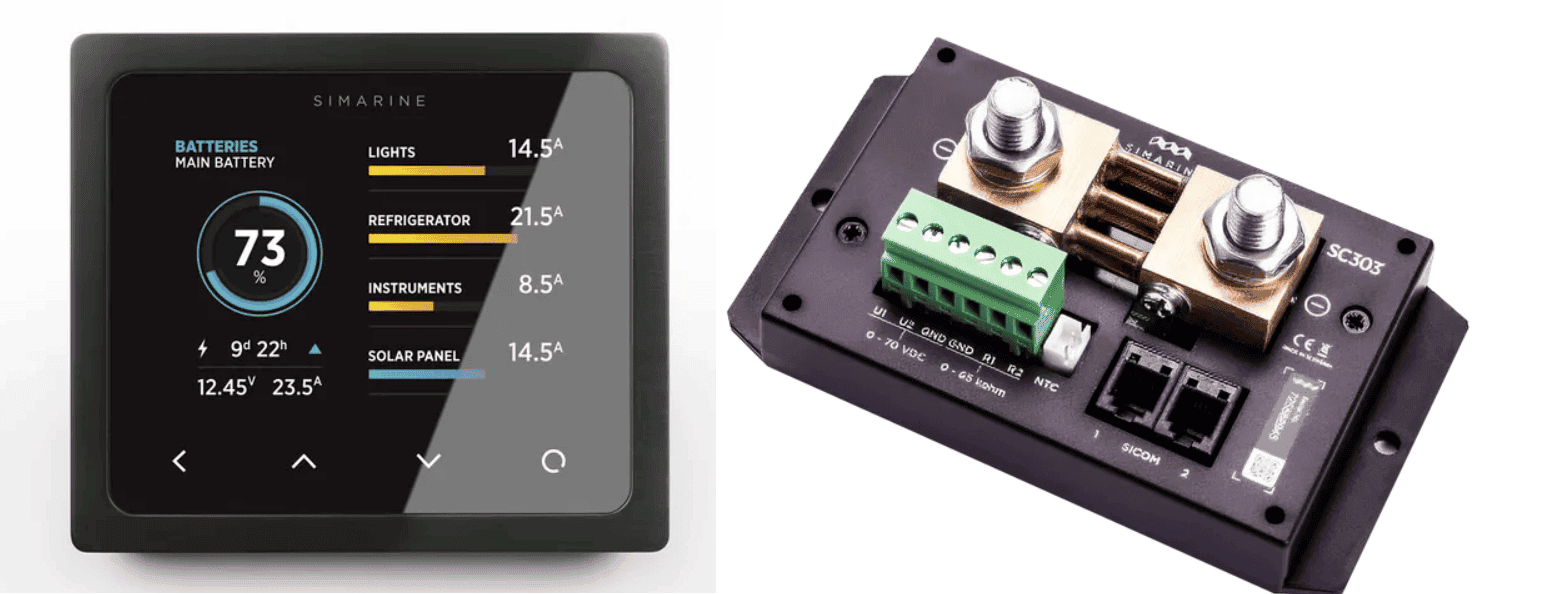

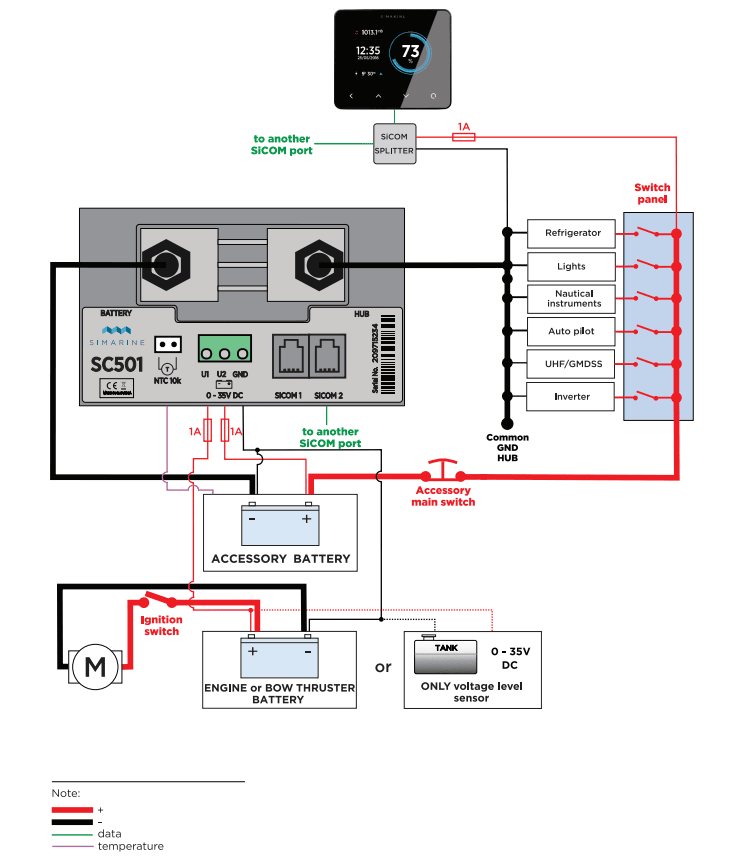

• PICO-3 Panel Mount Display Black + SICOM Splitter
• SC303 Battery Shunt 300A 2x Voltage, 2x Resistance, 1x Temperature + 4m SICOM Cable

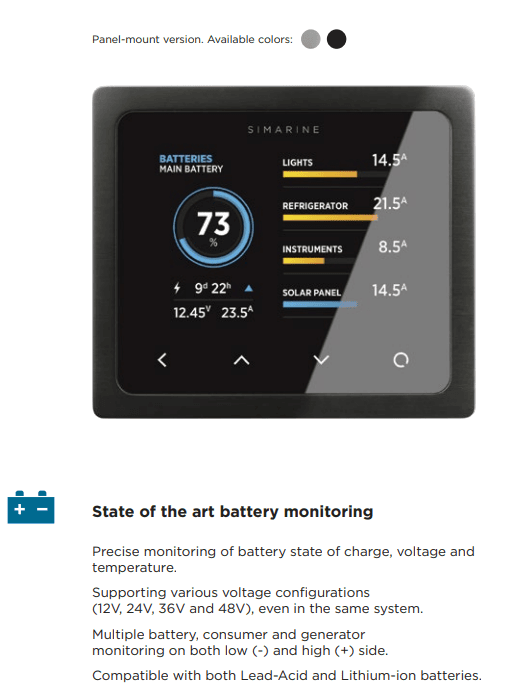

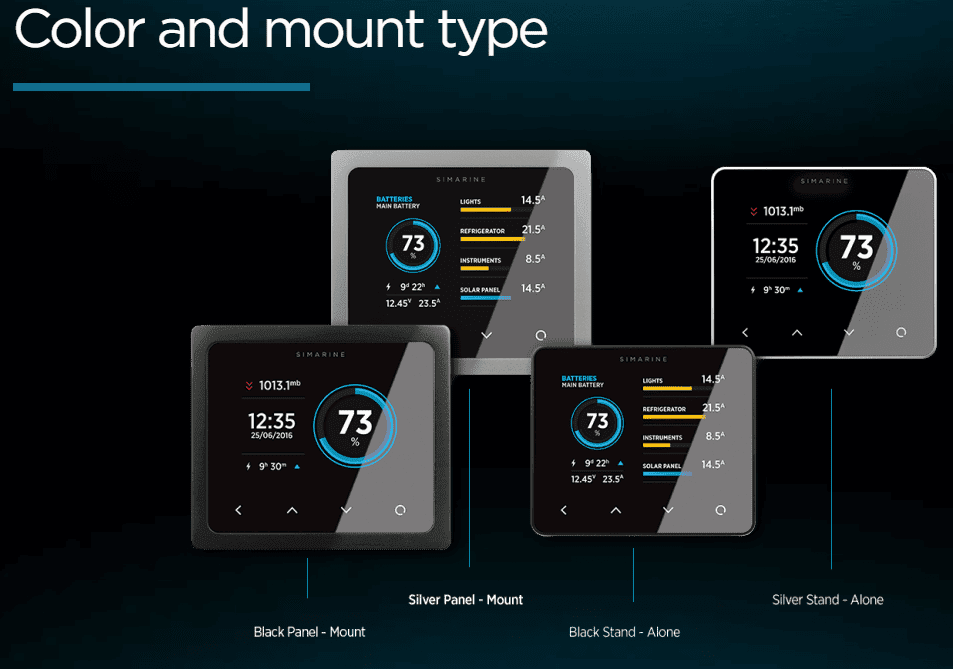

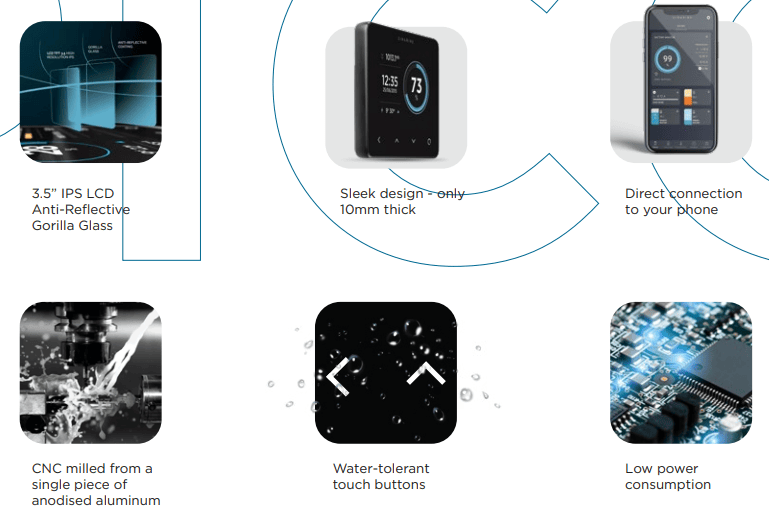

Simarine Pico Display Panel Mount Black (Pico-3)

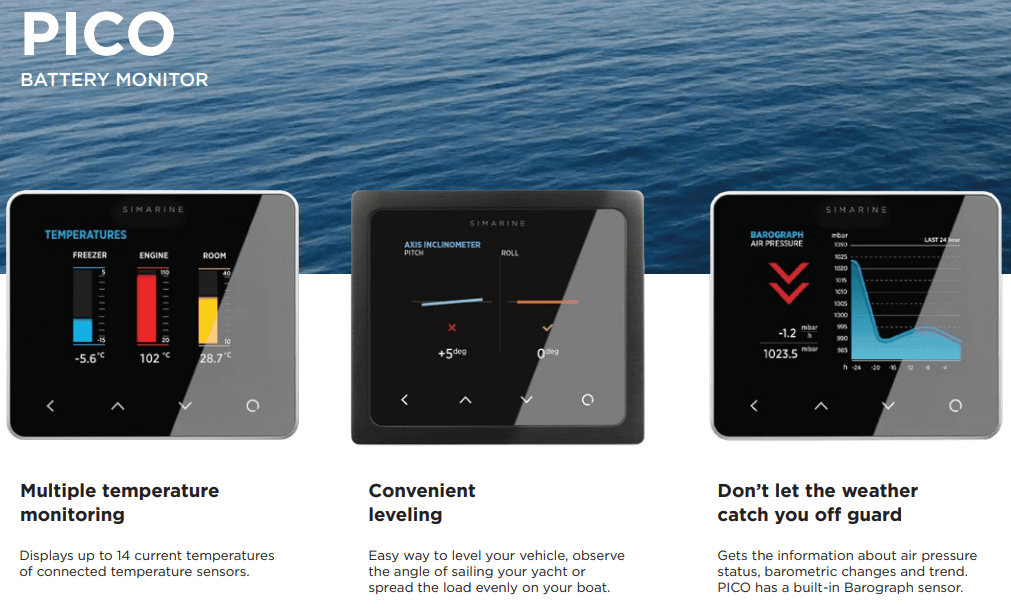

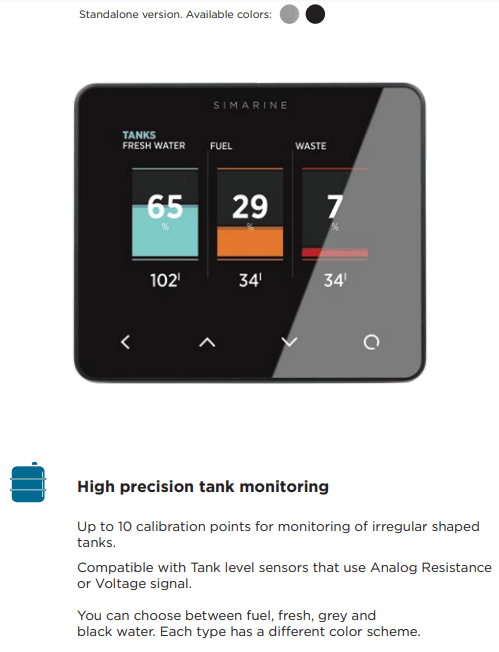

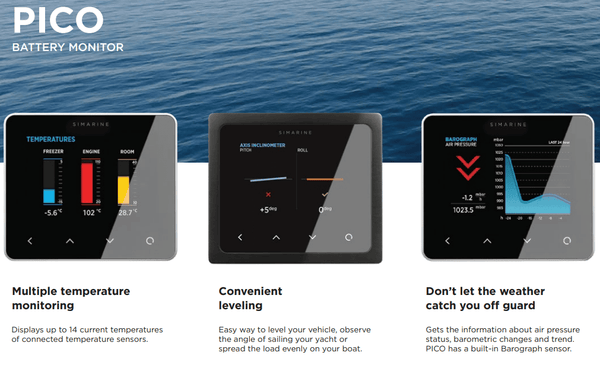

SIMARINE's advanced battery monitor for most demanding users. For up to 6 battery banks, 6 additional battery voltages, 14 tank level and 20 consumer or power generation readings. Compatible with all SIMARINE shunts and modules.

Operating

• Power source voltage range 6 - 35 V
• Temperature range -20 – +70 °C
• Power consumption at 12 V
• Operating, WiFi On, 100% illumination 90 mA
• Operating, WiFi Off, 70% illumination 35 mA
• Operating, WiFi Off, 0% illumination 18 mA
• Power Off, logger still active 5 mA

Resolution

• Current (A) ±0,01 A
• Voltage (V) ±0,01 A
• Amp hours (Ah) ±0,1 A
• SOC - Stat of Charge ( 0 - 100%) ±0,01 A
• Temperature ±0,1 °C / °F
• Voltage inputs
• Range 0 – 75 V

WIFI

• Radio Frequency Band 2,4 GHz

Dimensions (without connector)

• Standalone 89 x 84 x 10 mm
• Panel 108,5 x 94 x 10 mm

Connectivity Up to

• Batteries 6
• Shunts 24
• Temperature sensors 10
• Tank level sensors 14
• Inclinometer sensors 2
• Smartphone application 1

Logger Capacity

• up to 3 month

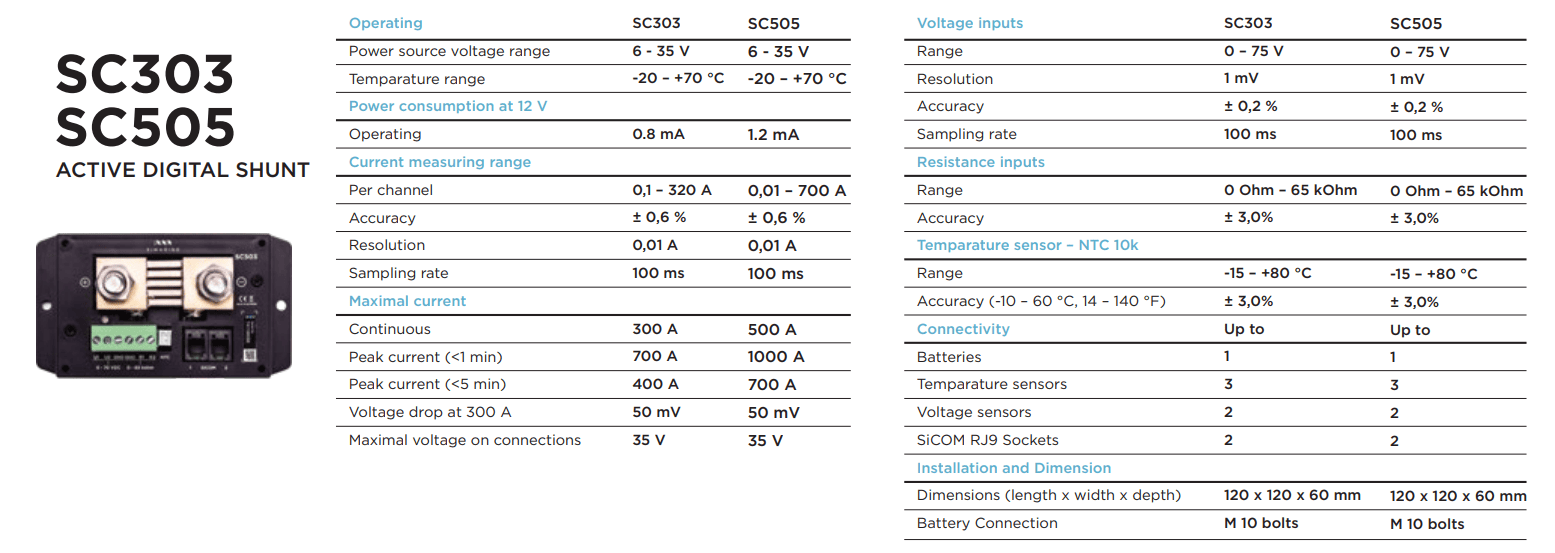

Simarine Battery Shunt 300A 2x Volt, 2x Resist, 1x Temp (SC303)

Innovative combination of shunt and tank level module. SC303 is an active combo shunt for PICO battery monitor with 2x voltages, 2x tank level or temperature, 1x socket for temperature sensor with JST connector and 1x current sensor up to 300A for up to 75V systems. It can be used for monitoring current draw of heavy consumers (inverters, bow and stern thrusters, anchor winches) and current generators (shore power chargers and solar panels). Additionally, it allows monitoring tanks for fuel, fresh and grey water.

Operating

• Power source voltage range 6 – 35 V
• Temperature range -20 – +70 °C
• Power consumption at 12 V
• Operating 0.8 mA

Current measuring range

• Per channel 0,1 – 320 A
• Accuracy ± 0,6 %
• Resolution 0,01 A
• Sampling rate 100 ms

Maximal current

• Continuous 300 A
• Peak current (<1 min) 400 A
• Peak current (<5 min) 700 A
• Voltage drop at 300 A 50 mV
• Maximal voltage on connections 35 V

Voltage inputs

• Range  0 – 75 V
• Resolution  1 mV
• Accuracy  ± 0,2 %
• Sampling rate  100 ms

Resistance inputs

• Range  0 Ohm – 65 kOhm
• Accuracy   ± 3,0%
• Temperature sensor – NTC 10k
• Range  -15 – +80 °C
• Accuracy (-10 – 60 °C, 14 – 140 °F)  ± 3,0%

Connectivity  Up to

• Batteries  1
• Temperature sensors  3
• Voltage sensors  2
• SiCOM RJ9 Sockets  2

Installation and Dimension

• Dimensions (length x width x depth)  120 x 120 x 60 mm
• Battery Connection  M 10 bolt
