Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect

Disconnects the battery from non-essential loads


Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect Main ImageVictron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect 1Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect 2Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect 3Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect 4Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect 5Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect 6Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect 7Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect 8

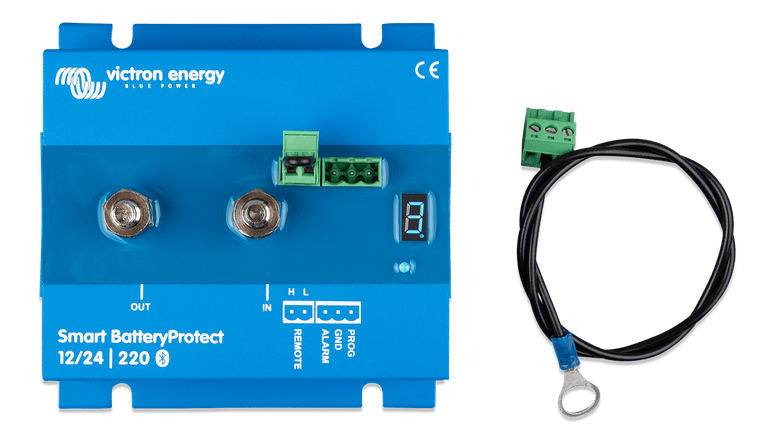

Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect Main Image

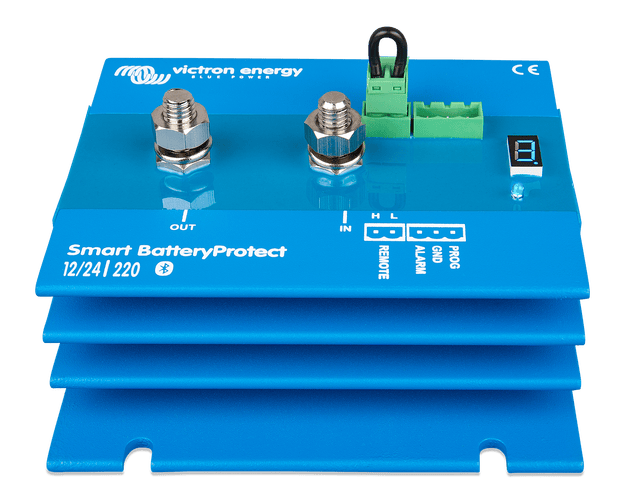

Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect 1

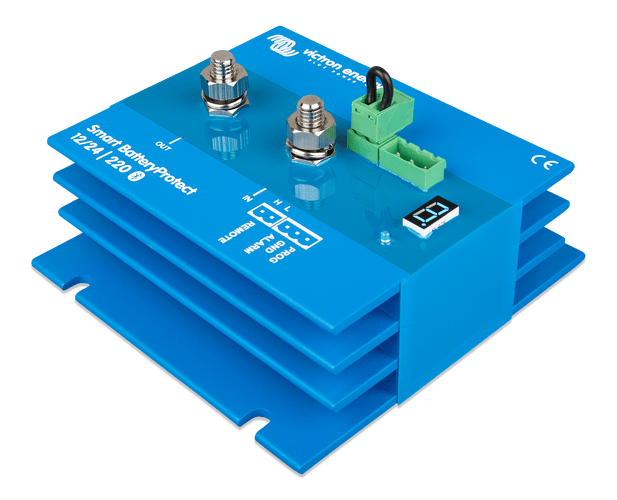

Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect 2

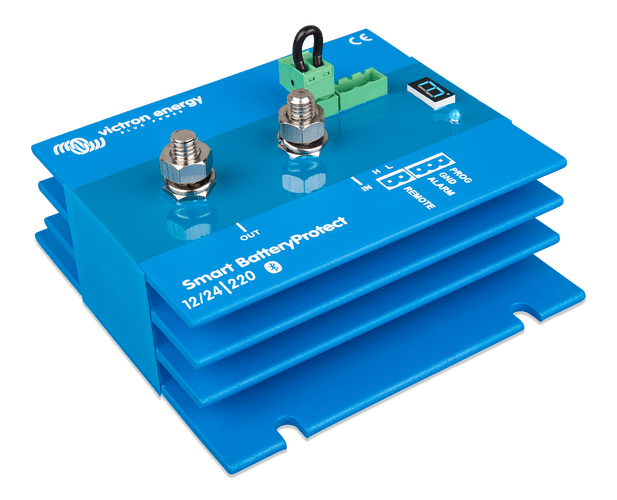

Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect 3
Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect 4
Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect 5
Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect 6

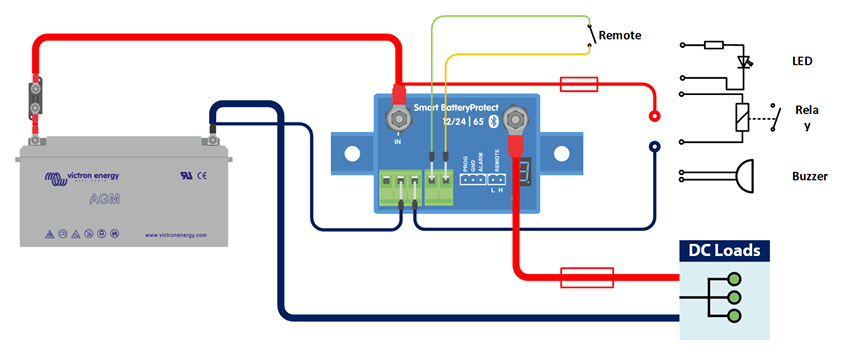

Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect 7
Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect 8
Regular price $151.48 $199.10
/
View all products from Victron

Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

13
Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect Main Image

Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect

DESCRIPTION

Victron Smart Battery Protect 12/24V-220A: Advanced Power Management with Bluetooth Connectivity

Enhanced with Bluetooth Technology

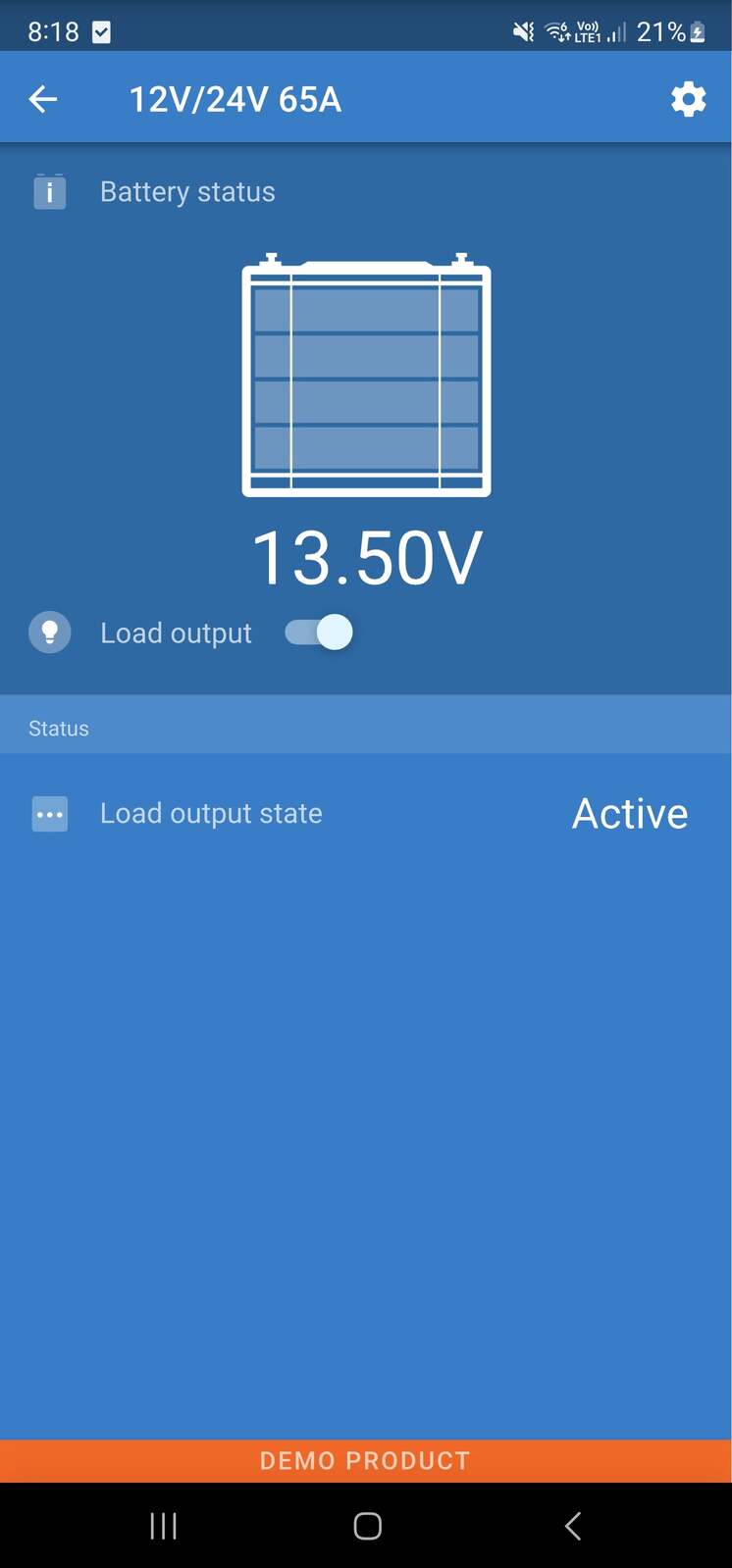

The Victron Smart Battery Protect 12/24V-220A integrates Bluetooth functionality, allowing for seamless monitoring and control directly from your device. This feature adds a layer of convenience and advanced management for your battery system.

High-Capacity Solution for Demanding Applications

The Victron Smart Battery Protect 12/24V-220A is designed to safeguard your vehicle or marine system's battery from complete discharge, ensuring its longevity. It is capable of handling significant loads, efficiently disconnecting non-essential power consumers like heavy-duty lights or large refrigeration units before they deplete the battery.

Uni-Directional Current Flow for Enhanced Safety

This model ensures safe and efficient power flow, either to a load or from a charger, but not both at the same time. This uni-directional current management is key to protecting your high-power equipment from over-voltage risks.

Smart 12/24V System Recognition and User-Friendly Operation

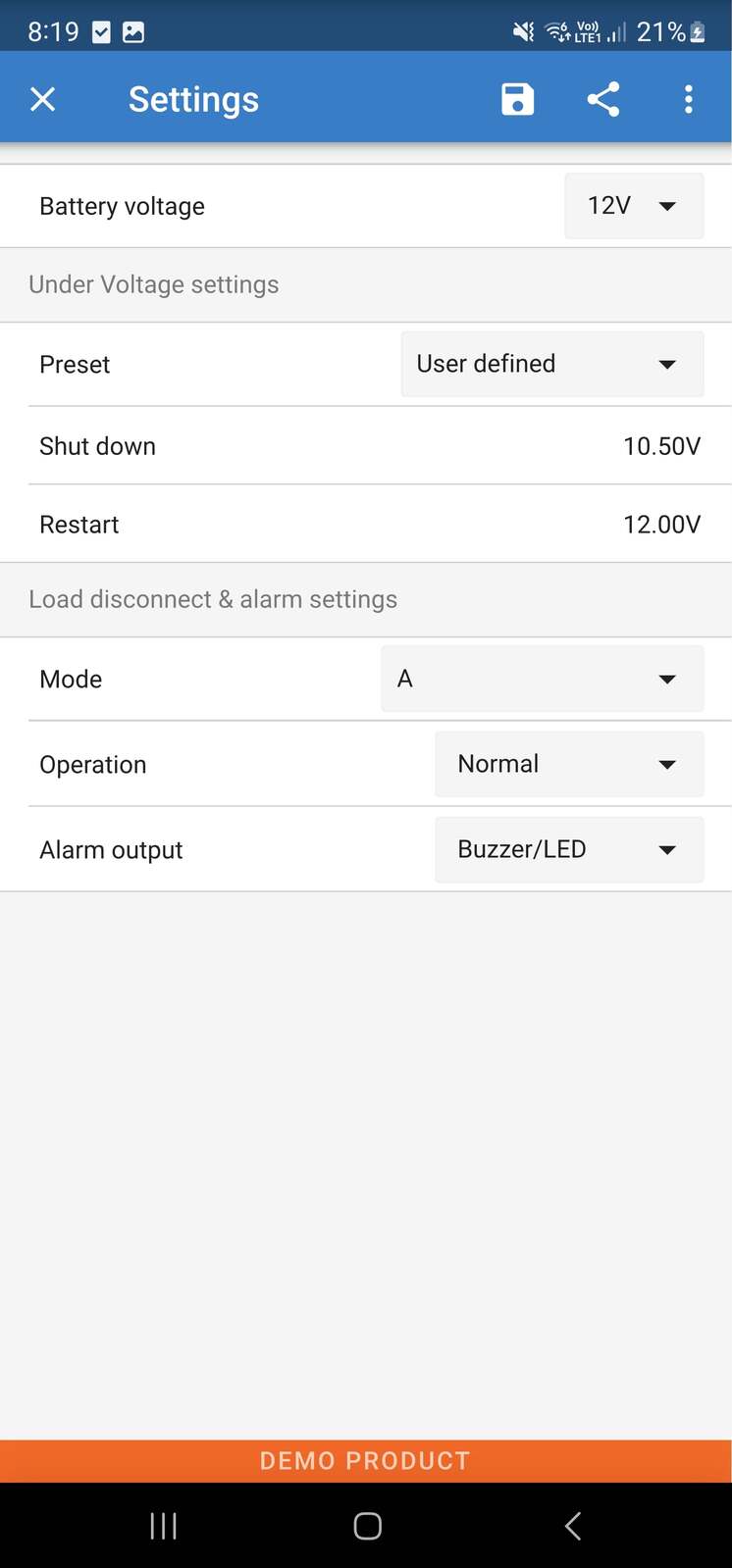

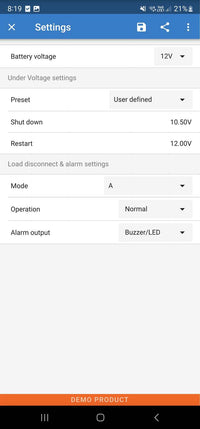

With intelligent system voltage detection, the Smart Battery Protect adjusts automatically to 12V or 24V systems. Its user-friendly interface, enhanced with Bluetooth, allows for easy engagement and disengagement settings, viewable on a clear display.

Optimized for High-Power Systems and Lithium Batteries

The device's 220A capacity makes it ideal for larger systems, and it includes a special mode for Li-ion batteries, enabling control via the VE.Bus BMS. It also functions as a charge interrupter between a battery charger and Li-ion battery setups.

Efficient Power Management

With ultra-low energy consumption, the Smart Battery Protect is particularly effective in reducing energy loss, especially critical in large-scale applications and after low voltage shutdowns in Li-ion batteries.

Robust Protection Features

Equipped with over-voltage protection and MOSFET switches, the device provides safe and reliable operation, preventing sparks and ensuring the safety of your systems.

Convenient Remote Switch Capabilities

Utilize the integrated Bluetooth functionality for easy remote operation, adding flexibility and convenience to managing various devices within your system.

Intelligent Alarm and Load Control

The Smart Battery Protect's advanced alarm and load control system ensures efficient power management, avoiding false alarms and maintaining seamless operation.

Opt for the Victron Smart Battery Protect 12/24V-220A for a superior battery management experience in high-demand vehicle and marine systems, where power, control, and connectivity are paramount.

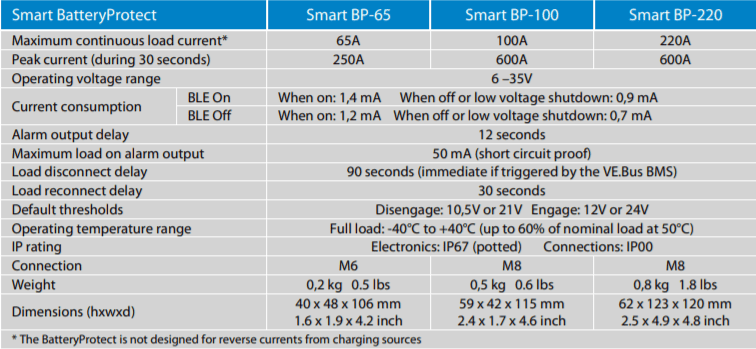

SPECIFICATIONS

Specifications

Model SPB 220
Maximum continuous load current* 220 A
Peak current (during 30 seconds) 600 A
Operating voltage range 6 –35 V
BLE On When on: 1.4 mA When off or low voltage shutdown: 0.9 mA
Current consumption BLE Off When on: 1.2 mA When off or low voltage shutdown: 0.7 mA
Alarm output delay 12 seconds
Maximum load on alarm output 50 mA (short circuit proof)
Load disconnect delay 90 seconds (immediate if triggered by the VE.Bus BMS)
Load reconnect delay 30 seconds
Default thresholds Disengage: 10.5 V or 21 V Engage: 12 V or 24 V
Operating temperature range Full load: -40°C to +40°C (up to 60% of nominal load at 50°C)
IP rating Electronics: IP67 (potted) Connections: IP00
Connection M8
Mounting Torque 9 Nm
Weight 0.8 kg 1.8 lbs

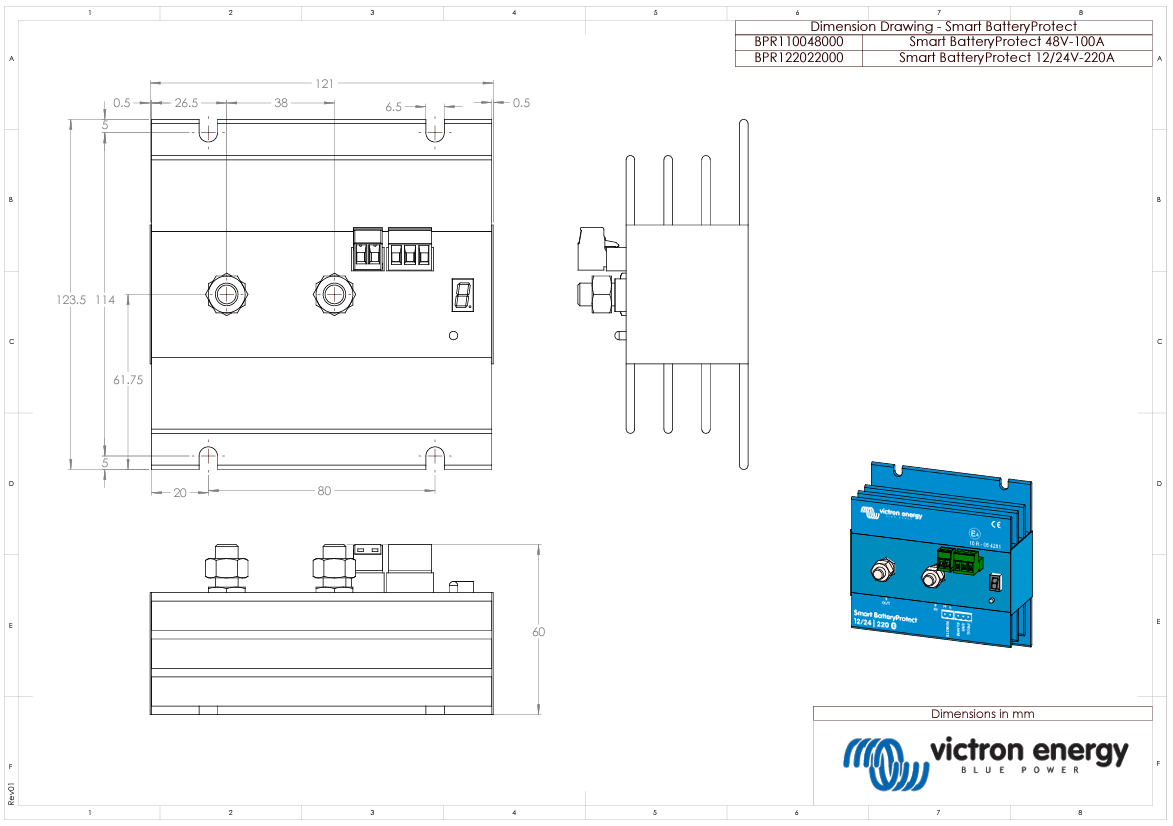

Dimensions (hxwxd) 60 x 123 x 121 mm 2.4 x 4.8 x 4.8 inch

* The BatteryProtect is not designed for reverse currents from charging sources


SKU: VIC-BPR122022000
Barcode: 8719076041269
Model #: BPR122022000
MPN: BPR122022000

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
