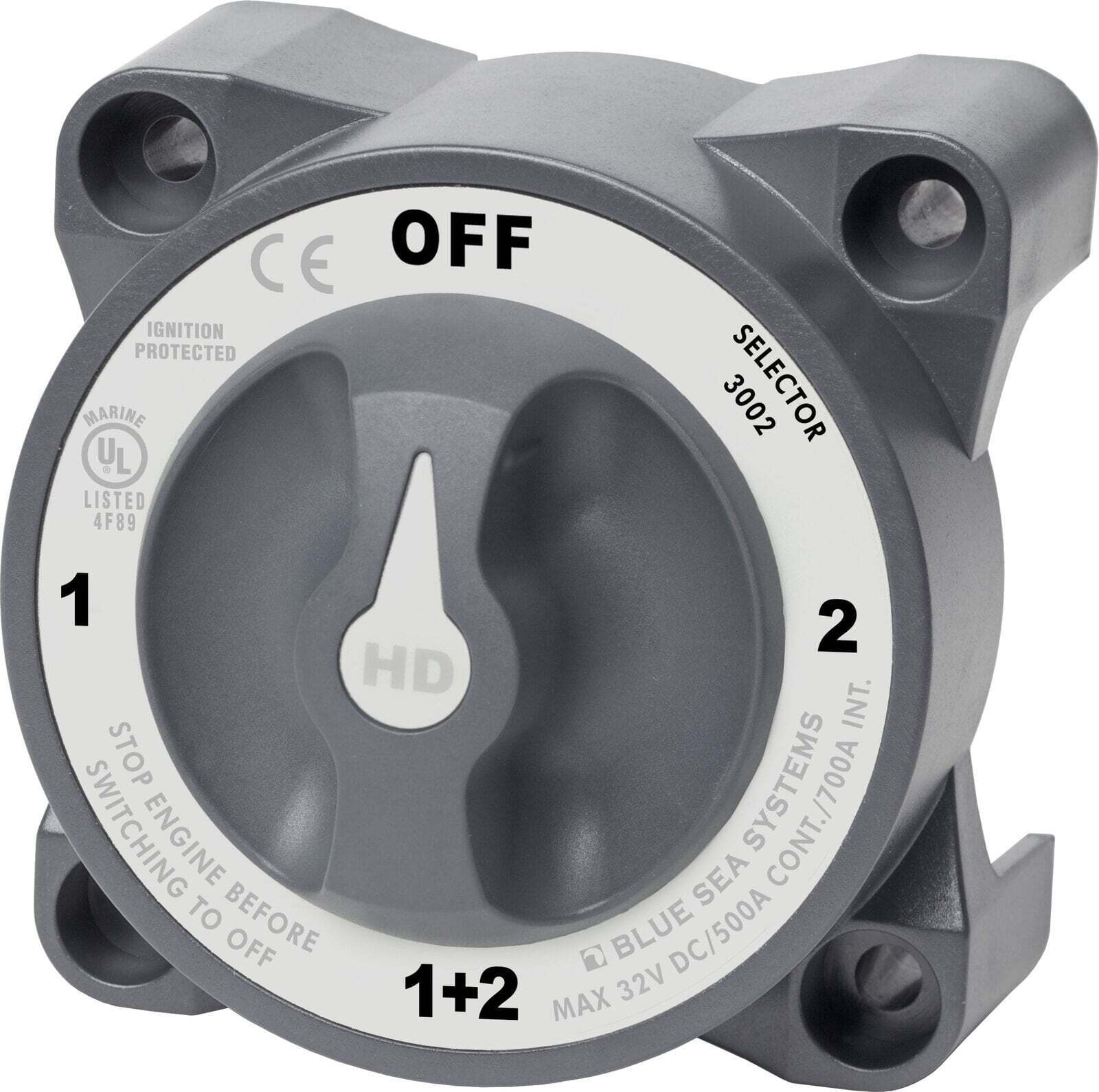

Blue Sea HD-Series Heavy Duty Selector Battery Switch 500A
Blue Sea HD-Series Heavy Duty Selector Battery Switch 500A
4 Position OFF/1/2/1+2
Regular price
$140.00
$165.00
15% Off
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
3
DESCRIPTION
HD-Series Heavy Duty Selector Battery Switch- 3002
- Switches isolated battery banks to all loads or combines battery banks to all loads
- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected—safe for installation aboard gasoline powered boats

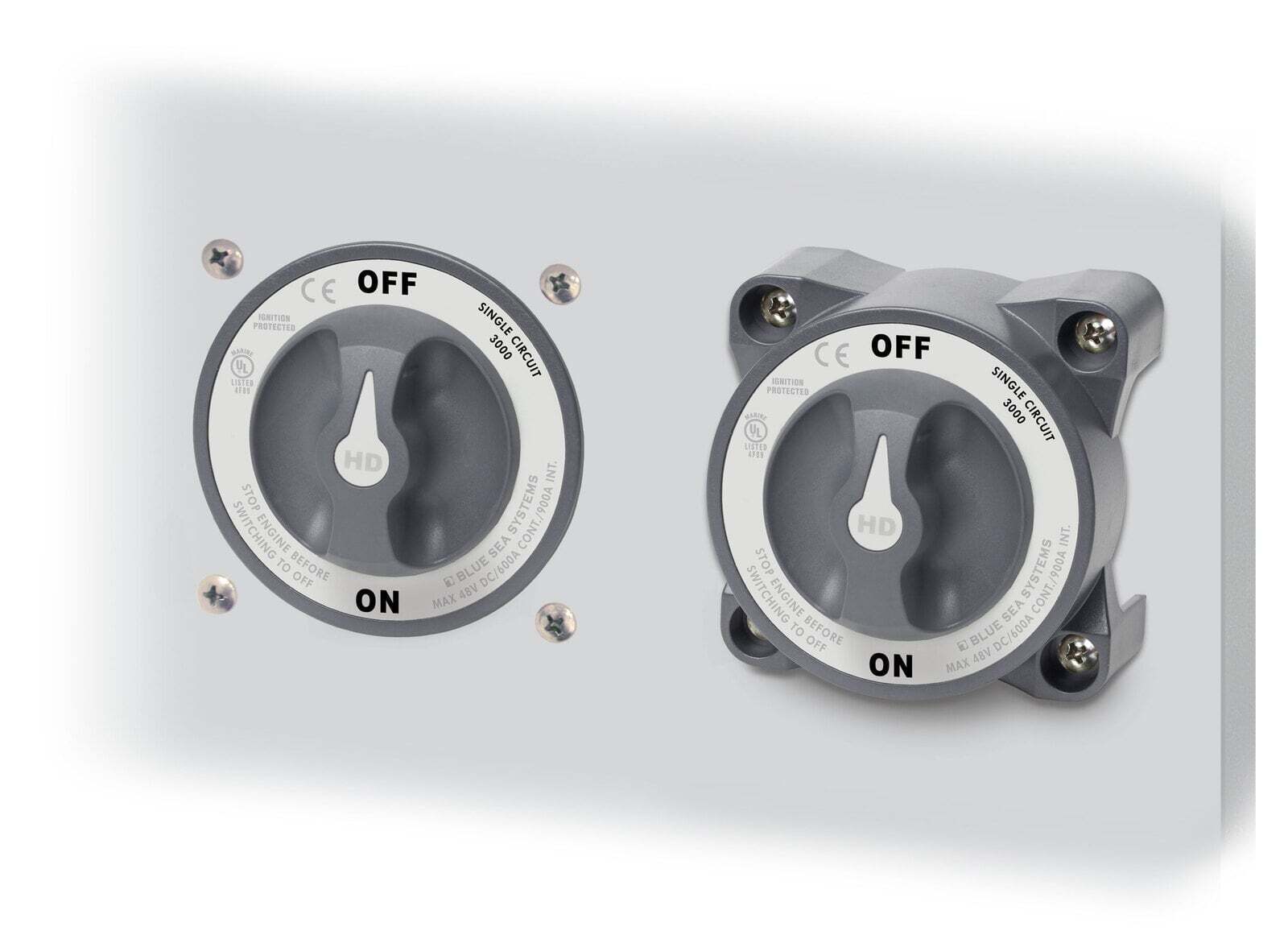

- Case design allows surface or rear panel mounting

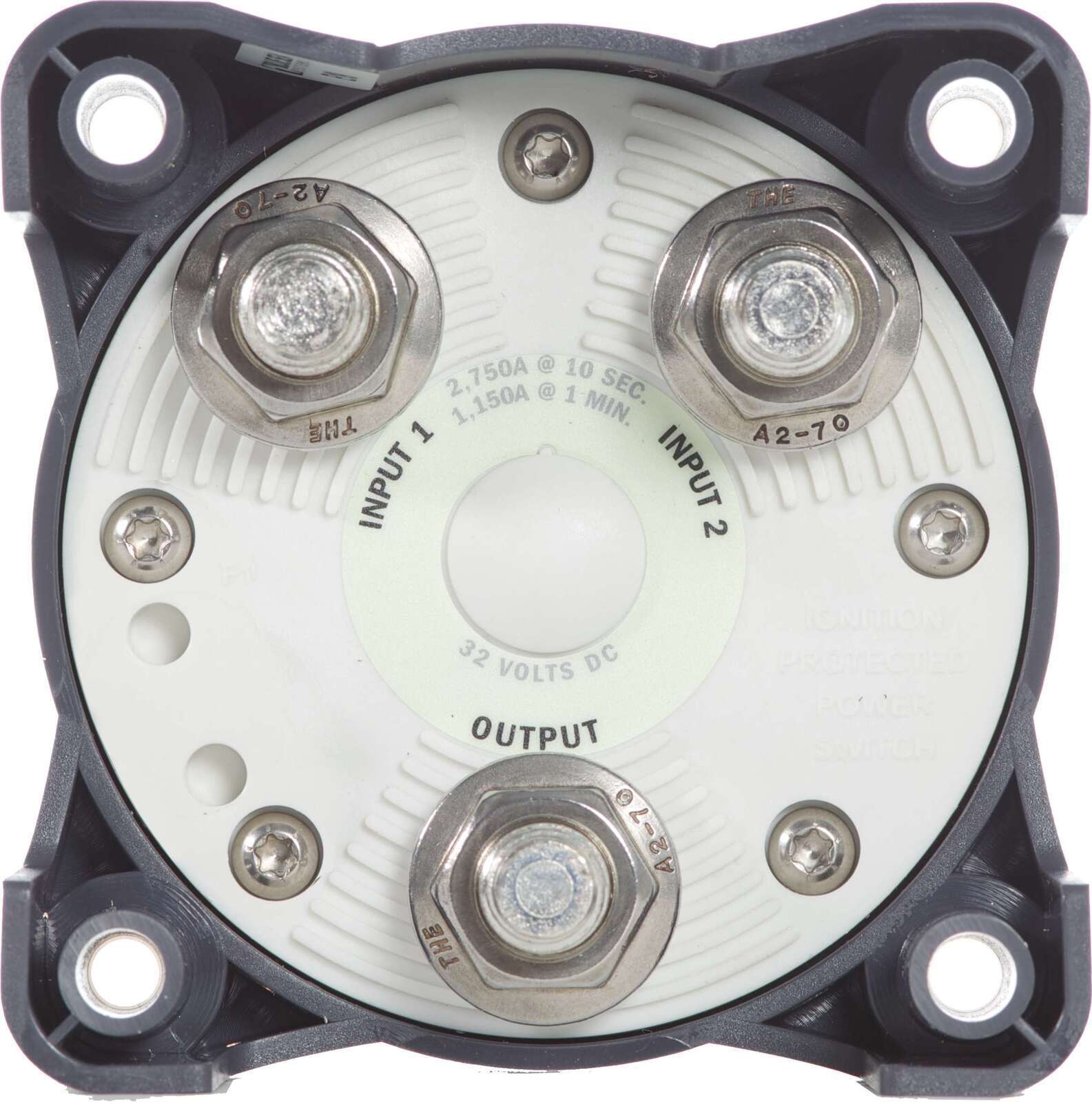

- Accepts two 4/0 AWG (95mm²) battery cables

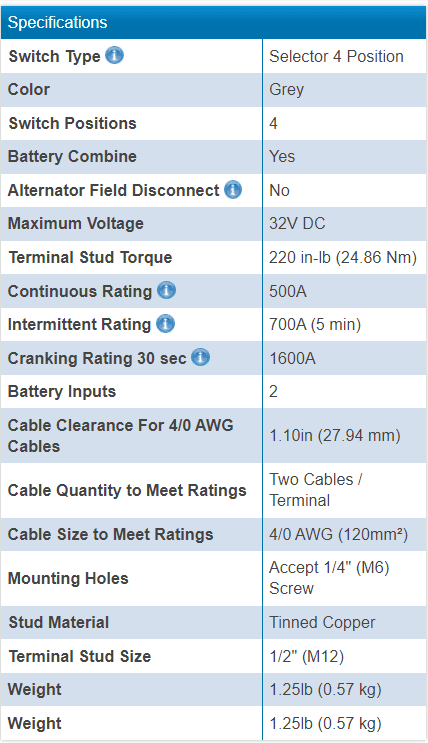

SPECIFICATIONS
| Specifications | |
|---|---|
Switch Type  | Selector 4 Position |
| Color | Grey |
| Switch Positions | 4 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque | 220 in-lb (24.86 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating 30 sec | 1600A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Quantity to Meet Ratings | Two Cables / Terminal |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Stud Material | Tinned Copper |
| Terminal Stud Size | 1/2" (M12) |
| Weight | 1.25lb (0.57 kg) |
| SKU: | BS-3002B |
| Barcode: | 632085030025 |
| Model #: | BS-3002B |
| MPN: | BS-3002B |
