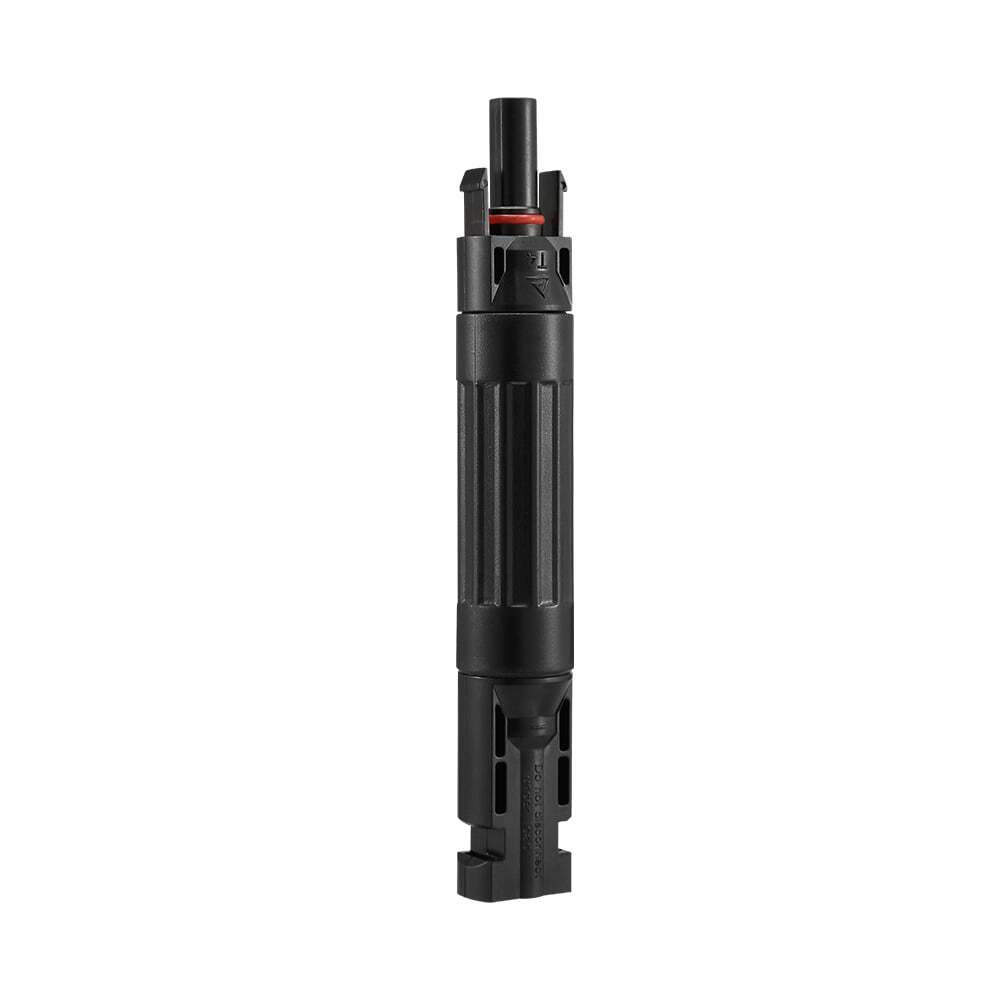

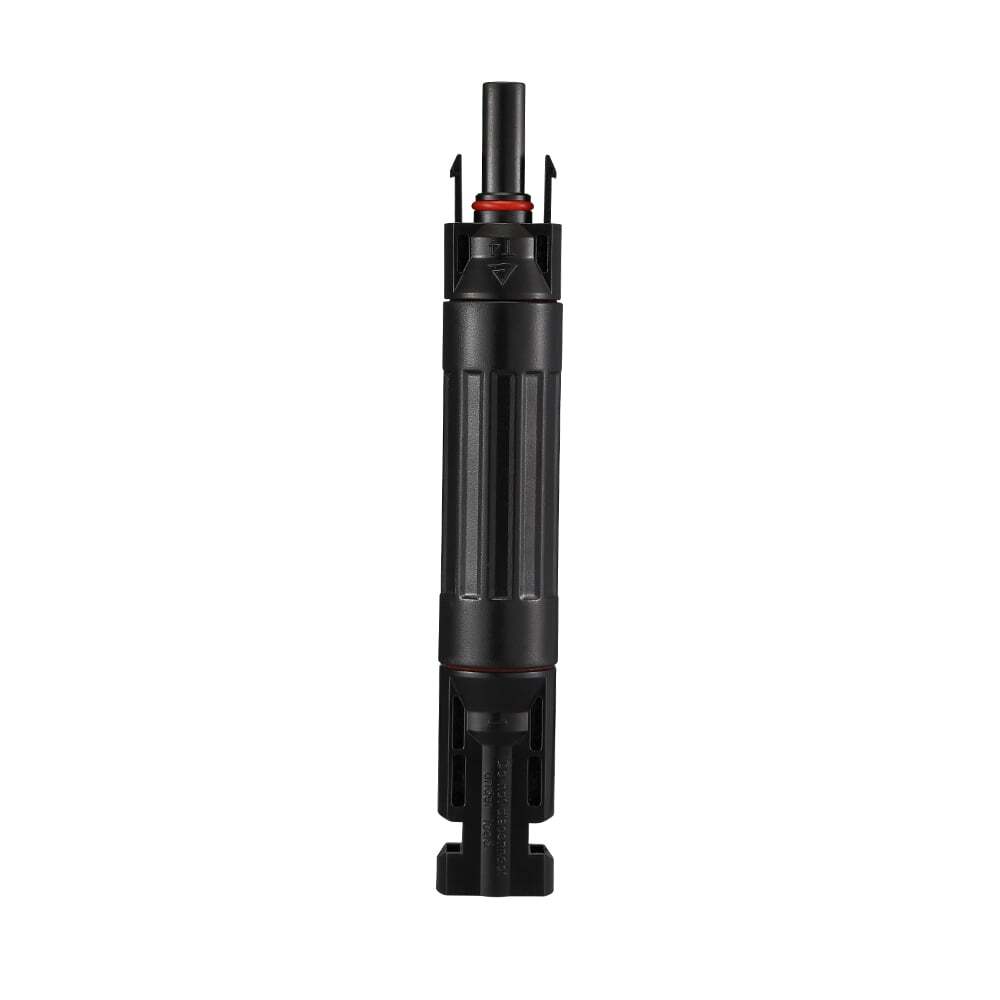

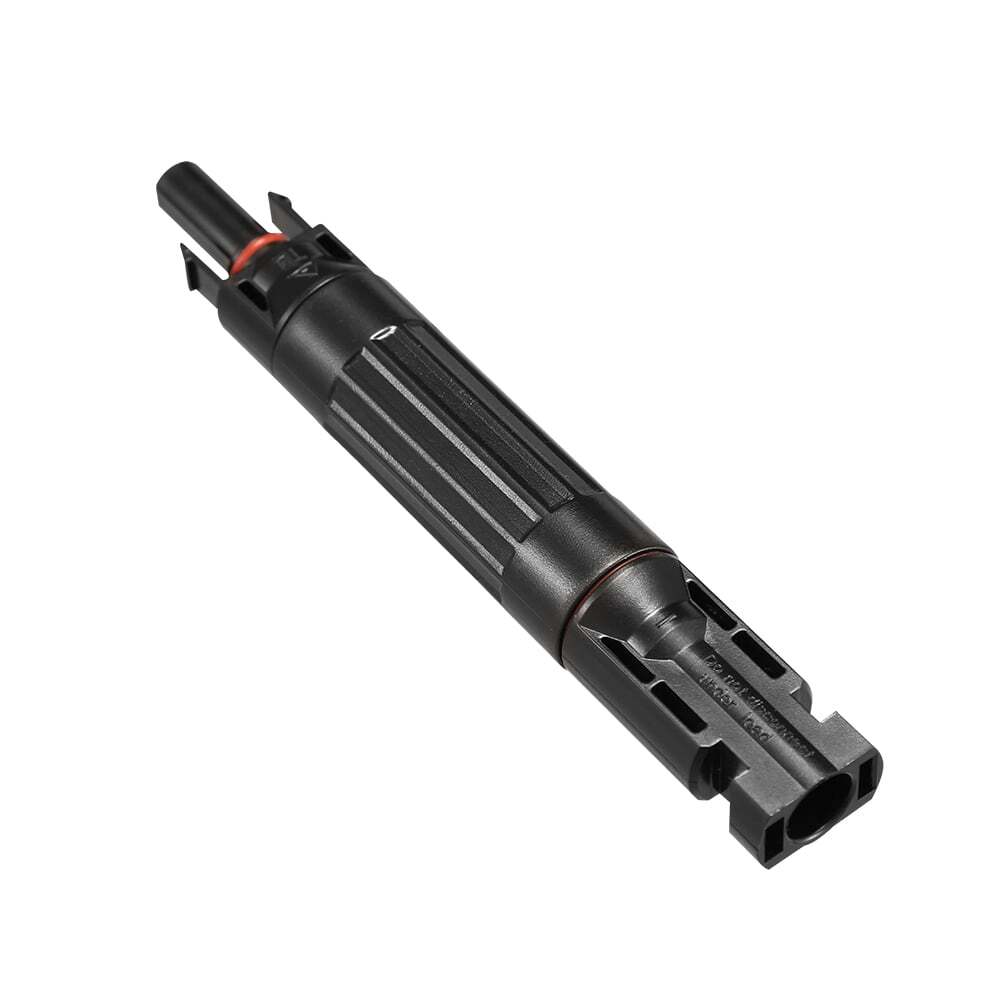

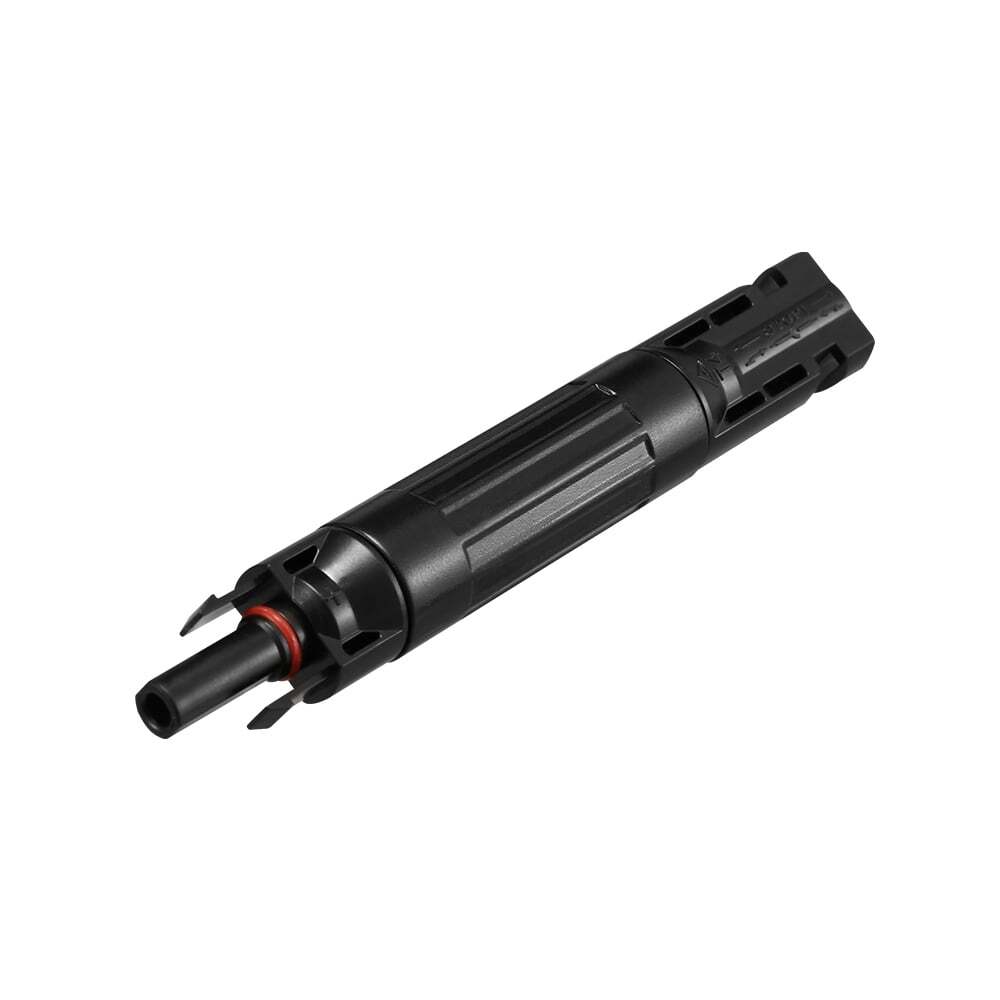

Exotronic 15A In-line Fuse Solar Connector
Exotronic 15A In-line Fuse Solar Connector
Regular price
$11.90
$19.90
40% Off
View all products from Exotronic
Guaranteed Safe and Secure Checkout
1584
DESCRIPTION
Enhance Your Solar System with the Exotronic 15A In-line Solar Fuse Connector
Upgrade your solar installations with our In-line Solar Fuse Connector, an essential component for any efficient and safe solar power system. Designed for simplicity and durability, this connector is an ideal choice for both professional and DIY solar setups. These connectors are compatible with MC4 Connectors.
Effortless Installation and Reliable Performance
Experience a hassle-free installation process with our user-friendly Plug & Play design. This connector is not only easy to integrate into your existing solar array but also ensures a secure and stable connection, vital for uninterrupted solar power generation.
Built for the Outdoors
Crafted to withstand the challenges of outdoor environments, our connector features a waterproof build, ensuring consistent operation even in adverse weather conditions. This durability makes it a trustworthy choice for all types of solar applications, from caravan rooftop arrays to larger industrial solar installations.
Safety and Quality Assured
With safety at the forefront, this connector is built using high-quality materials that ensure not only efficient energy transfer but also provide protection against environmental hazards. Its robust construction and safety features make it a reliable component in maintaining the integrity of your solar power system.
SKU: Exo-15A-SC-Fuse
SPECIFICATIONS
Specifications
| Specification | Details |
|---|---|
| Waterproof and Dustproof (Mated) | IP67 |
| Waterproof and Dustproof (Unmated) | IP2X |
| Rated Voltage | 1000V DC (IEC) |
| Contact Material | Tinned Copper |
| Insulation Material | PC/PPO |
| Contact Material | Copper Alloy, Tin Plated |
| Temperature Range | –40°C to +90°C (IEC) |
| Upper Temperature Limit | +105°C (IEC) |
| Degree of Protection (Mated) | IP67 |
| Degree of Protection (Unmated) | IP2X |
| Flame Class | UL94-V0 |
| Locking System | Snap-in |
| Contact Resistance of Plug Connectors | 0.5mΩ |
| Safety Class | II |
| Test Voltage | 6kV (50Hz, 1min) |
| Salt Mist Spray Test, Severity Degree | 5 (according to IEC 60068-2-52) |
| Rated Current | 15A |
| Connector System | Ø 4 mm |
| SKU: | Exo-15A-SC-Fuse |
| Barcode: | 9361780000000 |
| Model #: | Exo-15A-SC-Fuse |
| MPN: | Exo-15A-SC-Fuse |
